Catalog 0617-2/USA

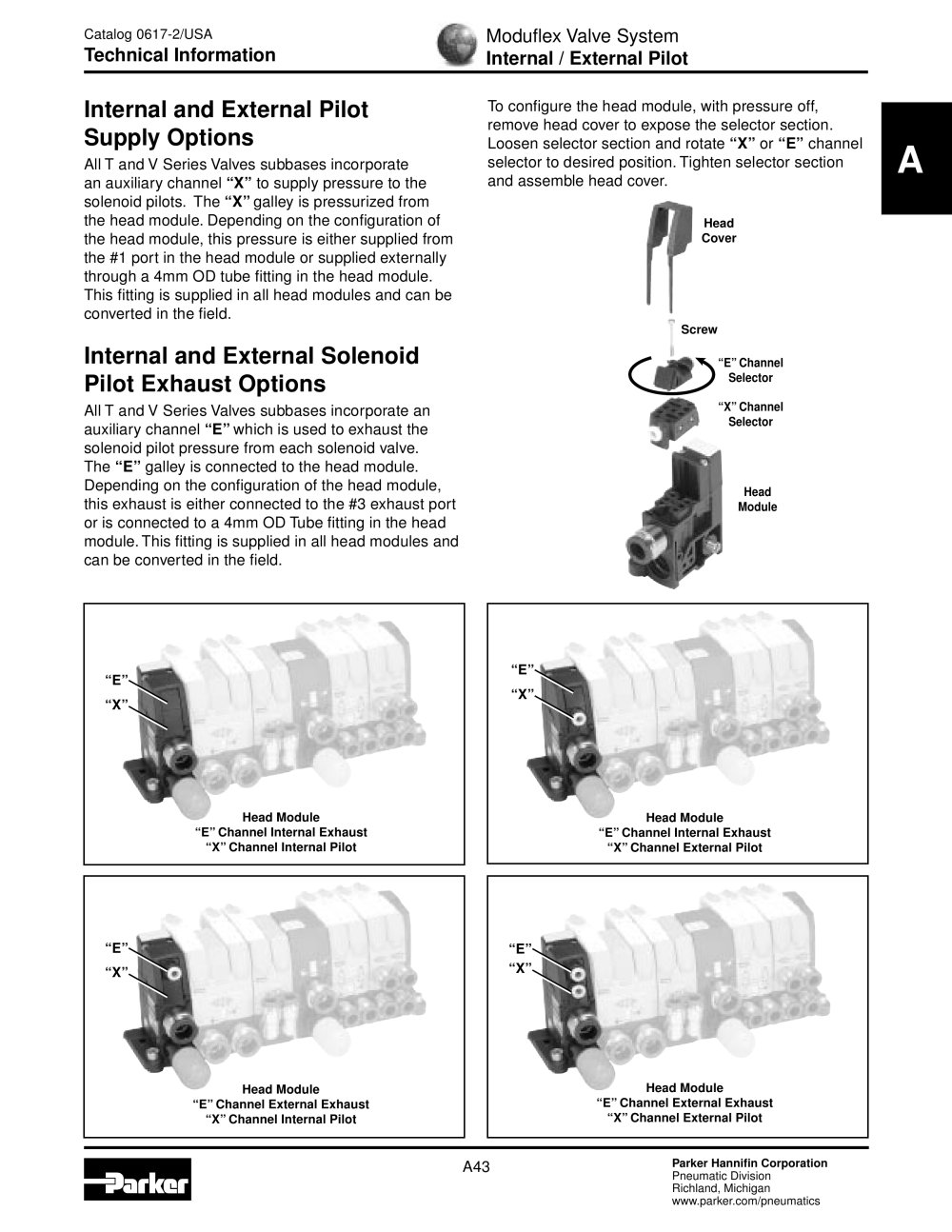

i Moduflex Valve System Internal / External Pilot

To configure the head module, with pressure off, remove head cover to expose the selector section. Loosen selector section and rotate "X" or "E" channel selector to desired position. Tighten selector section and assemble head cover.

All T and V Series Valves subbases incorporate an auxiliary channel "X" to supply pressure to the solenoid pilots. The "X" galley is pressurized from the head module. Depending on the configuration of the head module, this pressure is either supplied from the #1 port in the head module or supplied externally through a 4mm OD tube fitting in the head module. This fitting is supplied in all head modules and can be converted in the field.

All T and V Series Valves subbases incorporate an auxiliary channel "E" which is used to exhaust the solenoid pilot pressure from each solenoid valve. The "E" galley is connected to the head module. Depending on the configuration of the head module, this exhaust is either connected to the #3 exhaust port or is connected to a 4mm OD Tube fitting in the head module. This fitting is supplied in all head modules and can be converted in the field.

Pneumatic Division Richland, Michigan www.parker.com/pneumatics

A43
