| Catalog PCC-4/USA Features | |||||||||||||

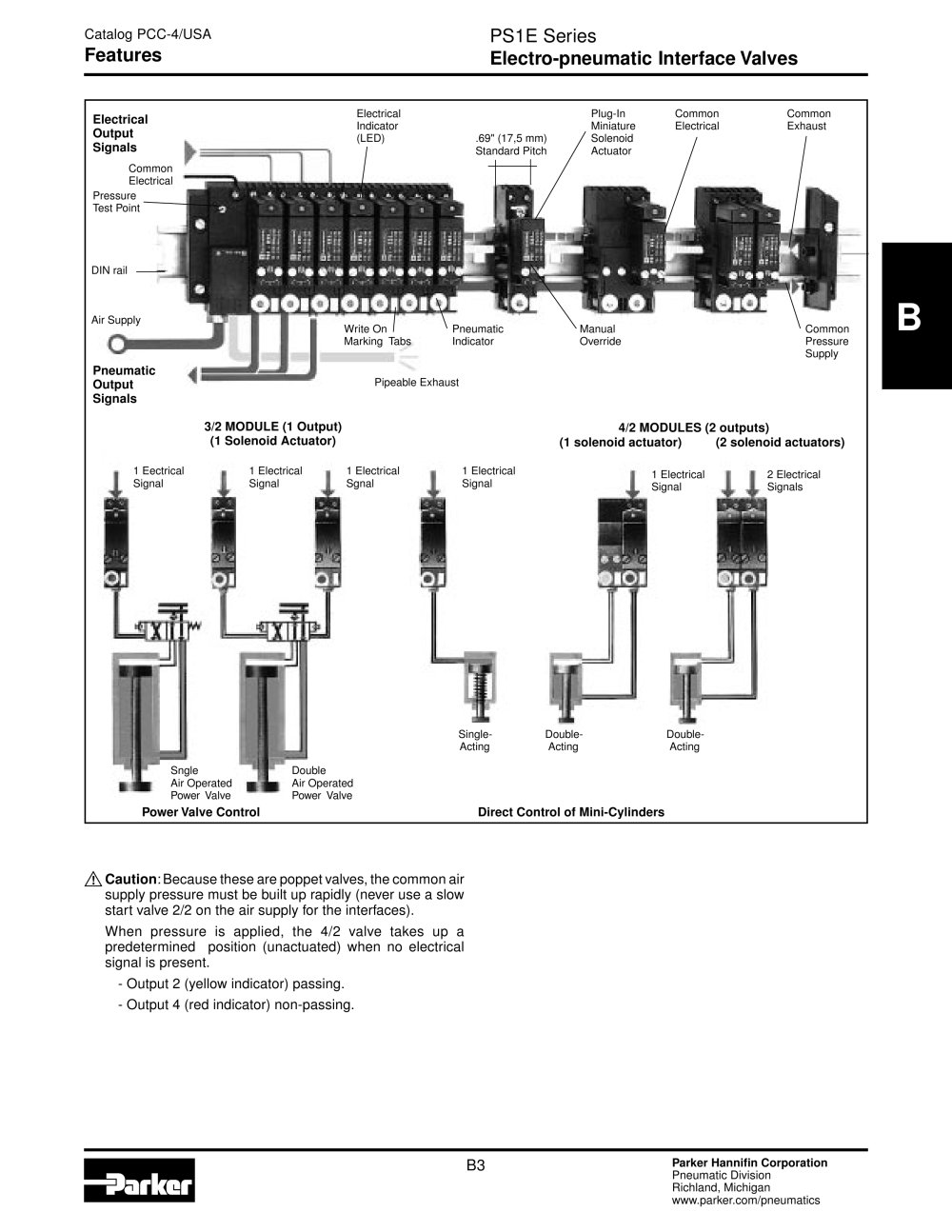

| PS1E Series Electro-pneumatic Interface Valves | |||||||||||||
| B | |||||||||||||
| A\ Caution: Because these are poppet valves, the common air supply pressure must be built up rapidly (never use a slow start valve 2/2 on the air supply for the interfaces). When pressure is applied, the 4/2 valve takes up a predetermined position (unactuated) when no electrical signal is present. - Output 2 (yellow indicator) passing. - Output 4 (red indicator) non-passing. | |||||||||||||
| Parker Hannifin Corporation Pneumatic Division Richland, Michigan www.parker.com/pneumatics | |||||||||||||
| B3 | |||||||||||||
