Catalog Tele-E/USA

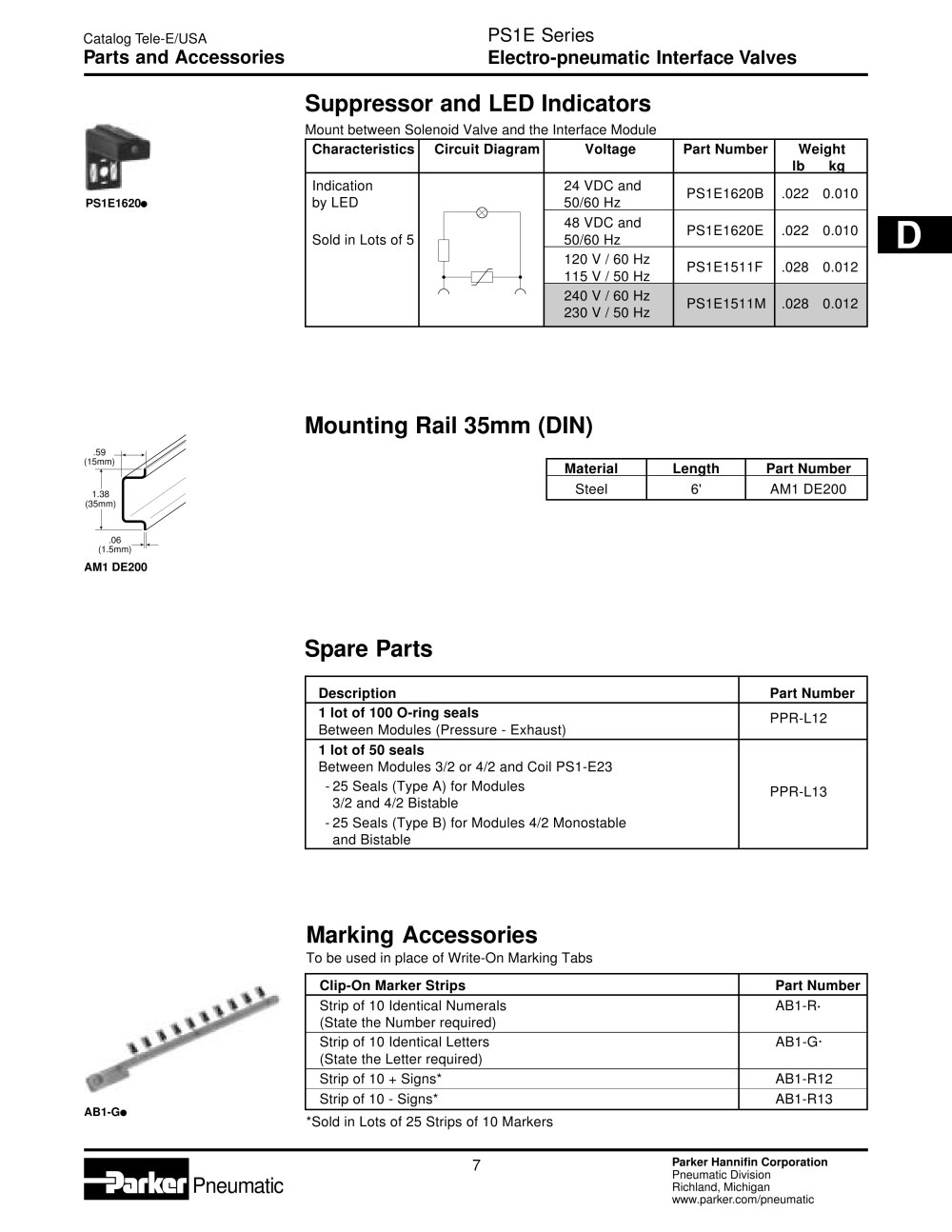

PS1E Series Parts and Accessories Electro-pneumatic Interface Valves

Suppressor and LED Indicators

Mount between Solenoid Valve and the Interface Module CharacteristicsCircuit DiagramVoltagePart NumberWeight lbkg Indication24 VDC andPS1E1620B.0220.010
����� by LED50/60 Hz48 VDC andPS1E1620E.0220.010 Sold in Lots of 550/60 Hz120 V / 60 HzPS1E1511F.0280.012

Pneumatic Control Components - 15060 D

115 V / 50 Hz240 V / 60 HzPS1E1511M.0280.012230 V / 50 Hz

Mounting Rail 35mm (DIN)

.59(15mm)1.38(35mm).06 MaterialLengthPart Number Steel6'AM1 DE200
( 1.5mm ) AM1 DE200 PS1E1620

Spare Parts

DescriptionPart Number1 lot of 100 O-ring seals PPR-L12 Between Modules (Pressure - Exhaust) 1 lot of 50 seals Between Modules 3/2 or 4/2 and Coil PS1-E23-25 Seals (Type A) for ModulesPPR-L133/2 and 4/2 Bistable-25 Seals (Type B) for Modules 4/2 Monostableand Bistable

Marking Accessories

To be used in place of Write-On Marking Tabs Clip-On Marker StripsPart Number Strip of 10 Identical NumeralsAB1-R· (State the Number required)Strip of 10 Identical LettersAB1-G· (State the Letter required) Strip of 10 + Signs*AB1-R12Strip of 10 - Signs*AB1-R13*Sold in Lots of 25 Strips of 10 Markers
AB1-G �����

7

Parker Hannifin Corporation

Pneumati c

Pneumatic DivisionRichland, Michigan www.parker.com/pneumatic
