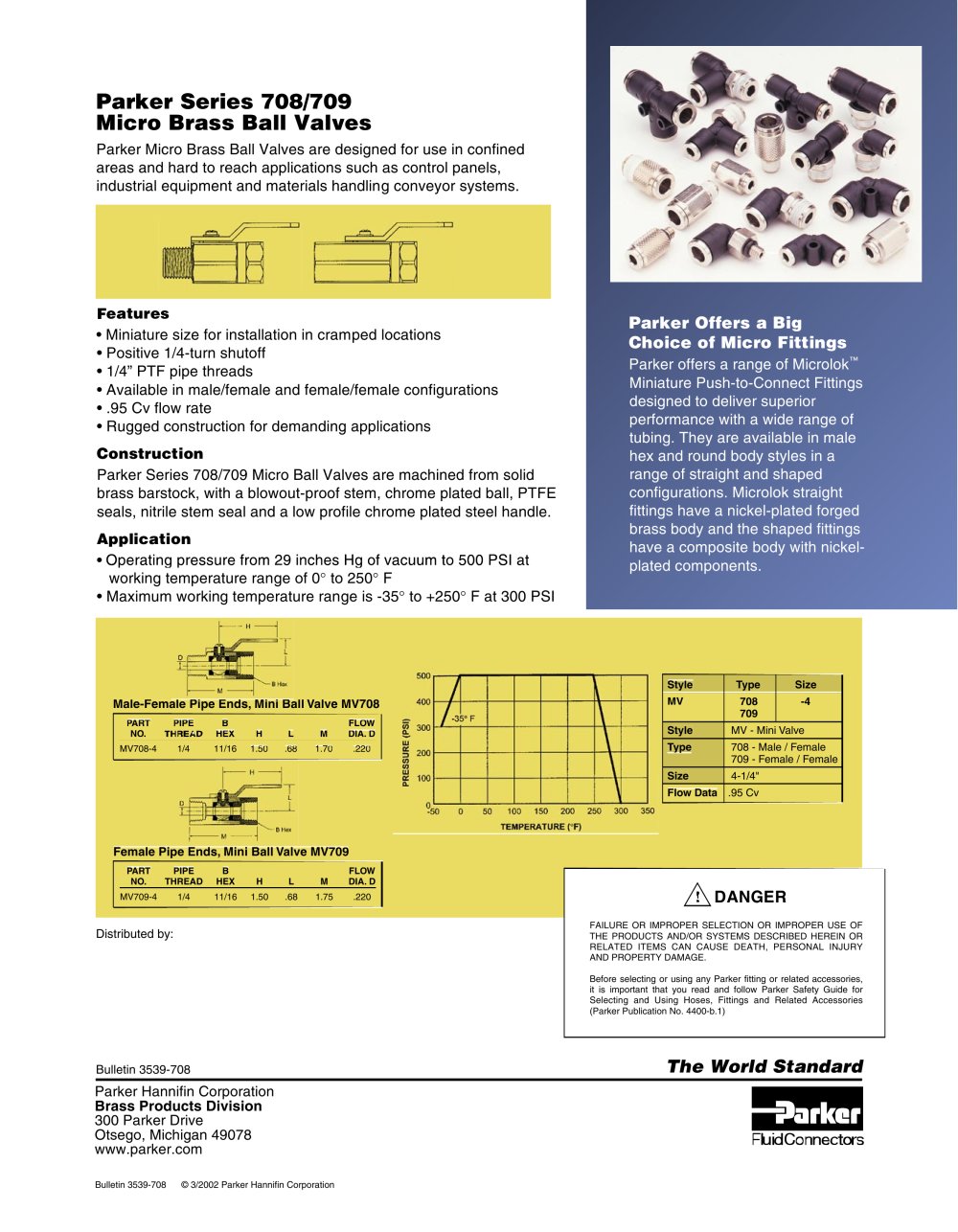

Parker Series 708/709 Micro Brass Ball Valves

Parker Micro Brass Ball Valves are designed for use in confinedareas and hard to reach applications such as control panels, industrial equipment and materials handling conveyor systems. Construction Feature s • Miniature size for installation in cramped locations• Positive 1/4-turn shutoff • 1/4” PTF pipe threads • Available in male/female and female/female configurations • .95 Cv flow rate • Rugged construction for demanding applications Parker Series 708/709 Micro Ball Valves are machined from solid brass barstock, with a blowout-proof stem, chrome plated ball, PTFE seals, nitrile stem seal and a low profile chrome plated steel handle.

Parker Offers a Big Choice of Micro Fittings

Parker offers a range of Microlok

™

Miniature Push-to-Connect Fittings designed to deliver superior performance with a wide range of tubing. They are available in male hex and round body styles in a range of straight and shaped configurations. Microlok straight fittings have a nickel-plated forged brass body and the shaped fittings have a composite body with nickel- plated components. Application • working temperature range of 0 ° to 25 ° F• Maximum working temperature range is -3 5 ° to +250 ° F at 300 PSI

Style Type Size

Male-Female Pipe Ends, Mini Ball Valve MV708

MV 708 -4 709

PART PIPE B FLOW NO. HEX H L M DIA.D

Style MV - Mini Valve

MV708-4 1/4 11/16 1.50 .68 1.70 .220

Type 708 - Male / Female 709 - Female / Female Size 4-1/4" Flow Data .95 Cv

Female Pipe Ends, Mini Ball Valve MV709

PARTNO. PIPETHREAD BHEX H L M FLOWDIA. D MV709-4 1/4 11/16 1.50 .68 1.75 .220
