OIL-Xplus Multi-Ported Compressed Air Filter
2Pages

{{requestButtons}}

Catalog excerpts

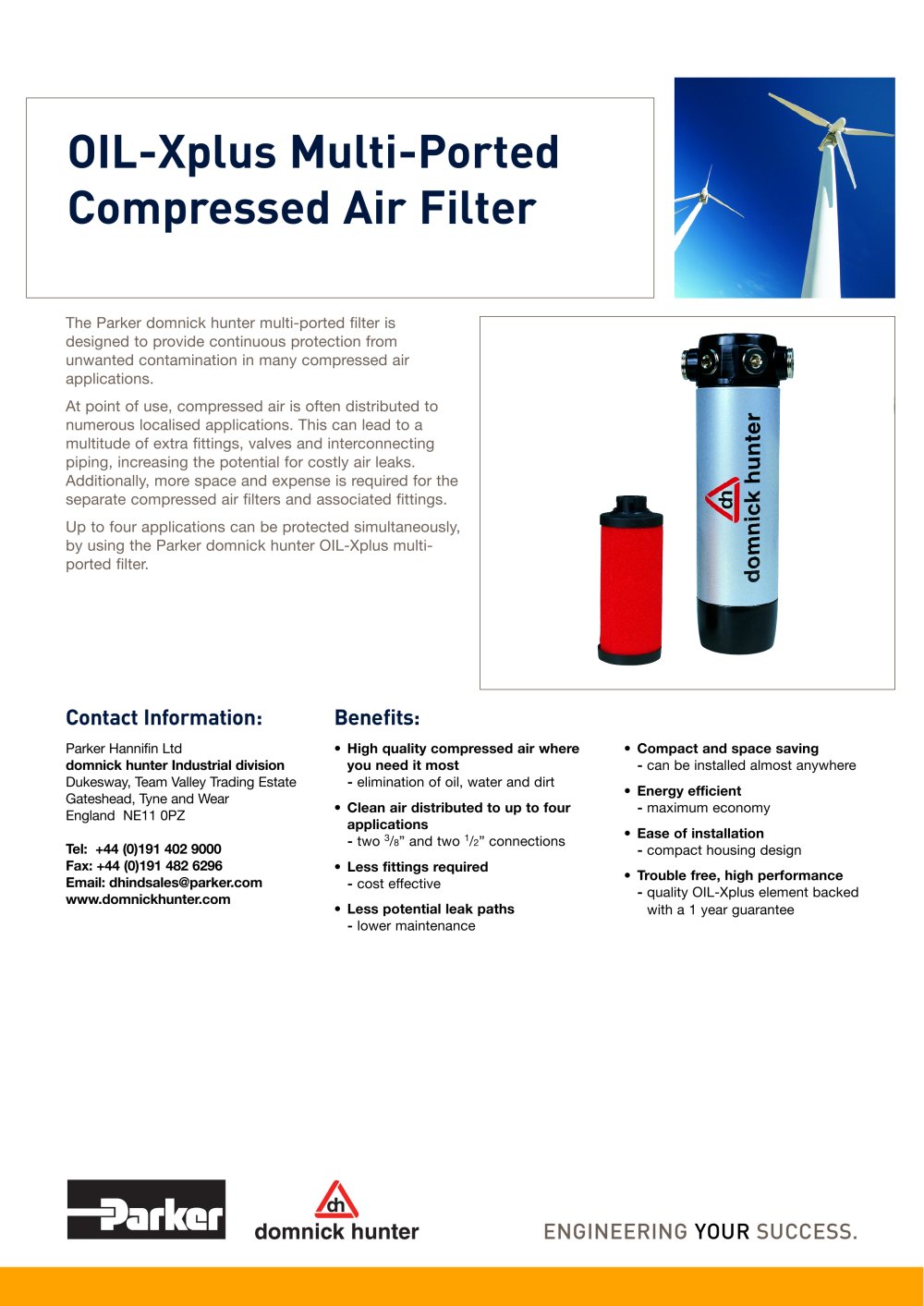

OIL-Xplus Multi-Ported Compressed Air Filter - 1

ENGINEERING YOUR SUCCESS. The Parker domnick hunter multi-ported filter is designed to provide continuous protection from unwanted contamination in many compressed air applications. At point of use, compressed air is often distributed to numerous localised applications. This can lead to a multitude of extra fittings, valves and interconnecting piping, increasing the potential for costly air leaks. Additionally, more space and expense is required for the separate compressed air filters and associated fittings. Up to four applications can be protected simultaneously, by using the Parker domnick hunter OIL-Xplus multiported filter. Contact Information: Parker Hannifin Ltd domnick hunter Industrial division Dukesway, Team Valley Trading Estate Gateshead, Tyne and Wear England NE11 0PZ Tel: +44 (0)191 402 9000 Fax: +44 (0)191 482 6296 Email: dhindsales@parker.com www.domnickhunter.com Benefits: • High quality compressed air where you need it most - elimination of oil, water and dirt • Clean air distributed to up to four applications - two 3/8” and two 1/2” connections • Less fittings required - cost effective • Less potential leak paths - lower maintenance • Compact and space saving - can be installed almost anywhere • Energy efficient - maximum economy • Ease of installation - compact housing design • Trouble free, high performance - quality OIL-Xplus element backed with a 1 year guarantee OIL-Xplus Multi-Ported Compressed Air Filter

Open the catalog to page 1
OIL-Xplus Multi-Ported Compressed Air Filter - 2

Catalogue: 17 400 4417 03/09 Rev. 00 ©2009 Parker Hannifin Corporation. All rights reserved. ENGINEERING YOUR SUCCESS. Technical Data MPF1 Multi-ported Filter Maximum flow rate 1.70 m3/min (102 m3/hr) (60cfm) Maximum flow per port 0.43 m3/min (25 m3/hr) (15cfm) Maximum operating pressure 16 bar g (232 psi g) Maximum recommended operating temperature 66°C (150°F) Minimum recommended operating temperature 1°C (34°F) Initial “dry” differential pressure 70 mbar (1.0 psi) Initial “wet” differential pressure 140 mbar (2.0 psi) Recommended filter element change 12 months or 6000 hours Replacement...

Open the catalog to page 2
