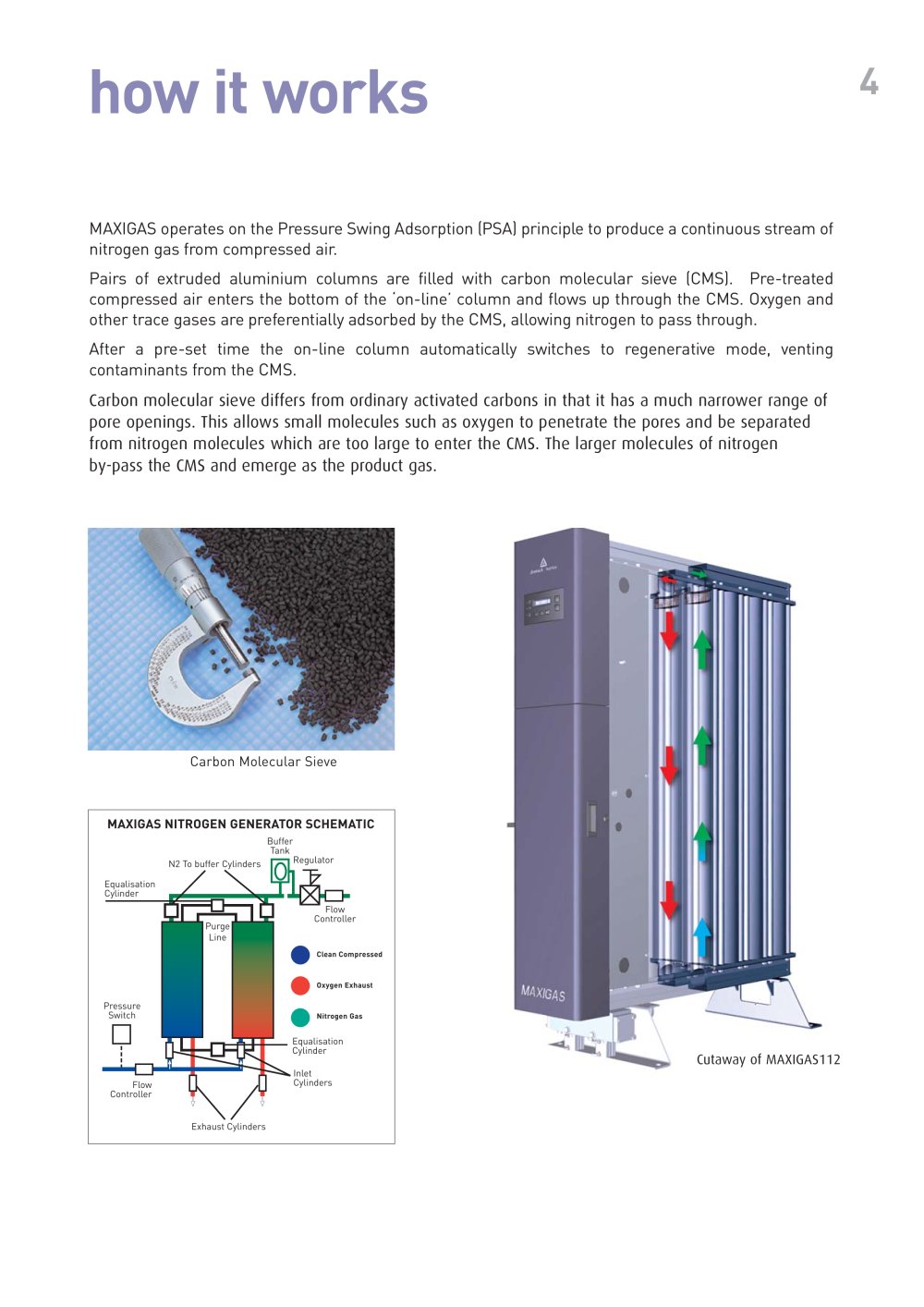

MAXIGAS operates on the Pressure Swing Adsorption (PSA) principle to produce a continuous stream of nitrogen gas from compressed air.

Pairs of extruded aluminium columns are filled with carbon molecular sieve (CMS). Pre-treated compressed air enters the bottom of the 'on-line' column and flows up through the CMS. Oxygen and other trace gases are preferentially adsorbed by the CMS, allowing nitrogen to pass through.

After a pre-set time the on-line column automatically switches to regenerative mode, venting contaminants from the CMS.

Carbon molecular sieve differs from ordinary activated carbons in that it has a much narrower range of pore openings. This allows small molecules such as oxygen to penetrate the pores and be separated from nitrogen molecules which are too large to enter the CMS. The larger molecules of nitrogen

by-pass the CMS and emerge as the product gas.
