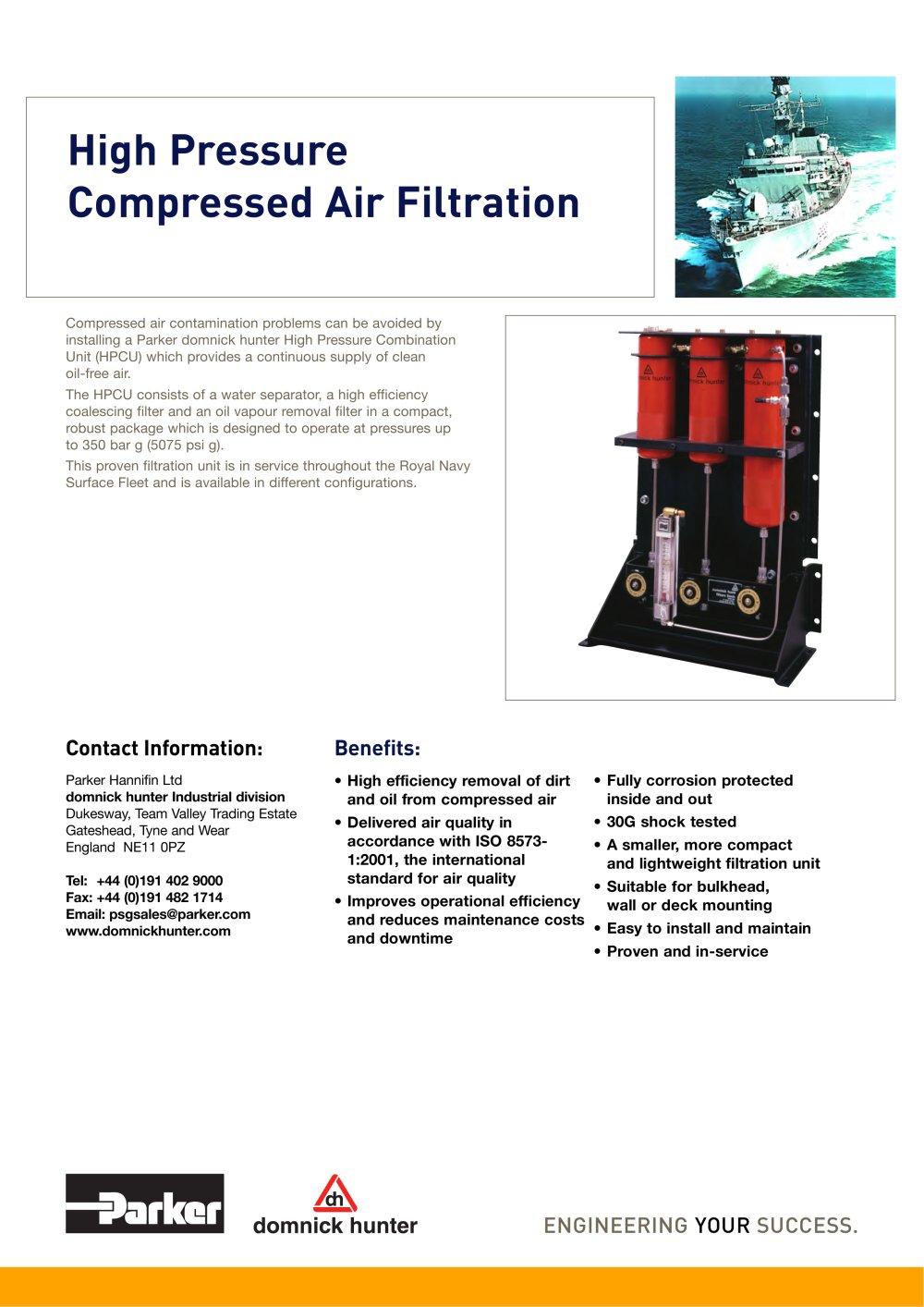

High Pressure Compressed Air Filtration - 1

High Pressure Compressed Air Filtration Compressed air contamination problems can be avoided by installing a Parker domnick hunter High Pressure Combination Unit (HPCU) which provides a continuous supply of clean oil-free air. The HPCU consists of a water separator, a high efficiency coalescing filter and an oil vapour removal filter in a compact, robust package which is designed to operate at pressures up to 350 bar g (5075 psi g). This proven filtration unit is in service throughout the Royal Navy Surface Fleet and is available in different configurations. Contact Information: Parker Hannifin Ltd domnick hunter Industrial division Dukesway, Team Valley Trading Estate Gateshead, Tyne and Wear England NE11 0PZ Tel: +44 (0)191 402 9000 Fax: +44 (0)191 482 1714 Email: psgsales@parker.com www.domnickhunter.com Benefits: • High efficiency removal of dirt and oil from compressed air • Delivered air quality in accordance with ISO 8573- 1:2001, the international standard for air quality • Improves operational efficiency and reduces maintenance costs and downtime • Fully corrosion protected inside and out • 30G shock tested • A smaller, more compact and lightweight filtration unit • Suitable for bulkhead, wall or deck mounting • Easy to install and maintain • Proven and in-service ENGINEERING YOUR SUCCESS.

Open the catalog to page 1

High Pressure Compressed Air Filtration - 2

Weights and Dimensions Height Width Depth Weight mm ins mm ins mm ins kg lbs 565 22.2 460 18.1 178 7.0 67 147 Technical Data Delivered Air Quality Particulate removal down to 0.01 micron Maximum remaining oil content 0.003 mg/m3 (0.003 ppm/wt) Water mists down to 0.01 mg/m3 (0.01ppm/wt) Normal Operation Maximum flowrate at 350 bar g 38L/s (80cfm) Maximum operating pressure 350 bar g (5075 psi g) Minimum operating pressure 100 bar g (1450 psi g) Pressure relief valve setting 380 bar g (5510 psi g) Maximum inlet temperature 30°C (86°F) Minimum inlet temperature 5°C (41°F) Inlet / outlet...
