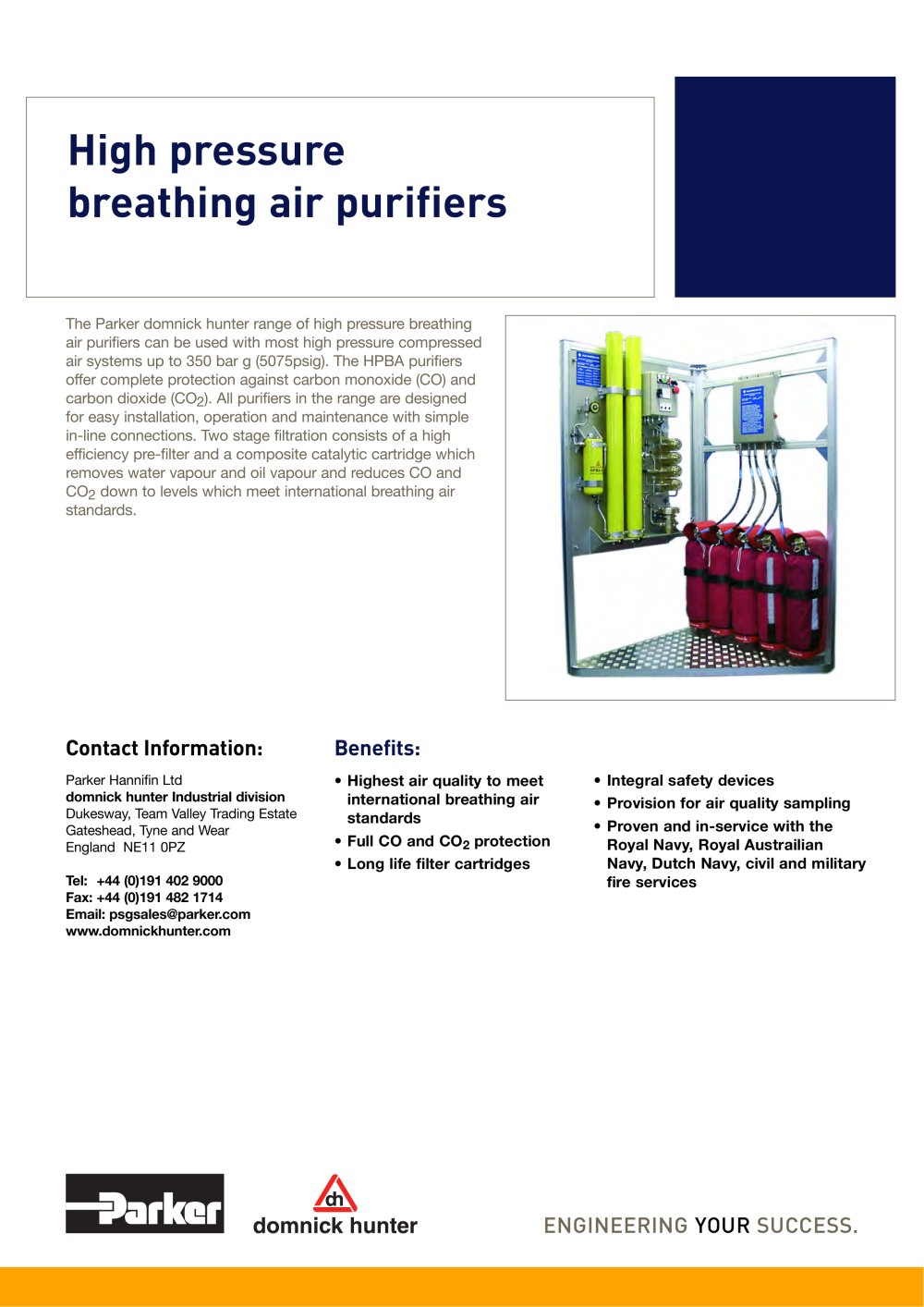

High pressure breathing air purifiers - 1

High pressure breathing air purifiers The Parker domnick hunter range of high pressure breathing air purifiers can be used with most high pressure compressed air systems up to 350 bar g (5075psig). The HPBA purifiers offer complete protection against carbon monoxide (CO) and carbon dioxide (CO2). All purifiers in the range are designed for easy installation, operation and maintenance with simple in-line connections. Two stage filtration consists of a high efficiency pre-filter and a composite catalytic cartridge which removes water vapour and oil vapour and reduces CO and CO2 down to levels which meet international breathing air standards. Contact Information: Parker Hannifin Ltd domnick hunter Industrial division Dukesway, Team Valley Trading Estate Gateshead, Tyne and Wear England NE11 0PZ Tel: +44 (0)191 402 9000 Fax: +44 (0)191 482 1714 Email: psgsales@parker.com www.domnickhunter.com Benefits: • Highest air quality to meet international breathing air standards • Full CO and CO2 protection • Long life filter cartridges • Integral safety devices • Provision for air quality sampling • Proven and in-service with the Royal Navy, Royal Austrailian Navy, Dutch Navy, civil and military fire services ENGINEERING YOUR SUCCESS.

Open the catalog to page 1
High pressure breathing air purifiers - 2

Weights and Dimensions Model Height Width Depth Weight mm ins mm ins mm ins kg lbs HPBA – 05 651 25.6 232 9.1 110 4.3 11 25 HPBA – 10 883 34.8 232 9.1 110 4.3 13 29 HPBA – 20 1377 54.2 232 9.1 110 4.3 16 36 HPBA – 40 1377 54.2 363 14.3 110 4.3 28 62 Technical Data Delivered Air Quality Particulate removal down to 0.01 micron Maximum remaining oil content 0.003 mg/m3 (0.003ppm/wt) Carbon dioxide < 500ppm Carbon monoxide < 5ppm Normal Operation Flowrate @ 350 bar g Inlet Outlet HPBA – 05 18m3/hr (10cfm) 18m3/hr (10cfm) HPBA – 10 36m3/hr (20cfm) 36m3/hr (20cfm) HPBA – 20 68m3/hr (19cfm)...

Open the catalog to page 2
