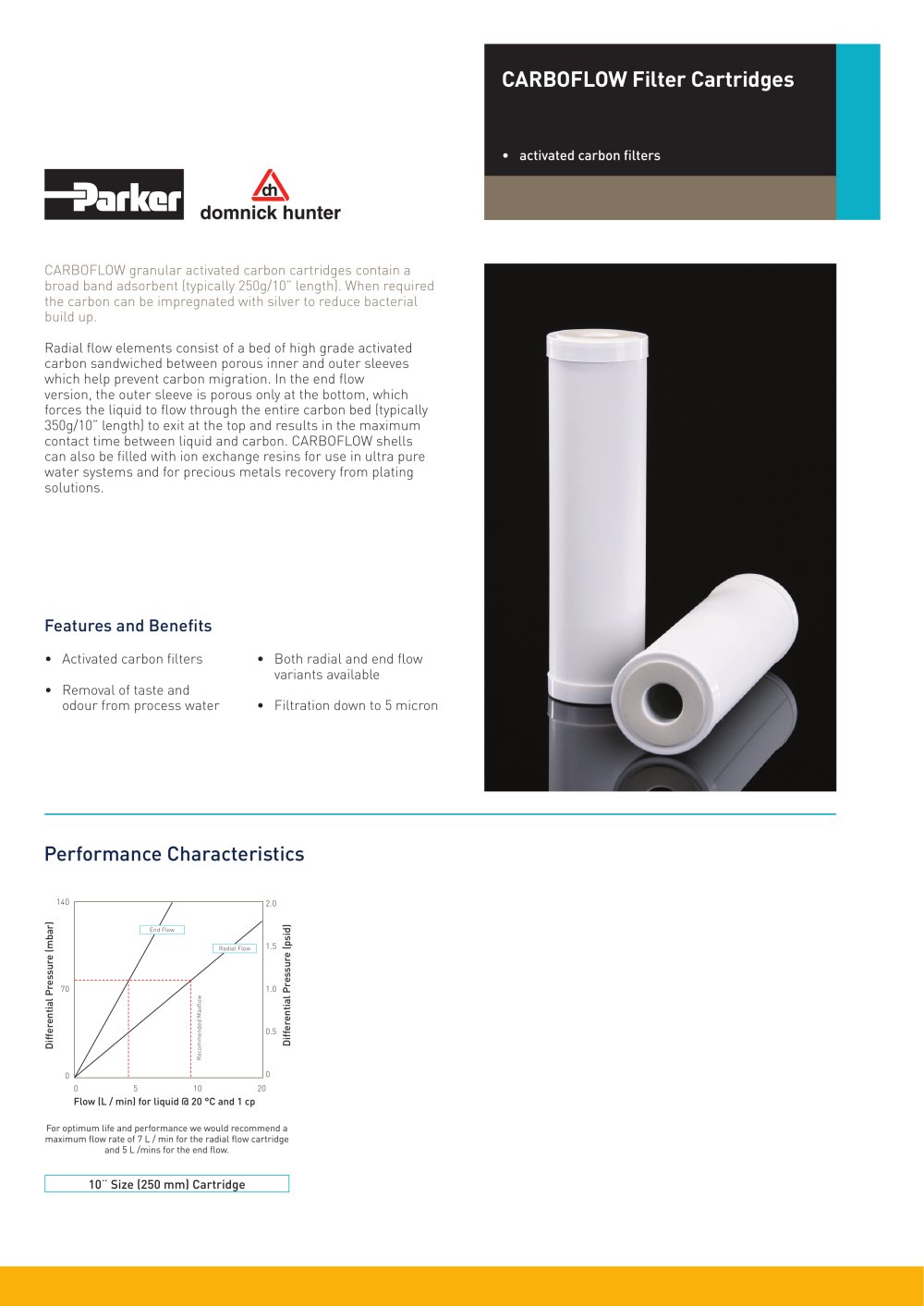

CARBOFLOW granular activated carbon cartridges contain a broad band adsorbent (typically 250g/10” length). When required the carbon can be impregnated with silver to reduce bacterial build up. Radial flow elements consist of a bed of high grade activated carbon sandwiched between porous inner and outer sleeves which help prevent carbon migration. In the end flow version, the outer sleeve is porous only at the bottom, which forces the liquid to flow through the entire carbon bed (typically 350g/10” length) to exit at the top and results in the maximum contact time between liquid and carbon. CARBOFLOW shells can also be filled with ion exchange resins for use in ultra pure water systems and for precious metals recovery from plating solutions. Features and Benefits 10¨ Size (250 mm) Cartridge Activated carbon filters• Removal of taste and • odour from process water Both radial and end flow • variants available Filtration down to 5 micron• Performance Characteristics CARBOFLOW Filter Cartridges activated carbon filters• 140 70 0 Differential Pressure (mbar) 2.0 1.5 1.0 0.5 0 Differential Pressure (psid) 0 5 10 20 Flow (L / min) for liquid @ 20 °C and 1 cp End Flow Radial Flow Recommended Maxflow For optimum life and performance we would recommend a maximum flow rate of 7 L / min for the radial flow cartridge and 5 L /mins for the end flow.
