Overview

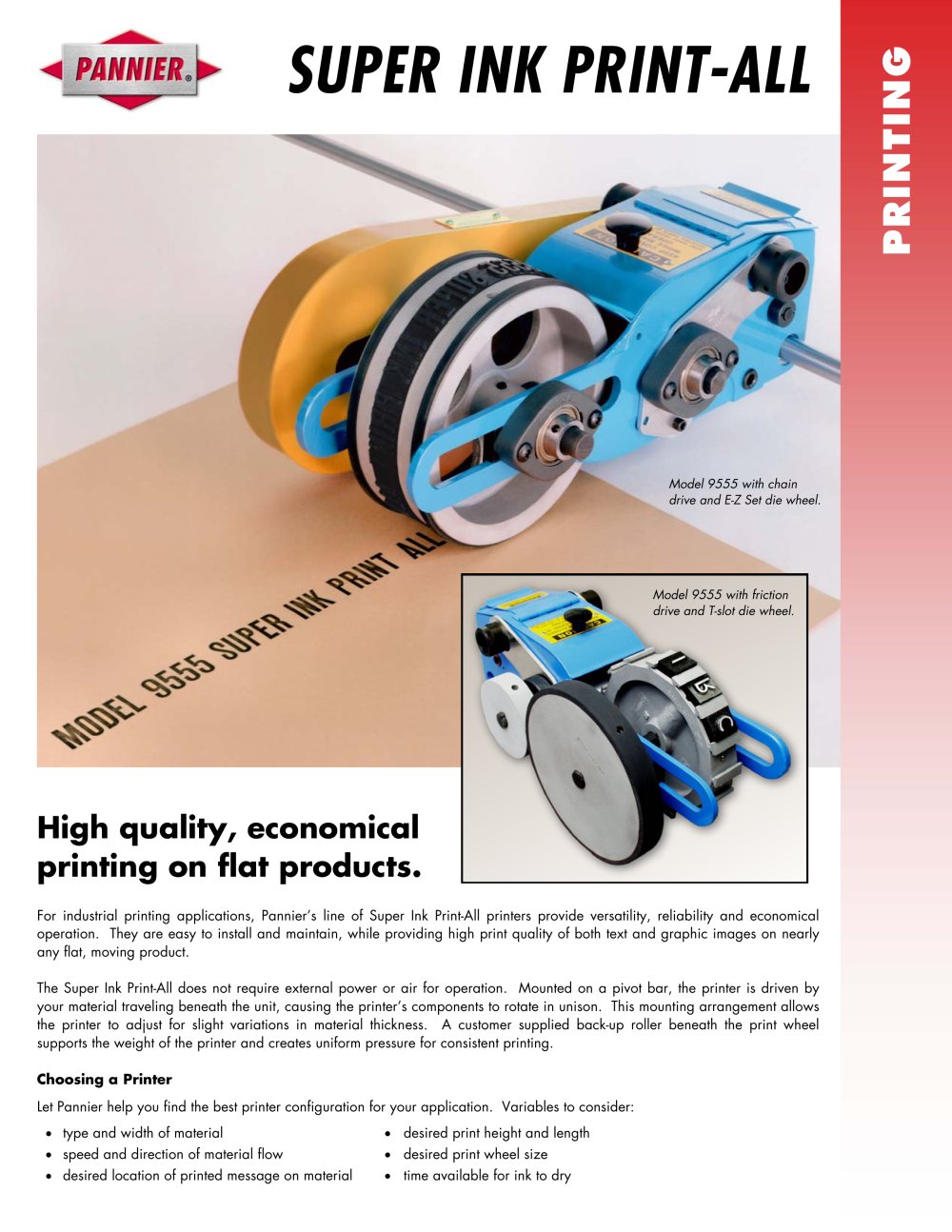

Pannier's Super Ink Print-All printers offer high-quality, economical printing solutions for industrial applications. These printers are designed for versatility and reliability, capable of printing text and graphics on nearly any flat, moving product without the need for external power or air.

Operation and Installation
The printer operates by being mounted on a pivot bar, driven by the material moving beneath it. This setup allows for adjustments to material thickness and ensures consistent printing through a customer-supplied back-up roller.

Choosing a Printer
Factors to consider when selecting a printer include material type and width, speed and direction of material flow, print location, print height and length, print wheel size, and ink drying time.

Models and Features

• Model 9555: Available with chain or friction drive, featuring E-Z Set or T-slot die wheels.
• Model 9670: Equipped with a chain drive and suitable for brass-back dies.

Mounting Options

• Top of Line Mounting: Standard for top printing, with optional air cylinder lift.
• Under Line Mounting: For bottom printing, activated by an optional air cylinder.

Specifications

• Printer Width: Model 9555 - 9.03" (22.9 cm), Model 9670 - 12.67" (32.2 cm).
• Maximum Speed: Standard - 300 fpm (91 mpm), High Speed - 575 fpm (175 mpm).
• Print Wheel Sizes: Ranging from 18" to 39" circumference.
• Character Sizes: Model 9555 - 1/8" to 1-7/8", Model 9670 - 1/8" to 4-3/4".

Printing Die Options

• E-Z Set: Economical dies for single or multiple-line printing.
• RIBtype®: Dies held in a ribbed base material.
• Hook & Loop: Dies attached with hook and loop tape.
• Convex Flanged: Rigid dies held by T-slots.
• Steel Backed Dies, Magnetic Mount: Quick-change magnetic material.
• Metal Backed Dies, Screw Mount: Dies bonded to steel or brass backing.

Additional Information
Pannier provides a comprehensive range of printers, mounting accessories, printing dies, and inks. For more details, visit their website.
