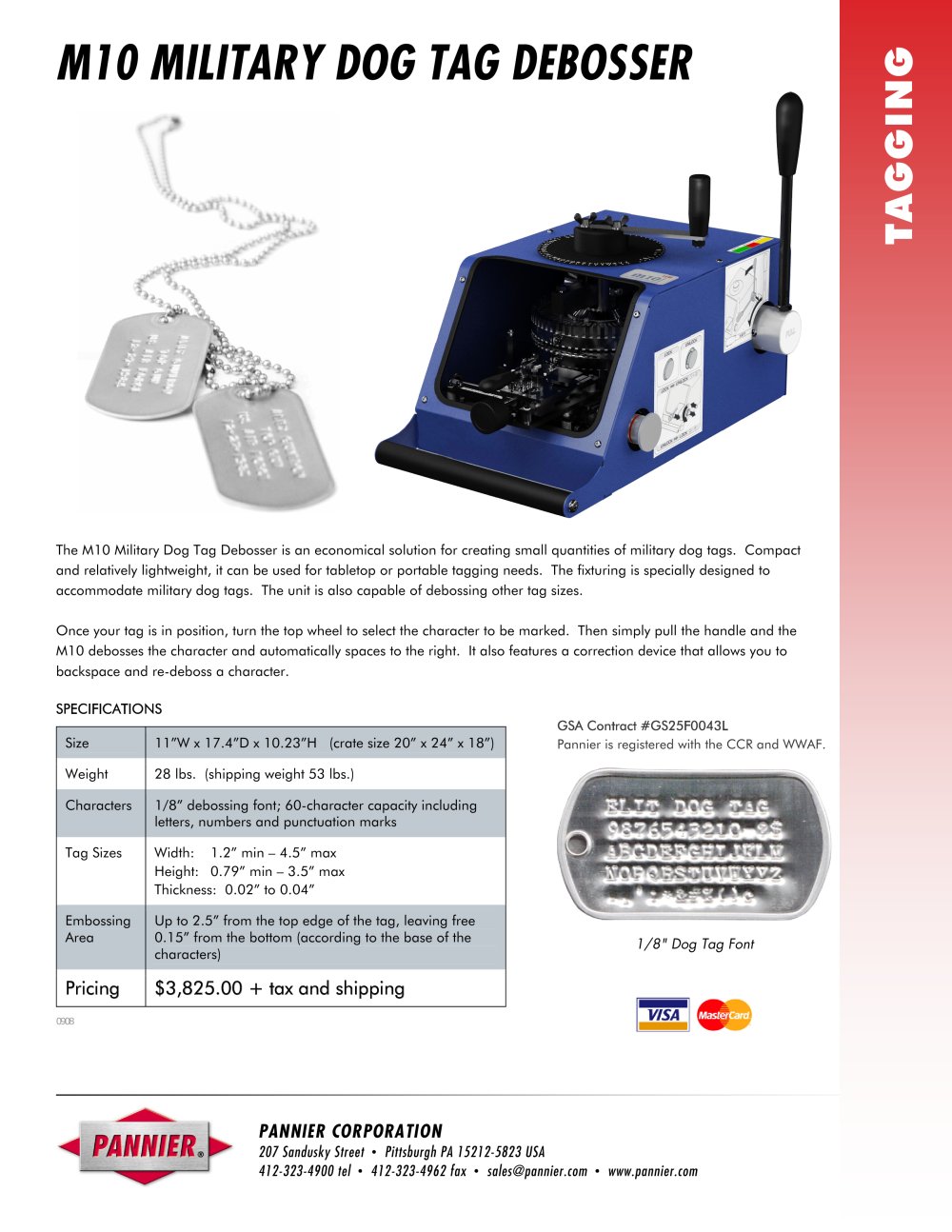

M10 MILITARY DOG TAG DEBOSSER

TAGGING The M10 Military Dog Tag Debosser is an economical solution for creating small quantities of military dog tags. Compact and relatively lightweight, it can be used for tabletop or portable tagging needs. The fixturing is specially designed to accommodate military dog tags. The unit is also capable of debossing other tag sizes. Once your tag is in position, turn the top wheel to select the character to be marked. Then simply pull the handle and the M10 debosses the character and automatically spaces to the right. It also features a correction device that allows you to backspace and re-deboss a character. SPECIFICATIONS
GSA Contract #GS25F0043L Size 11”W x 17.4”D x 10.23”H (crate size 20” x 24” x 18”)
Pannier is registered with the CCR and WWAF. Weight 28 lbs. (shipping weight 53 lbs.) Characters 1/8” debossing font; 60-character capacity including letters, numbers and punctuation marks Tag Sizes Width: 1.2” min – 4.5” max Height: 0.79” min – 3.5” max Thickness: 0.02” to 0.04” Embossing Up to 2.5” from the top edge of the tag, leaving free Area 0.15” from the bottom (according to the base of the characters) 1/8" Dog Tag Font

Pricing $3,825.00 + tax and shipping

0908

PANNIER CORPORATION

207 Sandusky Street • Pittsburgh PA 15212-5823 USA 412-323-4900 tel ? 412-323-4962 fax ? sales@pannier.com ? www.pannier.com
