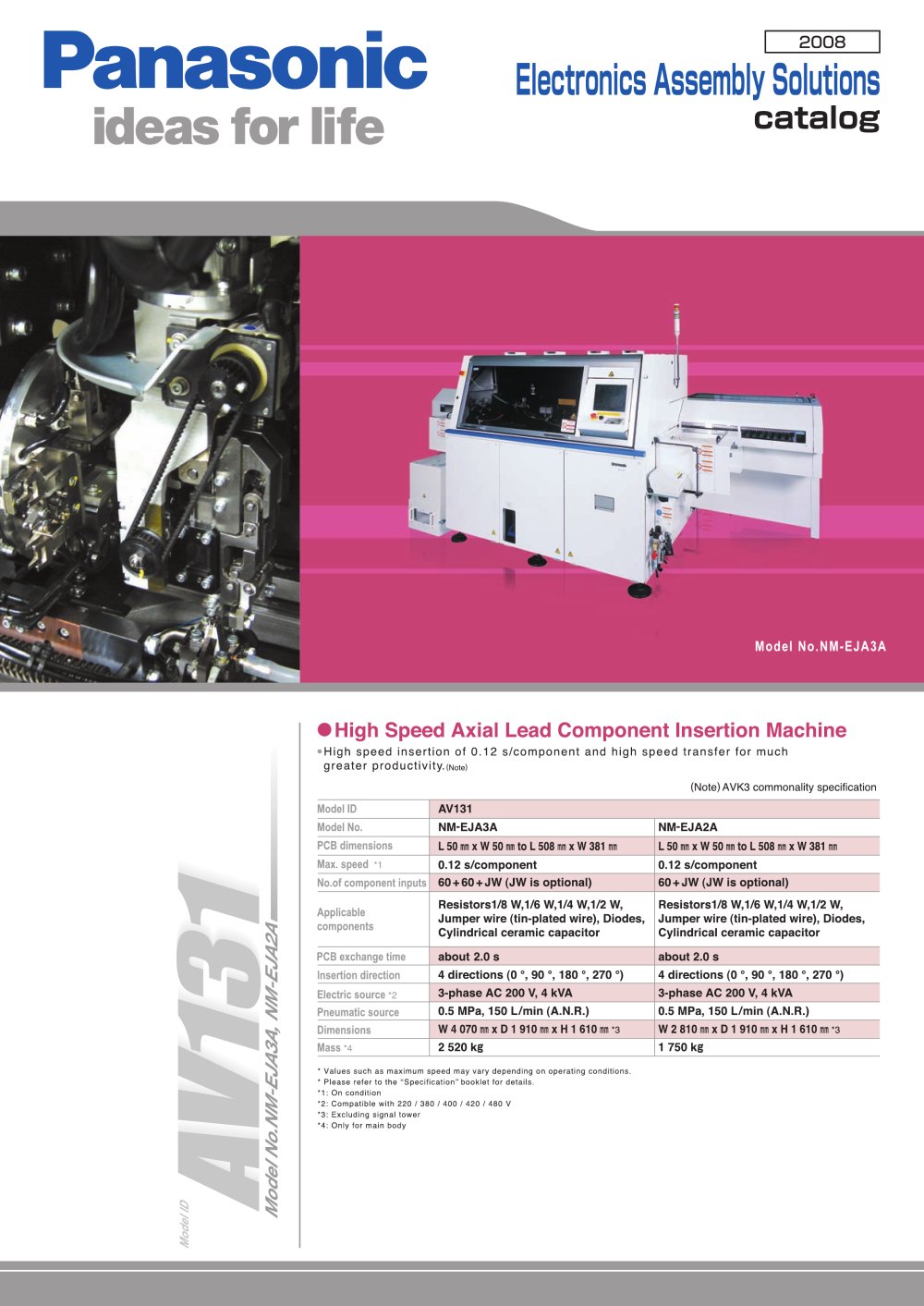

Electronics Assembly Solutions

catalog

Model N0.NH-EJA3A

• High Speed Axial Lead Component Insertion Machine

• High speed insertion of 0.12 s/component and high speed transfer for much greater productivity.(Note)

(Note) AVK3 commonality specification


Model ID	AVI 31
Model No.	NM-EJA3A	NM-EJA2A
PCB dimensions	L 50 im x W 50 in to L 508 m x W 381 im	L 50 im x W 50 in to L 508 m x W 381 im
Max. speed *1	0.12 s/component	0.12 s/component
No.of component inputs	60+60+JW (JW Is optional)	60+JW (JW Is optional)
Applicable components	Reslstorsl/8 W,1/6 W,1/4 W,1/2 W, Jumper wire (tin-plated wire), Diodes, Cylindrical ceramic capacitor	Reslstorsl/8 W,1/6 W,1/4 W,1/2 W, Jumper wire (tin-plated wire), Diodes, Cylindrical ceramic capacitor
PCB exchange time	about 2.0 s	about 2.0 s
Insertion direction	4 directions (0 •, 90 °, 180 °, 270 °)	4 directions (0 •, 90 °, 180 °, 270 °)
Electric source *2	3-phase AC 200 V, 4 kVA	3-phase AC 200 V, 4 kVA
Pneumatic source	0.5 MPa, 150 L/min (A.N.R.)	0.5 MPa, 150 L/min (A.N.R.)
Dimensions	W 4 070 mix D1 910 m x H 1 610 m *3	W2 810imxD1 910mxH1 610m*3
Mass*4	2 520 kg	1 750 kg

* Values such as maximum speed may vary da pending on operating conditions.

* Please refer to the "Specification' booklet for detail*. *1: On condition

*2: Compatible with 220 / 380 / 400 / 420 / 480 V *3: Excluding signal tower *4: Only for main body
