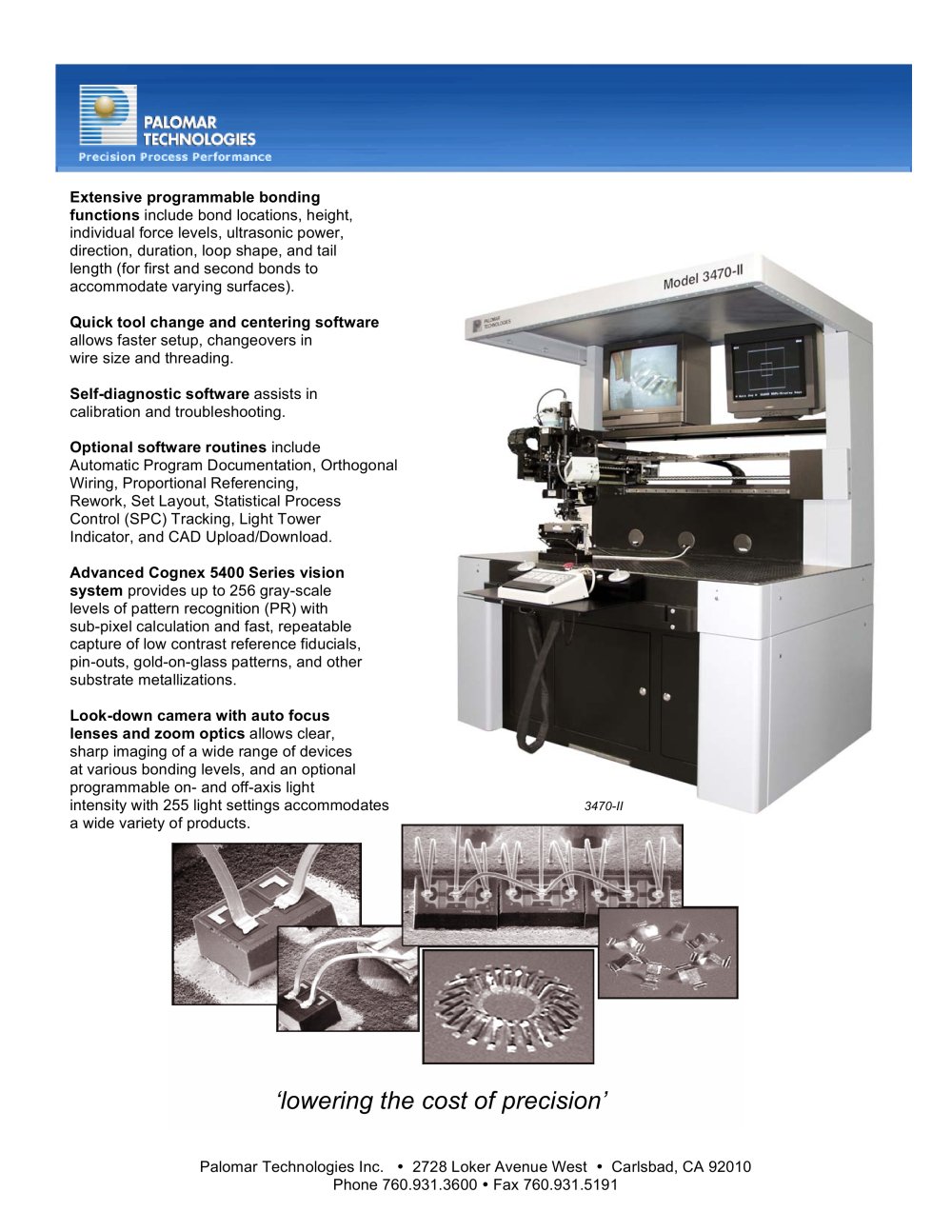

Extensive programmable bonding functions include bond locations, height, individual force levels, ultrasonic power, direction, duration, loop shape, and tail length (for first and second bonds to accommodate varying surfaces). Quick tool change and centering software allows faster setup, changeovers in wire size and threading. Self-diagnostic software assists in calibration and troubleshooting. Optional software routines include Automatic Program Documentation, Orthogonal Wiring, Proportional Referencing, Rework, Set Layout, Statistical Process Control (SPC) Tracking, Light Tower Indicator, and CAD Upload/Download. Advanced Cognex 5400 Series vision machine provides up to 256 gray-scale levels of pattern recognition (PR) with sub-pixel calculation and fast, repeatable capture of low contrast reference fiducials, pin-outs, gold-on-glass patterns, and other substrate metallizations. Look-down professional camera with auto focus lenses and zoom optics allows clear, sharp imaging of a wide range of devices at various bonding levels, and an optional programmable on- and off-axis light intensity with 255 light settings accommodates
3470-II a wide variety of products.

‘lowering the cost of precision’

Palomar Technologies Inc. 2728 Loker Avenue West Carlsbad, CA 92010 Phone 760.931.3600 Fax 760.931.5191
