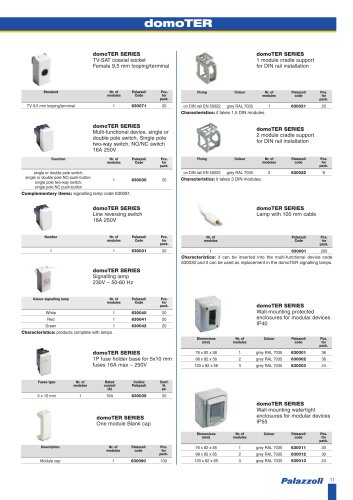

domoTER
domoTER SERIES
TV-SAT coaxial socket
Female 9,5 mm looping/terminal
domoTER SERIES
1 module cradle support
for DIN rail installation
domoTER SERIES
Multi-functional device, single or
double pole switch, Single pole
two-way switch, NO/NC switch
16A 250V
domoTER SERIES
2 module cradle support
for DIN rail installation
domoTER SERIES
Lamp with 100 mm cable
domoTER SERIES
Line reversing switch
16A 250V
domoTER SERIES
Signalling lamp
230V – 50-60 Hz
domoTER SERIES
1P fuse holder base for 5x10 mm
fuses 16A max – 250V
Function Nr. of Palazzoli Pcs.
modules Code for
pack.
single or double pole switch;
single or double pole NO push-button;
1 630030 20
single pole two-way switch;
single pole NC push-button
Complementary items: signalling lamp code 630091.
Number Nr. of Palazzoli Pcs.
modules Code for
pack.
1 1 630031 20
domoTER SERIES
Wall-mounting protected
enclosures for modular devices
IP40
Standard Nr. of Palazzoli Pcs.
modules Code for
pack.
TV 9,5 mm looping/terminal 1 630071 20
Fuses type Nr. of Rated Codice Conf.
modules current Palazzoli N.
(A) pz.
5 x 10 mm 1 16A 630035 20
Description Nr. of Palazzoli Pcs.
modules code for
pack.
Module cap 1 630090 100
domoTER SERIES
One module Blank cap
Colour signalling lamp Nr. of Palazzoli Pcs.
modules Code for
pack.
White 1 630040 20
Red 1 630041 20
Green 1 630042 20
Characteristics: products complete with lamps .
Fixing Colour Nr. of Palazzoli Pcs.
modules code for
pack.
on DIN rail EN 50022 grey RAL 7035 1 630021 20
Characteristics: it takes 1,5 DIN modules.
Fixing Colour Nr. of Palazzoli Pcs.
modules code for
pack.
on DIN rail EN 50022 grey RAL 7035 2 630022 8
Characteristics: it takes 3 DIN modules.
Nr. of Palazzoli Pcs.
modules Code for
pack.
1 630091 200
Characteristics: it can be inserted into the multi-functional device code
630030 and it can be used as replacement in the domoTER signalling lamps.
Dimensions Nr. of Colour Palazzoli Pcs.
(mm) modules code for
pack.
76 x 82 x 58 1 grey RAL 7035 630001 36
98 x 82 x 58 2 grey RAL 7035 630002 36
120 x 82 x 58 3 grey RAL 7035 630003 24
domoTER SERIES
Wall-mounting watertight
enclosures for modular devices
IP55
Dimensions Nr. of Colour Palazzoli Pcs.
(mm) modules code for
pack.
76 x 82 x 65 1 grey RAL 7035 630011 30
98 x 82 x 65 2 grey RAL 7035 630012 30
120 x 82 x 65 3 grey RAL 7035 630013 24
