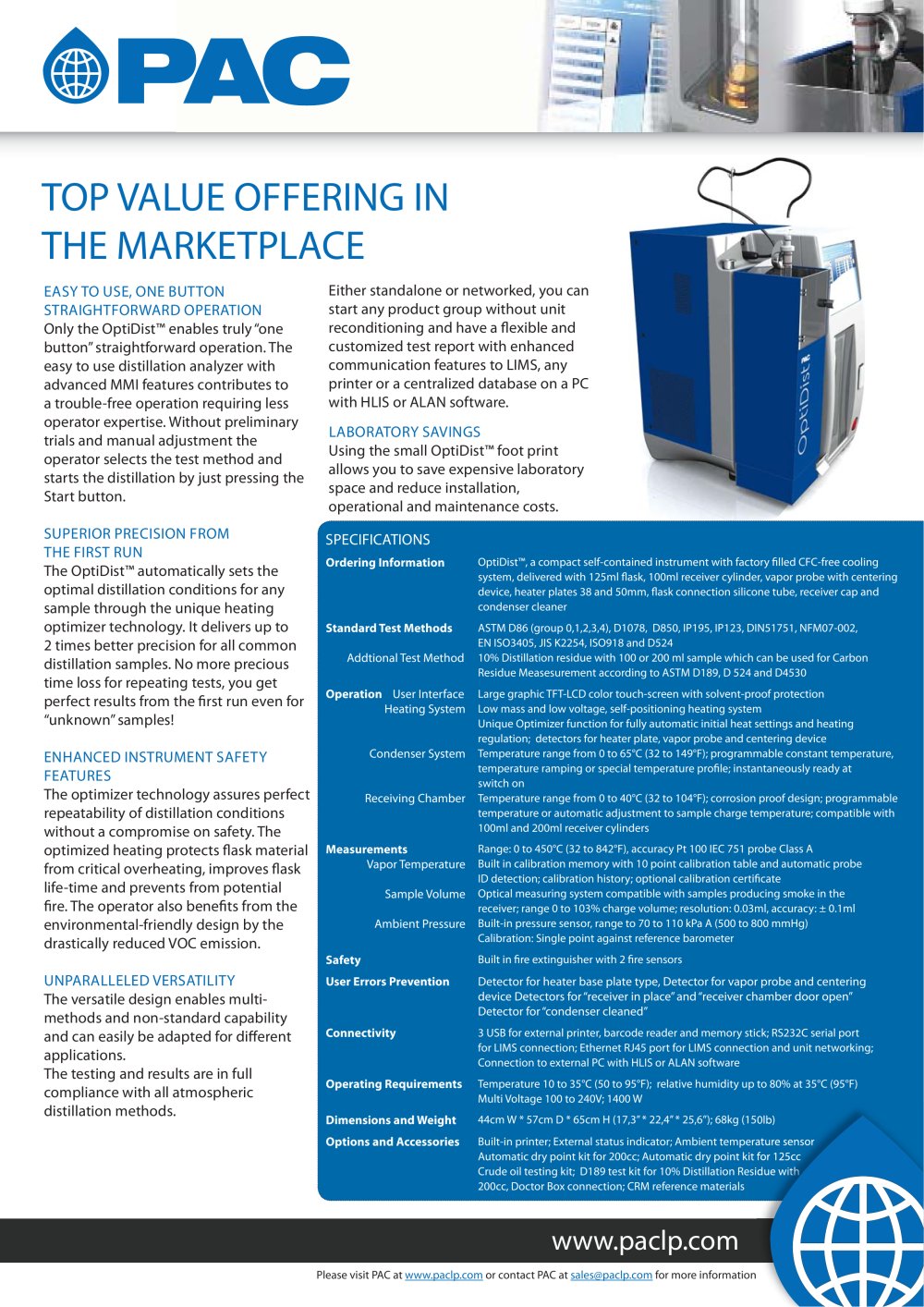

EASY TO USE, ONE BUTTON STRAIGHTFORWARD OPERATION Only the OptiDist™ enables truly “one button” straightforward operation. The easy to use distillation analyzer with advanced MMI features contributes to a trouble-free operation requiring less operator expertise. Without preliminary trials and manual adjustment the operator selects the test method and starts the distillation by just pressing the Start button. SUPERIOR PRECISION FROM THE FIRST RUN The OptiDist™ automatically sets the optimal distillation conditions for any sample through the unique heating optimizer technology. It delivers up to 2 times better precision for all common distillation samples. No more precious time loss for repeating tests, you get perfect results from the fi rst run even for “unknown” samples! ENHANCED INSTRUMENT SAFETY FEATURES The optimizer technology assures perfect repeatability of distillation conditions without a compromise on safety. The optimized heating protects fl ask material from critical overheating, improves fl ask life-time and prevents from potential fi re. The operator also benefi ts from the environmental-friendly design by the drastically reduced VOC emission. UNPARALLELED VERSATILITY The versatile design enables multimethods and non-standard capability and can easily be adapted for diff erent applications. The testing and results are in full compliance with all atmospheric distillation methods. Either standalone or networked, you can start any product group without unit reconditioning and have a fl exible and customized test report with enhanced communication features to LIMS, any printer or a centralized database on a PC with HLIS or ALAN software. LABORATORY SAVINGS Using the small OptiDist™ foot print allows you to save expensive laboratory space and reduce installation, operational and maintenance costs. TOP VALUE OFFERING IN THE MARKETPLACE www.paclp.com Please visit PAC at www.paclp.com or contact PAC at sales@paclp.com for more information SPECIFICATIONS Ordering Information OptiDist™, a compact self-contained instrument with factory fi lled CFC-free cooling system, delivered with 125ml fl ask, 100ml receiver cylinder, vapor probe with centering device, heater plates 38 and 50mm, fl ask connection silicone tube, receiver cap and condenser cleaner Standard Test Methods Addtional Test Method ASTM D86 (group 0,1,2,3,4), D1078, D850, IP195, IP123, DIN51751, NFM07-002, EN ISO3405, JIS K2254, ISO918 and D524 10% Distillation residue with 100 or 200 ml sample which can be used for Carbon Residue Measesurement according to ASTM D189, D 524 and D4530 Operation User Interface Heating System Condenser System Receiving Chamber Large graphic TFT-LCD color touch-screen with solvent-proof protection Low mass and low voltage, self-positioning heating system Unique Optimizer function for fully automatic initial heat settings and heating regulation; detectors for heater plate, vapor probe and centering device Temperature range from 0 to 65°C (32 to 149°F); programmable constant temperature, temperature ramping or special temperature profi le; instantaneously ready at switch on Temperature range from 0 to 40°C (32 to 104°F); corrosion proof design; programmable temperature or automatic adjustment to sample charge temperature; compatible with 100ml and 200ml receiver cylinders Measurements Vapor Temperature Sample Volume Ambient Pressure Range: 0 to 450°C (32 to 842°F), accuracy Pt 100 IEC 751 probe Class A Built in calibration memory with 10 point calibration table and automatic probe ID detection; calibration history; optional calibration certifi cate Optical measuring system compatible with samples producing smoke in the receiver; range 0 to 103% charge volume; resolution: 0.03ml, accuracy: ± 0.1ml Built-in pressure sensor, range to 70 to 110 kPa A (500 to 800 mmHg) Calibration: Single point against reference barometer Safety Built in fi re extinguisher with 2 fi re sensors User Errors Prevention Detector for heater base plate type, Detector for vapor probe and centering device Detectors for “receiver in place” and “receiver chamber door open” Detector for “condenser cleaned” Connectivity 3 USB for external printer, barcode reader and memory stick; RS232C serial port for LIMS connection; Ethernet RJ45 port for LIMS connection and unit networking; Connection to external PC with HLIS or ALAN software Operating Requirements Temperature 10 to 35°C (50 to 95°F); relative humidity up to 80% at 35°C (95°F) Multi Voltage 100 to 240V; 1400 W Dimensions and Weight 44cm W * 57cm D * 65cm H (17,3’’ * 22,4’’ * 25,6’’); 68kg (150lb) Options and Accessories Built-in printer; External status indicator; Ambient temperature sensor Automatic dry point kit for 200cc; Automatic dry point kit for 125cc Crude oil testing kit; D189 test kit for 10% Distillation Residue with 200cc, Doctor Box connection; CRM reference materials
