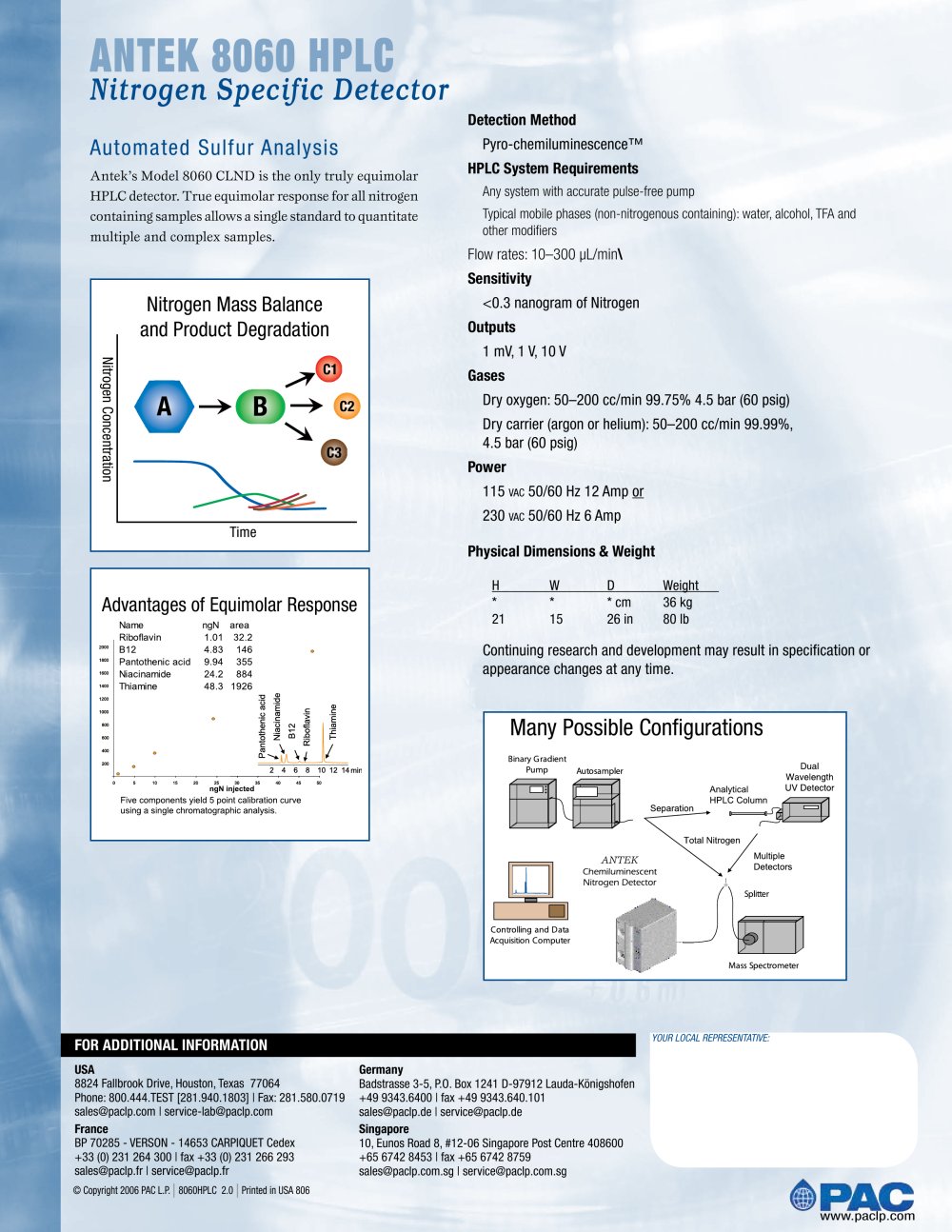

www.paclp.com YOUR LOCAL REPRESENTATIVE: for additional information USA 8824 Fallbrook Drive, Houston, Texas 77064 Phone: 800.444.test [281.940.1803] | Fax: 281.580.0719 sales@paclp.com | service-lab@paclp.com France BP 70285 - VERSON - 14653 CARPIQUET Cedex +33 (0) 231 264 300 | fax +33 (0) 231 266 293 sales@paclp.fr | service@paclp.fr Germany Badstrasse 3-5, P.O. Box 1241 D-97912 Lauda-Königshofen +49 9343.6400 | fax +49 9343.640.101 sales@paclp.de | service@paclp.de Singapore 10, Eunos Road 8, #12-06 Singapore Post Centre 408600 +65 6742 8453 | fax +65 6742 8759 sales@paclp.com.sg | service@paclp.com.sg ANTEK 8060 HPLC Nitrogen Specific Detector © Copyright 2006 PAC L.P. | 8060HPLC 2.0 | Printed in USA 806 Automated Sulfur Analysis Antek’s Model 8060 CLND is the only truly equimolar HPLC detector. True equimolar response for all nitrogen containing samples allows a single standard to quantitate multiple and complex samples. Detection Method Pyro-chemiluminescence™ HPLC System Requirements Any system with accurate pulse-free pump Typical mobile phases (non-nitrogenous containing): water, alcohol, TFA and other modifiers Flow rates: 10–300 ìL/min\ Sensitivity <0.3 nanogram of Nitrogen Outputs 1 mV, 1 V, 10 V Gases Dry oxygen: 50–200 cc/min 99.75% 4.5 bar (60 psig) Dry carrier (argon or helium): 50–200 cc/min 99.99%, 4.5 bar (60 psig) Power 115 vac 50/60 Hz 12 Amp or 230 vac 50/60 Hz 6 Amp Physical Dimensions & Weight H W D Weight * * * cm 36 kg 21 15 26 in 80 lb Continuing research and development may result in specification or appearance changes at any time. Nitrogen Concentration Time A B C2 C3 CC1 Nitrogen Mass Balance and Product Degradation Advantages of Equimolar Response Many Possible Configurations
