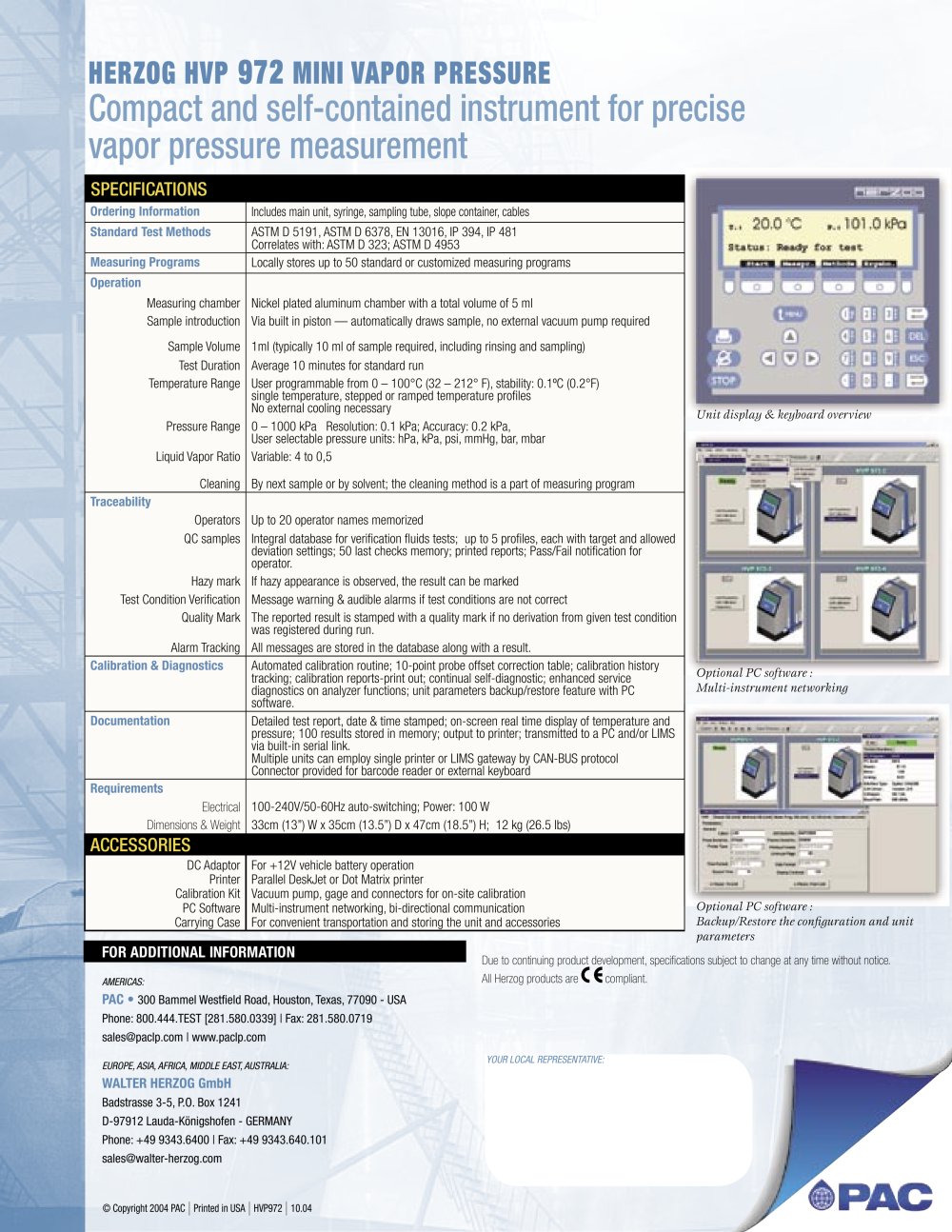

FOR ADDITIONAL INFORMATION AMERICAS: PAC • 300 Bammel Westfi eld Road, Houston, Texas, 77090 - USA Phone: 800.444.TEST [281.580.0339] | Fax: 281.580.0719 sales@paclp.com | www.paclp.com EUROPE, ASIA, AFRICA, MIDDLE EAST, AUSTRALIA: WALTER HERZOG GmbH Badstrasse 3-5, P.O. Box 1241 D-97912 Lauda-Königshofen - GERMANY Phone: +49 9343.6400 | Fax: +49 9343.640.101 sales@walter-herzog.com YOUR LOCAL REPRESENTATIVE: HERZOG HVP 972 MINI VAPOR PRESSURE Compact and self-contained instrument for precise vapor pressure measurement © Copyright 2004 PAC | Printed in USA | HVP972 | 10.04 SPECIFICATIONS Ordering Information Includes main unit, syringe, sampling tube, slope container, cables Standard Test Methods ASTM D 5191, ASTM D 6378, EN 13016, IP 394, IP 481 Correlates with: ASTM D 323; ASTM D 4953 Measuring Programs Locally stores up to 50 standard or customized measuring programs Operation Measuring chamber Nickel plated aluminum chamber with a total volume of 5 ml Sample introduction Via built in piston — automatically draws sample, no external vacuum pump required Sample Volume 1ml (typically 10 ml of sample required, including rinsing and sampling) Test Duration Average 10 minutes for standard run Temperature Range User programmable from 0 – 100°C (32 – 212° F), stability: 0.1ºC (0.2°F) single temperature, stepped or ramped temperature profi les No external cooling necessary Pressure Range 0 – 1000 kPa Resolution: 0.1 kPa; Accuracy: 0.2 kPa, User selectable pressure units: hPa, kPa, psi, mmHg, bar, mbar Liquid Vapor Ratio Variable: 4 to 0,5 Cleaning By next sample or by solvent; the cleaning method is a part of measuring program Traceability Operators Up to 20 operator names memorized QC samples Integral database for verifi cation fl uids tests; up to 5 profi les, each with target and allowed deviation settings; 50 last checks memory; printed reports; Pass/Fail notifi cation for operator. Hazy mark If hazy appearance is observed, the result can be marked Test Condition Verifi cation Message warning & audible alarms if test conditions are not correct Quality Mark The reported result is stamped with a quality mark if no derivation from given test condition was registered during run. Alarm Tracking All messages are stored in the database along with a result. Calibration & Diagnostics Automated calibration routine; 10-point probe offset correction table; calibration history tracking; calibration reports-print out; continual self-diagnostic; enhanced service diagnostics on analyzer functions; unit parameters backup/restore feature with PC software. Documentation Detailed test report, date & time stamped; on-screen real time display of temperature and pressure; 100 results stored in memory; output to printer; transmitted to a PC and/or LIMS via built-in serial link. Multiple units can employ single printer or LIMS gateway by CAN-BUS protocol Connector provided for barcode reader or external keyboard Requirements Electrical 100-240V/50-60Hz auto-switching; Power: 100 W Dimensions & Weight 33cm (13”) W x 35cm (13.5”) D x 47cm (18.5”) H; 12 kg (26.5 lbs) ACCESSORIES DC Adaptor Printer Calibration Kit PC Software Carrying Case For +12V vehicle battery operation Parallel DeskJet or Dot Matrix printer Vacuum pump, gage and connectors for on-site calibration Multi-instrument networking, bi-directional communication For convenient transportation and storing the unit and accessories Unit display & keyboard overview Optional PC software : Multi-instrument networking Optional PC software : Backup/Restore the confi guration and unit parameters Due to continuing product development, specifi cations subject to change at any time without notice. All Herzog products are compliant.
