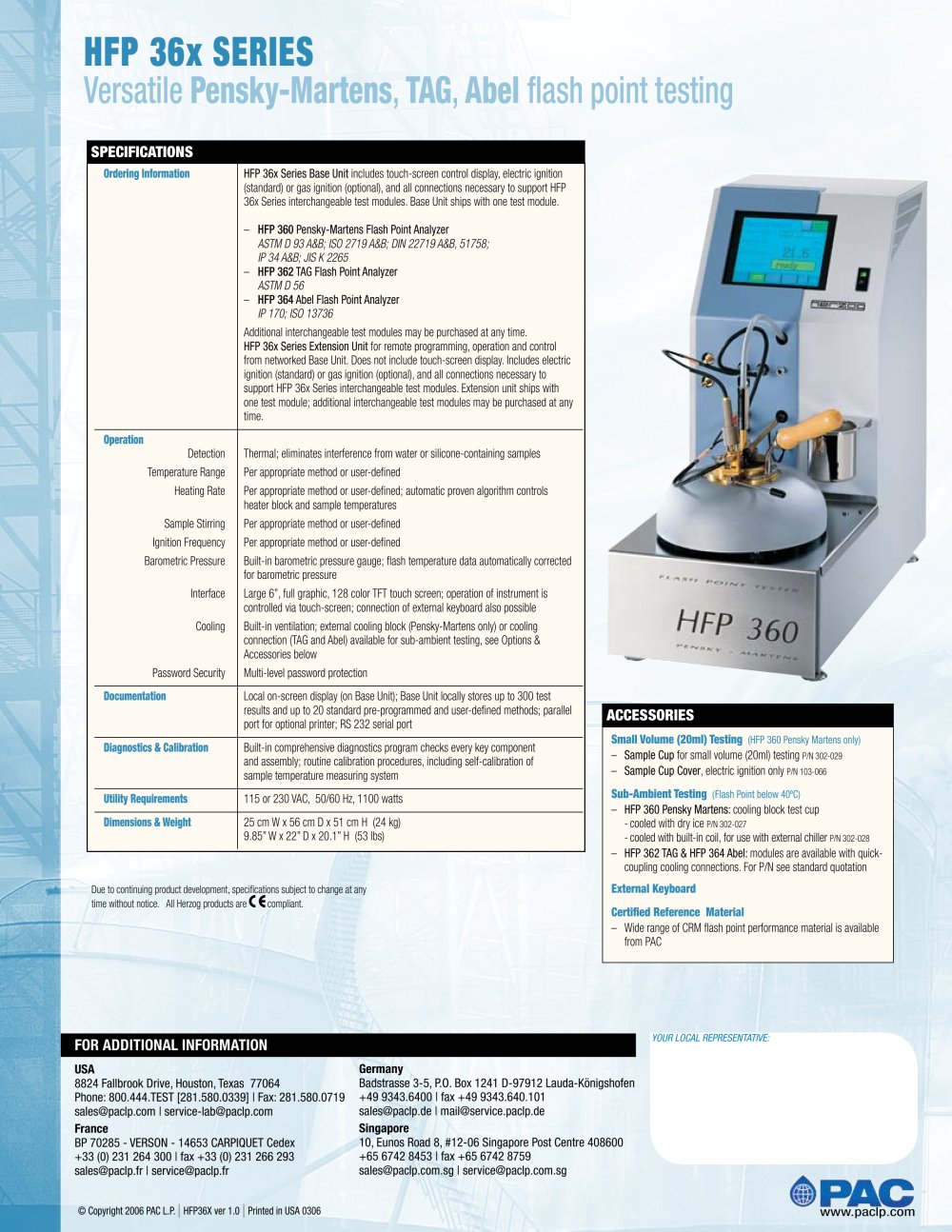

HFP 36x SERIES

Versatile Pensky-Martens , TAG , Abel flash point testing

SPECIFICATIONS

Ordering Information HFP 36x Series Base Unit HFP 360 Pensky-Martens Flash Point Analyzer includes touch-screen control display, electric ignition (standard) or gas ignition (optional), and all connections necessary to support HFP 36x Series interchangeable test modules. Base Unit ships with one test module. – ASTM D 93 A&B; ISO 2719 A&B; DIN 22719 A&B, 51758; IP 34 A&B; JIS K 2265 – HFP 362 TAG Flash Point Analyzer ASTM D 56 – HFP 364 Abel Flash Point Analyzer IP 170; ISO 13736 Additional interchangeable test modules may be purchased at any time. HFP 36x Series Extension Unit for remote programming, operation and control from networked Base Unit. Does not include touch-screen display. Includes electric ignition (standard) or gas ignition (optional), and all connections necessary to support HFP 36x Series interchangeable test modules. Extension unit ships with one test module; additional interchangeable test modules may be purchased at any time. Operation Detection Thermal; eliminates interference from water or silicone-containing samples Temperature Range Per appropriate method or user-defined Heating Rate Per appropriate method or user-defined; automatic proven algorithm controls heater block and sample temperatures Sample Stirring Per appropriate method or user-defined Ignition Frequency Per appropriate method or user-defined Barometric Pressure Built-in barometric pressure gauge; flash temperature data automatically corrected for barometric pressure Interface Large 6”, full graphic, 128 color TFT touch screen; operation of instrument is controlled via touch-screen; connection of external keyboard also possible Cooling Built-in ventilation; external cooling block (Pensky-Martens only) or cooling connection (TAG and Abel) available for sub-ambient testing, see Options & Accessories below Password Security Multi-level password protection Documentation Local on-screen display (on Base Unit); Base Unit locally stores up to 300 test results and up to 20 standard pre-programmed and user-defined methods; parallel port for optional printer; RS 232 serial port

ACCESSORIES

Diagnostics & Calibration Built-in comprehensive diagnostics program checks every key component and assembly; routine calibration procedures, including self-calibration of sample temperature measuring system Small Volume (20ml) Testing
(HFP 360 Pensky Martens only) – Sample Cup for small volume (20ml) testing
P/N 302-029 – Sample Cup Cover , electric ignition only
P/N 103-066 Utility Requirements 115 or 230 VAC, 50/60 Hz, 1100 watts Sub-Ambient Testing
(Flash Point below 40ºC) – HFP 360 Pensky Martens: cooling block test cup - cooled with dry ice Dimensions & Weight 25 cm W x 56 cm D x 51 cm H (24 kg) 9.85” W x 22” D x 20.1” H (53 lbs)
P/N 302-027 - cooled with built-in coil, for use with external chiller
P/N 302-028 – HFP 362 TAG & HFP 364 Abel: modules are available with quick-coupling cooling connections. For P/N see standard quotation
Due to continuing product development, specifications subject to change at any time without notice. All Herzog products are External KeyboardCertified Reference Material
compliant. – Wide range of CRM flash point performance material is available from PAC Germany Badstrasse 3-5, P.O. Box 1241 D-97912 Lauda-Königshofen
