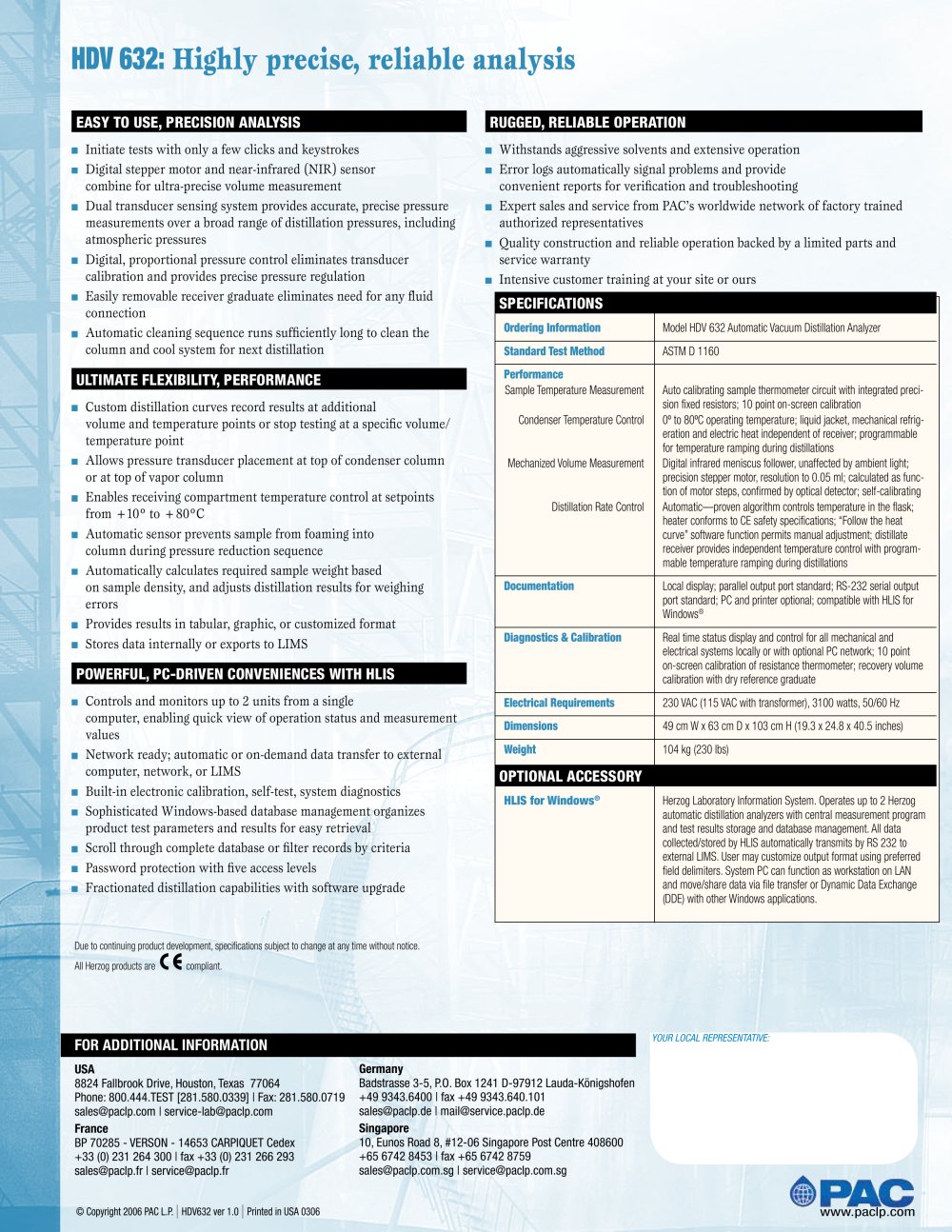

HDV 632: Highly precise, reliable analysis

EASY TO USE, PRECISION ANALYSIS RUGGED, RELIABLE OPERATION

Initiate tests with only a few clicks and keystrokes Withstands aggressive solvents and extensive operation Digital stepper motor and near-infrared (NIR) sensor combine for ultra-precise volume measurement Error logs automatically signal problems and provide convenient reports for verification and troubleshooting Dual transducer sensing system provides accurate, precise pressure measurements over a broad range of distillation pressures, including atmospheric pressures Expert sales and service from PAC’s worldwide network of factory trained authorized representatives Quality construction and reliable operation backed by a limited parts and service warranty Digital, proportional pressure control eliminates transducer calibration and provides precise pressure regulation Intensive customer training at your site or ours Easily removable receiver graduate eliminates need for any fluid connection

SPECIFICATIONS

Automatic cleaning sequence runs sufficiently long to clean the column and cool system for next distillation

Ordering Information Model HDV 632 Automatic Vacuum Distillation Analyzer Standard Test Method ASTM D 1160

ULTIMATE FLEXIBILITY, PERFORMANCE

Performance Sample Temperature Measurement Auto calibrating sample thermometer circuit with integrated preci-sion fixed resistors; 10 point on-screen calibration Condenser Temperature Control 0º to 80ºC operating temperature; liquid jacket, mechanical refrig-eration and electric heat independent of receiver; programmable for temperature ramping during distillations Mechanized Volume Measurement Digital infrared meniscus follower, unaffected by ambient light; precision stepper motor, resolution to 0.05 ml; calculated as func- tion of motor steps, confirmed by optical detector; self-calibrating Distillation Rate Control Automatic—proven algorithm controls temperature in the flask; heater conforms to CE safety specifications; “Follow the heat curve” software function permits manual adjustment; distillate receiver provides independent temperature control with program- mable temperature ramping during distillations

Custom distillation curves record results at additional volume and temperature points or stop testing at a specific volume/ temperature point Allows pressure transducer placement at top of condenser column or at top of vapor column Enables receiving compartment temperature control at setpoints from +10º to +80ºC Automatic sensor prevents sample from foaming into column during pressure reduction sequence Automatically calculates required sample weight based on sample density, and adjusts distillation results for weighing errors

Documentation Local display; parallel output port standard; RS-232 serial output port standard; PC and printer optional; compatible with HLIS for Windows
®

Provides results in tabular, graphic, or customized format Stores data internally or exports to LIMS

Diagnostics & Calibration Real time status display and control for all mechanical and electrical systems locally or with optional PC network; 10 point on-screen calibration of resistance thermometer; recovery volume calibration with dry reference graduate

POWERFUL, PC-DRIVEN CONVENIENCES WITH HLIS

Controls and monitors up to 2 units from a single computer, enabling quick view of operation status and measurement values

Electrical Requirements 230 VAC (115 VAC with transformer), 3100 watts, 50/60 Hz Dimensions 49 cm W x 63 cm D x 103 cm H (19.3 x 24.8 x 40.5 inches)

Network ready; automatic or on-demand data transfer to external computer, network, or LIMS

Weight 104 kg (230 lbs)

OPTIONAL ACCESSORY

Built-in electronic calibration, self-test, system diagnostics

HLIS for Windows
® Herzog Laboratory Information System. Operates up to 2 Herzog automatic distillation analyzers with central measurement program and test results storage and database management. All data collected/stored by HLIS automatically transmits by RS 232 to external LIMS. User may customize output format using preferred field delimiters. System PC can function as workstation on LAN and move/share data via file transfer or Dynamic Data Exchange (DDE) with other Windows applications.

Sophisticated Windows-based database management organizes product test parameters and results for easy retrieval Scroll through complete database or filter records by criteria Password protection with five access levels Fractionated distillation capabilities with software upgrade

Due to continuing product development, specifications subject to change at any time without notice.All Herzog products are compliant. Germany Badstrasse 3-5, P.O. Box 1241 D-97912 Lauda-Königshofen
