HCP 852 - AUTOMATIC CLOUD & POUR POINT TESTER - 2 Pages

  1. P. 1

  2. P. 2

Catalogue excerpts

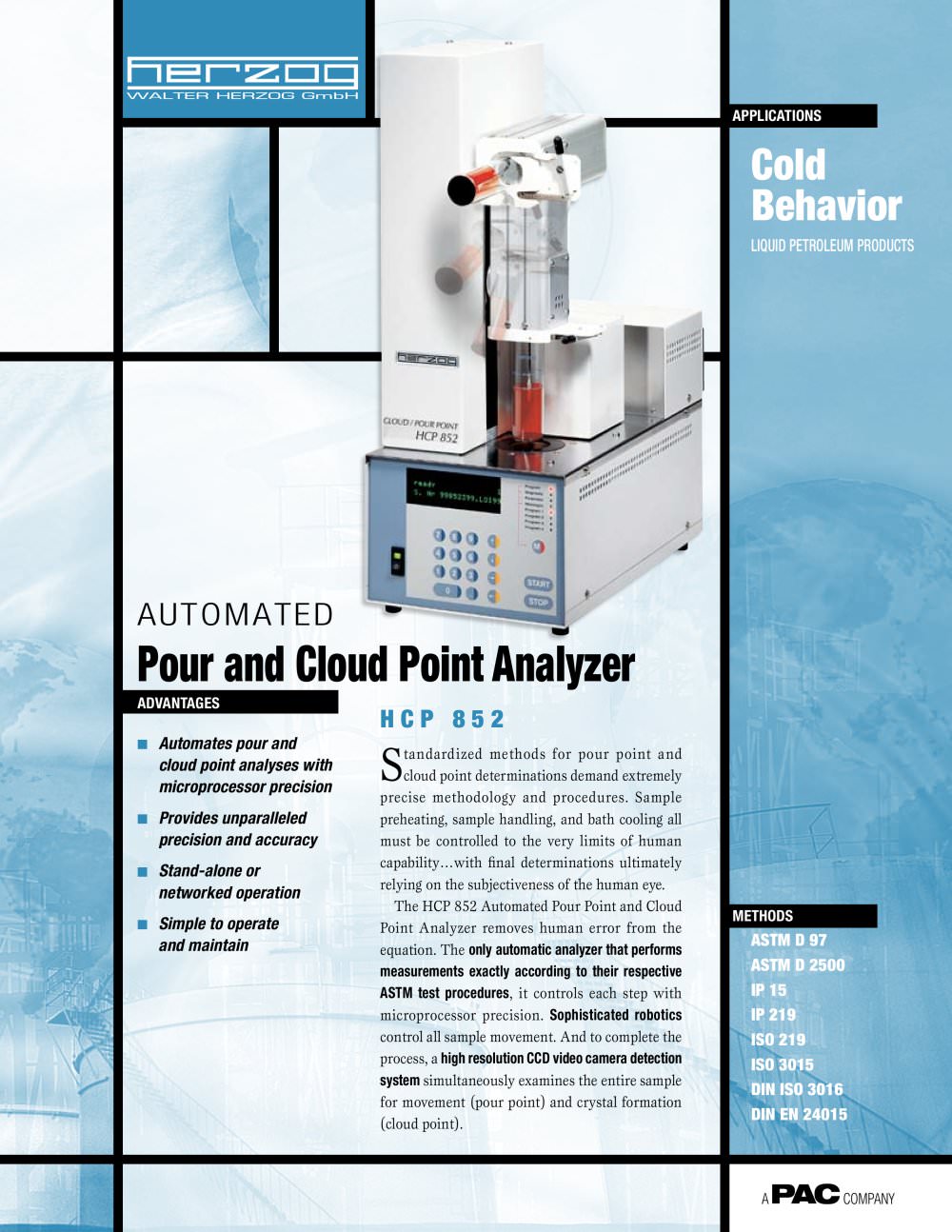

only automatic analyzer that performs measurements exactly according to their respective ASTM test procedures , it controls each step with microprocessor precision. ADVANTAGES high resolution CCD video camera detection system control all sample movement. And to complete the process, a > simultaneously examines the entire sample for movement (pour point) and crystal formation (cloud point). > tandardized methods for pour point andcloud point determinations demand extremely precise methodology and procedures. Sample preheating, sample handling, and bath cooling all must be controlled to the very limits of human capabilitywith final determinations ultimately relying on the subjectiveness of the human eye. The HCP 852 Automated Pour Point and Cloud Point Analyzer removes human error from the equation. The >

 Open the catalogue to page 1

Ordering Information Model HCP 852 Cloud & Pour Analyzer Standard Test Methods ASTM D 97 Pour Point ASTM D 2500 Cloud Point IP 15, IP 219, ISO 219, ISO 3015, DIN ISO 3016, DIN EN 24015 > Optical Detection System CCD video camera > Performance Measuring Range -80 to +50ںC (-112 to 122F) Sample Heating ASTM or user-defined Sample Cooling ASTM or user-defined; temperature steps, constant rate, or delta temperature Initial Test Temperature ASTM or user-defined Test Frequency ASTM or user-defined > Test Programs 4 total; unit ships with 2 preprogrammed ASTM methods; remaining programs may be defined...

 Open the catalogue to page 2
