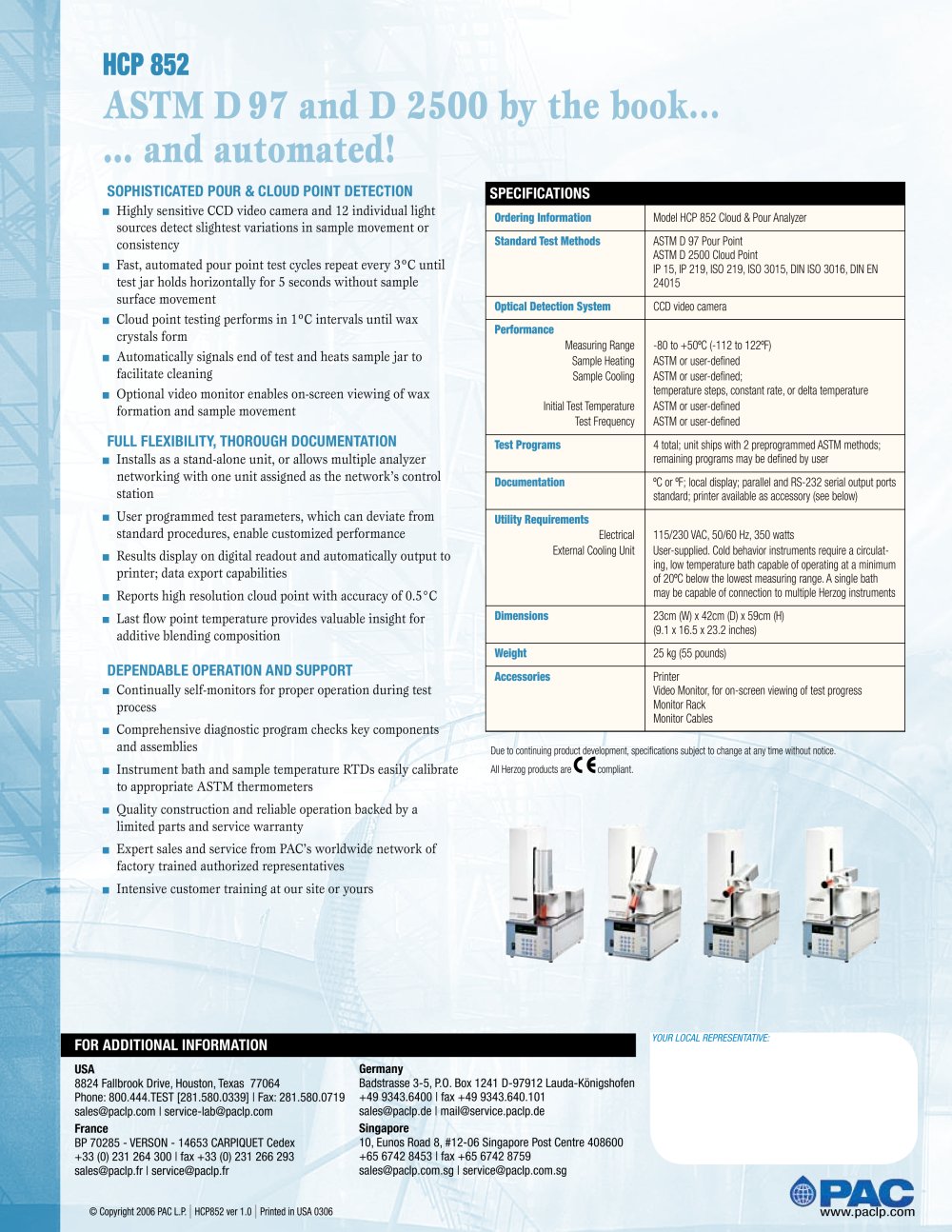

HCP 852

HCP 852 - AUTOMATIC CLOUD & POUR POINT TESTER - 9054 ASTM D 97 and D 2500 by the book… ... and automated!

SOPHISTICATED POUR & CLOUD POINT DETECTION SPECIFICATIONS

Highly sensitive CCD video camera and 12 individual light sources detect slightest variations in sample movement or consistency

Ordering Information Model HCP 852 Cloud & Pour Analyzer Standard Test Methods ASTM D 97 Pour Point ASTM D 2500 Cloud Point IP 15, IP 219, ISO 219, ISO 3015, DIN ISO 3016, DIN EN 24015

Fast, automated pour point test cycles repeat every 3ºC until test jar holds horizontally for 5 seconds without sample surface movement

Optical Detection System CCD video camera

Cloud point testing performs in 1ºC intervals until wax crystals form

Performance Measuring Range -80 to +50ºC (-112 to 122ºF) Sample Heating ASTM or user-defined Sample Cooling ASTM or user-defined; temperature steps, constant rate, or delta temperature Initial Test Temperature ASTM or user-defined Test Frequency ASTM or user-defined

Automatically signals end of test and heats sample jar to facilitate cleaning Optional video monitor enables on-screen viewing of wax formation and sample movement

FULL FLEXIBILITY, THOROUGH DOCUMENTATION

Test Programs 4 total; unit ships with 2 preprogrammed ASTM methods; remaining programs may be defined by user

Installs as a stand-alone unit, or allows multiple analyzer networking with one unit assigned as the network’s control station

Documentation ºC or ºF; local display; parallel and RS-232 serial output ports standard; printer available as accessory (see below)

User programmed test parameters, which can deviate from standard procedures, enable customized performance

Utility Requirements Electrical 115/230 VAC, 50/60 Hz, 350 watts External Cooling Unit User-supplied. Cold behavior instruments require a circulat-ing, low temperature bath capable of operating at a minimum of 20ºC below the lowest measuring range. A single bath may be capable of connection to multiple Herzog instruments

Results display on digital readout and automatically output to printer; data export capabilities Reports high resolution cloud point with accuracy of 0.5°C Last flow point temperature provides valuable insight for additive blending composition

Dimensions 23cm (W) x 42cm (D) x 59cm (H) (9.1 x 16.5 x 23.2 inches) Weight 25 kg (55 pounds)

DEPENDABLE OPERATION AND SUPPORT

Accessories Printer Video Monitor, for on-screen viewing of test progress Monitor Rack Monitor Cables

Continually self-monitors for proper operation during test process Comprehensive diagnostic program checks key components and assemblies

Due to continuing product development, specifications subject to change at any time without notice.All Herzog products are

Instrument bath and sample temperature RTDs easily calibrate to appropriate ASTM thermometers

compliant.

Quality construction and reliable operation backed by a limited parts and service warranty Expert sales and service from PAC’s worldwide network of factory trained authorized representatives Intensive customer training at our site or yours
