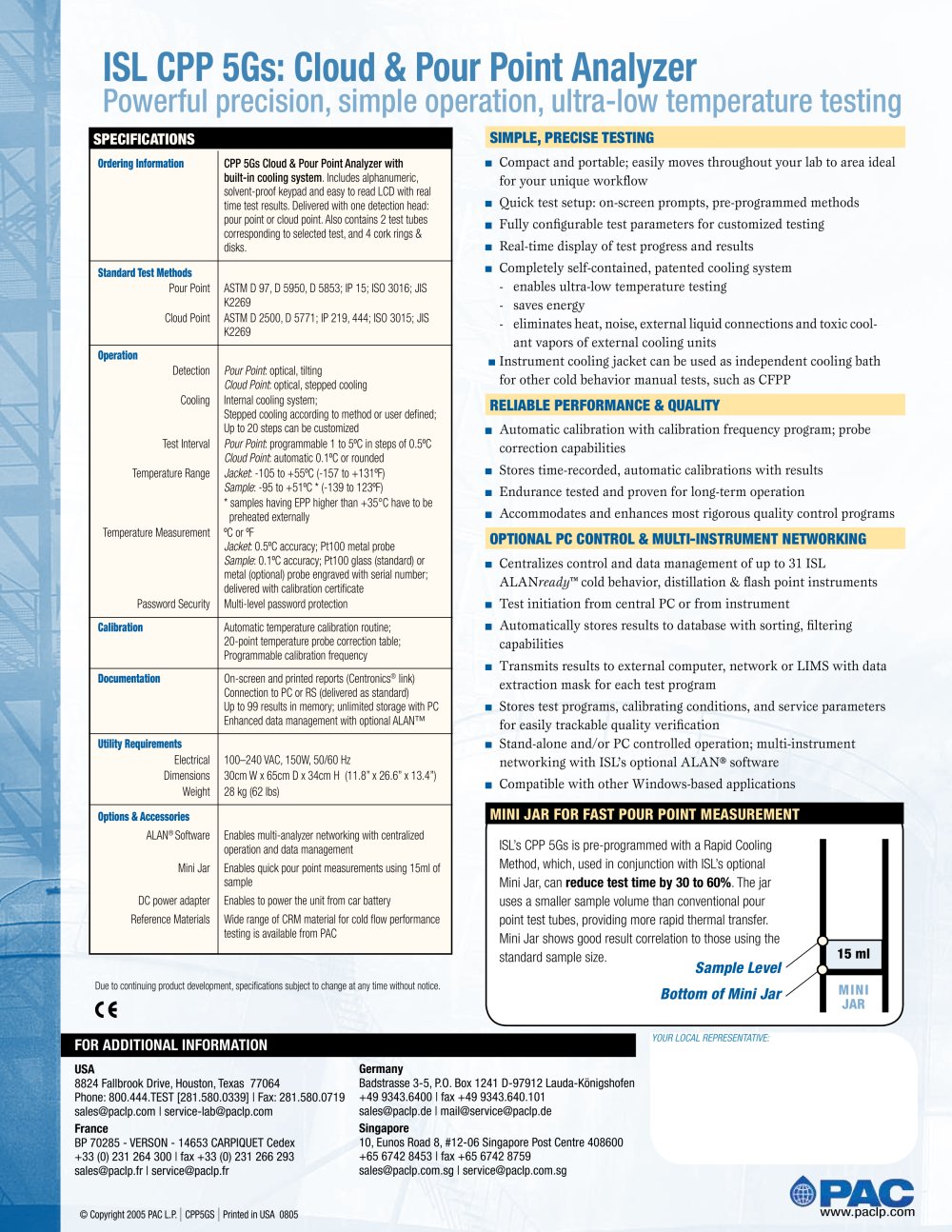

ISL CPP 5Gs: Cloud & Pour Point Analyzer

Powerful precision, simple operation, ultra-low temperature testing

SPECIFICATIONS SIMPLE, PRECISE TESTING

Ordering Information CPP 5Gs Cloud & Pour Point Analyzer with built-in cooling system

Compact and portable; easily moves throughout your lab to area ideal for your unique workflow

. Includes alphanumeric, solvent-proof keypad and easy to read LCD with real time test results. Delivered with one detection head: pour point or cloud point. Also contains 2 test tubes corresponding to selected test, and 4 cork rings & disks.

Quick test setup: on-screen prompts, pre-programmed methods Fully configurable test parameters for customized testing Real-time display of test progress and results

Standard Test Methods Pour Point ASTM D 97, D 5950, D 5853; IP 15; ISO 3016; JIS K2269 Cloud Point ASTM D 2500, D 5771; IP 219, 444; ISO 3015; JIS K2269

Completely self-contained, patented cooling system - enables ultra-low temperature testing - saves energy - eliminates heat, noise, external liquid connections and toxic cool-ant vapors of external cooling units

Operation Detection Pour Point : optical, tilting

Instrument cooling jacket can be used as independent cooling bath for other cold behavior manual tests, such as CFPP

Cloud Point : optical, stepped cooling Cooling Internal cooling system; Stepped cooling according to method or user defined; Up to 20 steps can be customized Test Interval Pour Point : programmable 1 to 5ºC in steps of 0.5ºC

RELIABLE PERFORMANCE & QUALITY

Cloud Point : automatic 0.1ºC or rounded Temperature Range

Automatic calibration with calibration frequency program; probe correction capabilities

Jacket : -105 to +55ºC (-157 to +131ºF) Sample : -95 to +51ºC * (-139 to 123ºF) * samples having EPP higher than +35°C have to be preheated externally Temperature Measurement ºC or ºF

Stores time-recorded, automatic calibrations with results Endurance tested and proven for long-term operation

Jacket : 0.5ºC accuracy; Pt100 metal probe

Accommodates and enhances most rigorous quality control programs

Sample : 0.1ºC accuracy; Pt100 glass (standard) or metal (optional) probe engraved with serial number; delivered with calibration certificate Password Security Multi-level password protection

OPTIONAL PC CONTROL & MULTI-INSTRUMENT NETWORKING

Centralizes control and data management of up to 31 ISL ALAN ready ™ cold behavior, distillation & flash point instruments Test initiation from central PC or from instrument

Calibration Automatic temperature calibration routine; 20-point temperature probe correction table; Programmable calibration frequency

Automatically stores results to database with sorting, filtering capabilities

®

Transmits results to external computer, network or LIMS with data extraction mask for each test program

Documentation On-screen and printed reports (Centronics link) Connection to PC or RS (delivered as standard) Up to 99 results in memory; unlimited storage with PC Enhanced data management with optional ALAN™

Stores test programs, calibrating conditions, and service parameters for easily trackable quality verification

Utility Requirements Electrical 100–240 VAC, 150W, 50/60 Hz Dimensions 30cm W x 65cm D x 34cm H (11.8” x 26.6” x 13.4”) Weight 28 kg (62 lbs)

Stand-alone and/or PC controlled operation; multi-instrument networking with ISL’s optional ALAN® software Compatible with other Windows-based applications

Options & Accessories ALAN

MINI JAR FOR FAST POUR POINT MEASUREMENT

® Software Enables multi-analyzer networking with centralized operation and data management Mini Jar Enables quick pour point measurements using 15ml of sample DC power adapter Enables to power the unit from car battery Reference Materials Wide range of CRM material for cold flow performance testing is available from PAC

ISL’s CPP 5Gs is pre-programmed with a Rapid Cooling Method, which, used in conjunction with ISL’s optional Mini Jar, can reduce test time by 30 to 60% . The jar uses a smaller sample volume than conventional pour point test tubes, providing more rapid thermal transfer. Mini Jar shows good result correlation to those using the standard sample size.

Germany

15 ml

Badstrasse 3-5, P.O. Box 1241 D-97912 Lauda-Königshofen

Sample LevelBottom of Mini Jar

Due to continuing product development, specifications subject to change at any time without notice.

MINI JAR

FOR ADDITIONAL INFORMATION

YOUR LOCAL REPRESENTATIVE: USA France 8824 Fallbrook Drive, Houston, Texas 77064 Phone: 800.444.TEST [281.580.0339] | Fax: 281.580.0719 sales@paclp.com | service-lab@paclp.com BP 70285 - VERSON - 14653 CARPIQUET Cedex +33 (0) 231 264 300 | fax +33 (0) 231 266 293 sales@paclp.fr | service@paclp.fr +49 9343.6400 | fax +49 9343.640.101 sales@paclp.de | mail@service@paclp.de Singapore 10, Eunos Road 8, #12-06 Singapore Post Centre 408600 +65 6742 8453 | fax +65 6742 8759 sales@paclp.com.sg | service@paclp.com.sg
© Copyright 2005 PAC L.P.

|

CPP5GS

|

Printed in USA 0805 www.paclp.com
