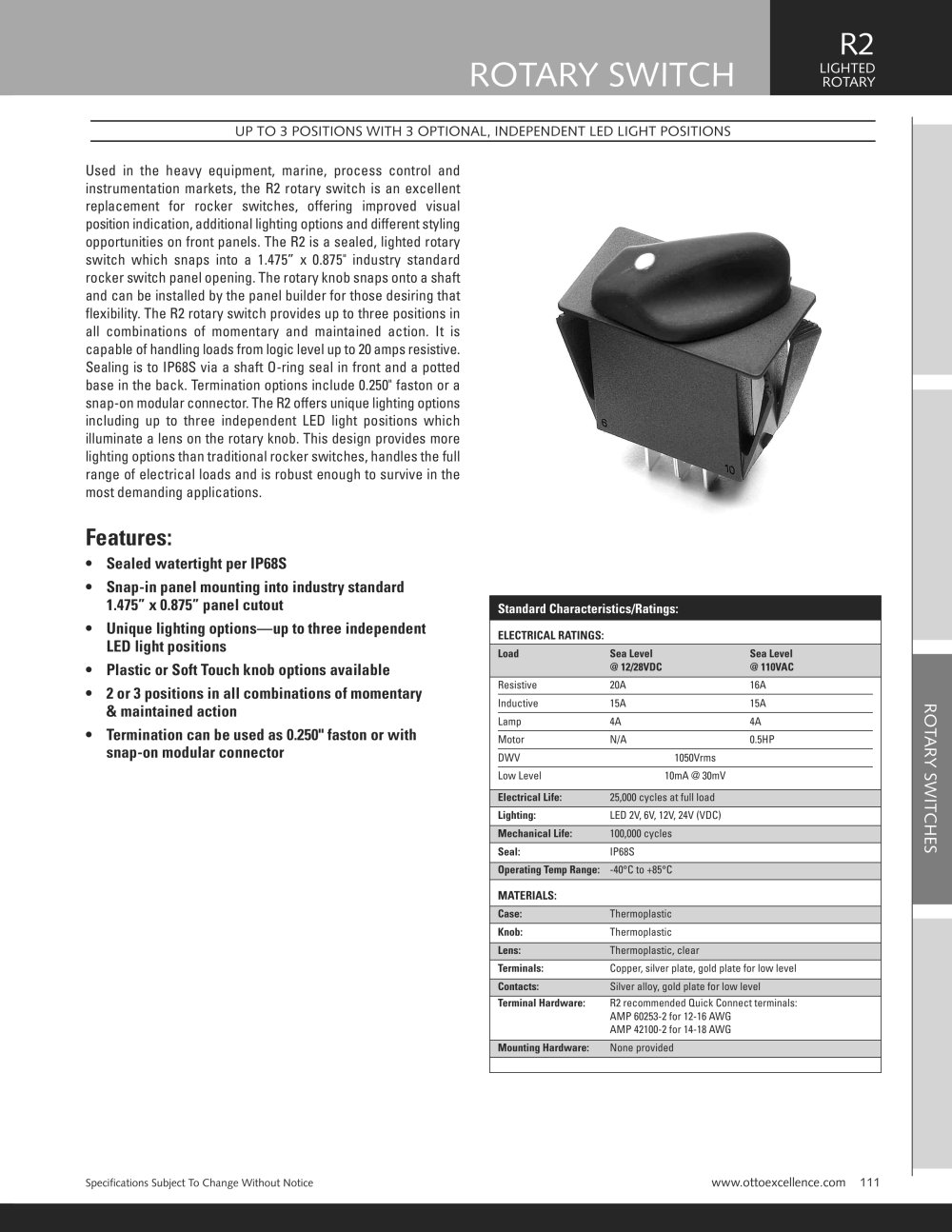

ROTARY SWITCH LIGHTED
ROTARY
R2
Specifications Subject To Change Without Notice www.ottoexcellence.com 111
ROTARY SWITCHES
UP TO 3 POSITIONS WITH 3 OPTIONAL, INDEPENDENT LED LIGHT POSITIONS
Used in the heavy equipment, marine, process control and
instrumentation markets, the R2 rotary switch is an excellent
replacement for
rocker switches, offering improved visual
position indication, additional lighting options and different styling
opportunities on front panels. The R2 is a sealed, lighted rotary
switch which snaps into a 1.475” x 0.875" industry standard
rocker switch panel opening. The rotary knob snaps onto a shaft
and can be installed by the panel builder for those desiring that
flexibility. The R2 rotary switch provides up to three positions in
all combinations of momentary and maintained action. It is
capable of handling loads fromlogic level up to 20 amps resistive.
Sealing is to IP68S via a shaft O-ring seal in front and a potted
base in the back. Termination options include 0.250" faston or a
snap-on modular connector. The R2 offers unique lighting options
including up to three independent LED light positions which
illuminate a lens on the rotary knob. This design provides more
lighting options than traditional
rocker switches, handles the full
range of electrical loads and is robust enough to survive in the
most demanding applications.
Features:
• Sealed watertight per IP68S
• Snap-in panel mounting into industry standard
1.475” x 0.875” panel cutout
• Unique lighting options—up to three independent
LED light positions
• Plastic or Soft Touch knob options available
• 2 or 3 positions in all combinations of momentary
& maintained action
• Termination can be used as 0.250" faston or with
snap-on modular connector
Standard Characteristics/Ratings:
ELECTRICAL RATINGS:
Load Sea Level Sea Level
@ 12/28VDC @ 110VAC
Resistive 20A 16A
Inductive 15A 15A
Lamp 4A 4A
Motor N/A 0.5HP
DWV 1050Vrms
Low Level 10mA @ 30mV
Electrical Life: 25,000 cycles at full load
Lighting: LED 2V, 6V, 12V, 24V (VDC)
Mechanical Life: 100,000 cycles
Seal: IP68S
Operating Temp Range: -40°C to +85°C
MATERIALS:
Case: Thermoplastic
Knob: Thermoplastic
Lens: Thermoplastic, clear
Terminals: Copper, silver plate, gold plate for low level
Contacts: Silver alloy, gold plate for low level
Terminal Hardware: R2 recommended Quick Connect terminals:
AMP 60253-2 for 12-16 AWG
AMP 42100-2 for 14-18 AWG
Mounting Hardware: None provided
