P6 Sealed Limit Switches
3Pages

{{requestButtons}}

Catalog excerpts

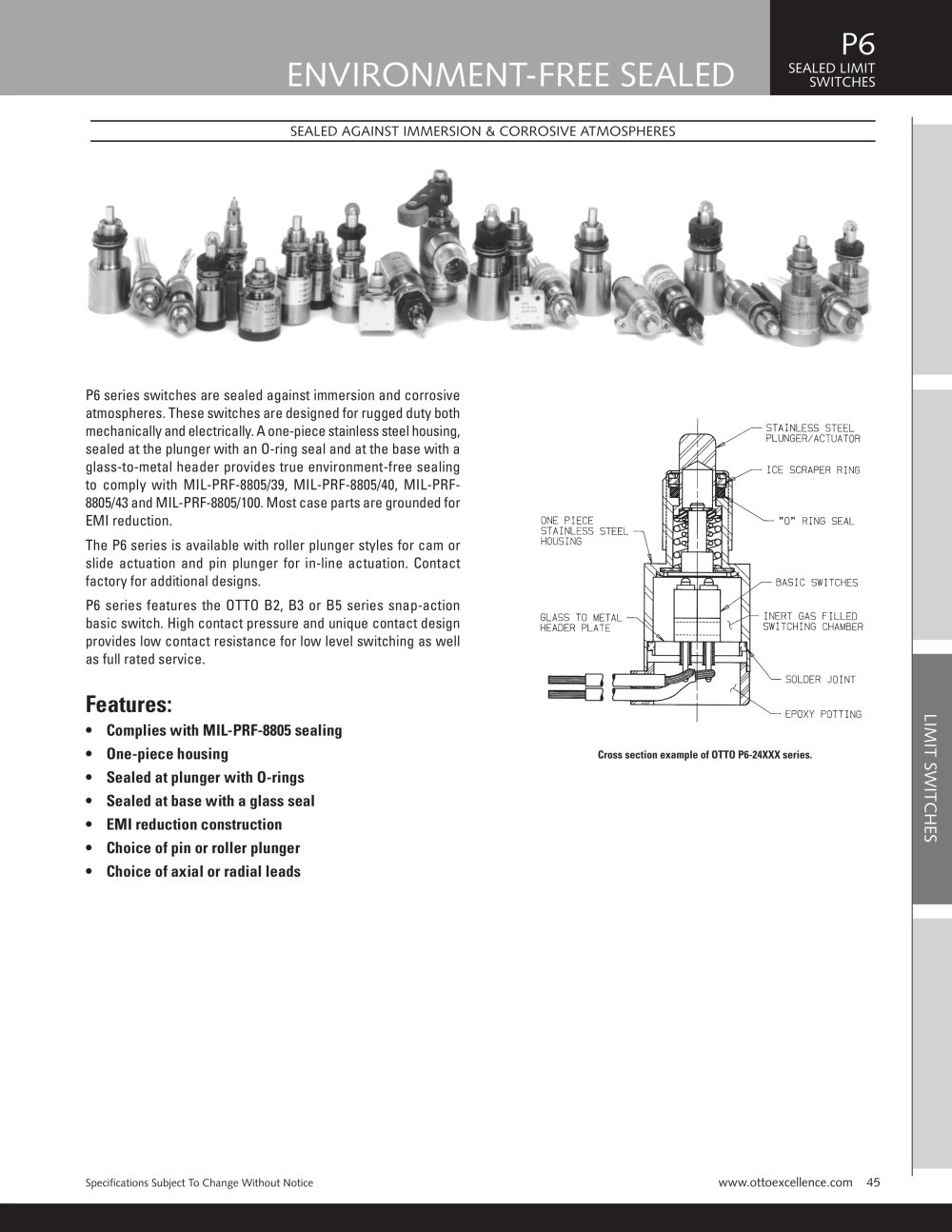

P6 Sealed Limit Switches - 1

ENVIRONMENT-FREE SEALED SEALED LIMIT SWITCHES P6 Specifications Subject To Change Without Notice www.ottoexcellence.com 45 LIMIT SWITCHES SEALED AGAINST IMMERSION & CORROSIVE ATMOSPHERES P6 series switches are sealed against immersion and corrosive atmospheres. These switches are designed for rugged duty both mechanically and electrically. A one-piece stainless steel housing, sealed at the plunger with an O-ring seal and at the base with a glass-to-metal header provides true environment-free sealing to comply with MIL-PRF-8805/39, MIL-PRF-8805/40, MIL-PRF- 8805/43 andMIL-PRF-8805/100.Most case parts are grounded for EMI reduction. The P6 series is available with roller plunger styles for cam or slide actuation and pin plunger for in-line actuation. Contact factory for additional designs. P6 series features the OTTO B2, B3 or B5 series snap-action basic switch. High contact pressure and unique contact design provides low contact resistance for low level switching as well as full rated service. Features: • Complies with MIL-PRF-8805 sealing • One-piece housing • Sealed at plunger with O-rings • Sealed at base with a glass seal • EMI reduction construction • Choice of pin or roller plunger • Choice of axial or radial leads Cross section example of OTTO P6-24XXX series.

Open the catalog to page 1
P6 Sealed Limit Switches - 2

LIMIT SEALED LIMIT SWITCHES SWITCHES P6 46 OTTO Full Line Catalog Specifications Subject To Change Without Notice FEATURING OTTO B2 & B3 SERIES BASIC SWITCHES Style A Pin Plunger Radial Leads Style C Pin Plunger Axial Leads Style B Roller Plunger Radial Leads Style D Roller Plunger Axial Leads

Open the catalog to page 2
