LP3 - Illuminated, Sealed, Momentary Action
3Pages

{{requestButtons}}

Catalog excerpts

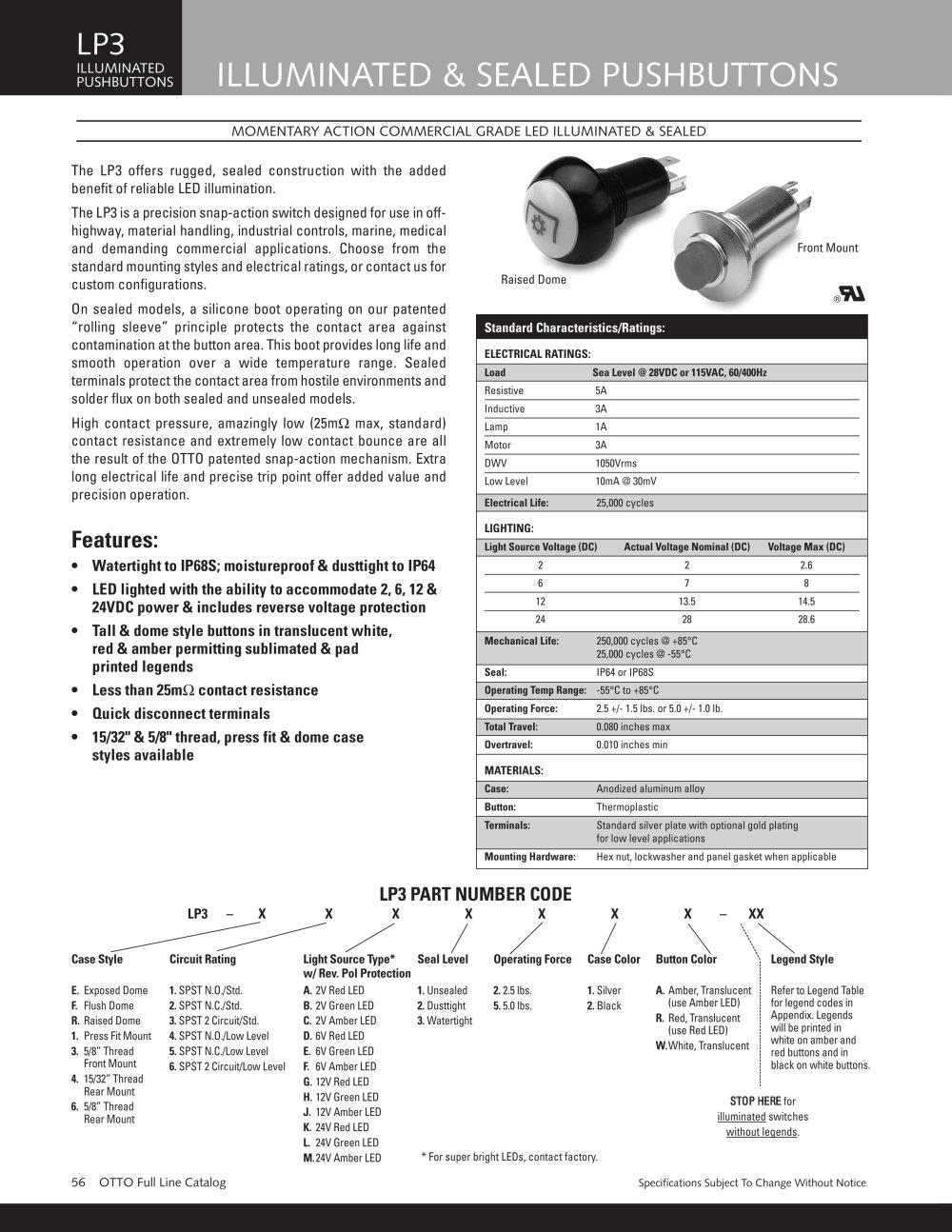

LP3 - Illuminated, Sealed, Momentary Action - 1

ILLUMINATED ILLUMINATED & SEALED PUSHBUTTONS PUSHBUTTONS LP3 56 OTTO Full Line Catalog Specifications Subject To Change Without Notice MOMENTARY ACTION COMMERCIAL GRADE LED ILLUMINATED & SEALED The LP3 offers rugged, sealed construction with the added benefit of reliable LED illumination. The LP3 is a precision snap-action switch designed for use in offhighway, material handling, industrial controls, marine, medical and demanding commercial applications. Choose from the standard mounting styles and electrical ratings, or contact us for custom configurations. On sealed models, a silicone boot operating on our patented “rolling sleeve” principle protects the contact area against contamination at the button area. This boot provides long life and smooth operation over a wide temperature range. Sealed terminals protect the contact area from hostile environments and solder flux on both sealed and unsealed models. High contact pressure, amazingly low (25mÙ max, standard) contact resistance and extremely low contact bounce are all the result of the OTTO patented snap-action mechanism. Extra long electrical life and precise trip point offer added value and precision operation. Features: • Watertight to IP68S; moistureproof & dusttight to IP64 • LED lighted with the ability to accommodate 2, 6, 12 & 24VDC power & includes reverse voltage protection • Tall & dome style buttons in translucent white, red & amber permitting sublimated & pad printed legends • Less than 25mÙ contact resistance • Quick disconnect terminals • 15/32" & 5/8" thread, press fit & dome case styles available Raised Dome Front Mount Standard Characteristics/Ratings: ELECTRICAL RATINGS: Load Sea Level @ 28VDC or 115VAC, 60/400Hz Resistive 5A Inductive 3A Lamp 1A Motor 3A DWV 1050Vrms Low Level 10mA @ 30mV Electrical Life: 25,000 cycles LIGHTING: Light Source Voltage (DC) Actual Voltage Nominal (DC) Voltage Max (DC) 2 2 2.6 6 7 8 12 13.5 14.5 24 28 28.6 Mechanical Life: 250,000 cycles @ +85°C 25,000 cycles @ -55°C Seal: IP64 or IP68S Operating Temp Range: -55°C to +85°C Operating Force: 2.5 +/- 1.5 lbs. or 5.0 +/- 1.0 lb. Total Travel: 0.080 inches max Overtravel: 0.010 inches min MATERIALS: Case: Anodized aluminum alloy Button: Thermoplastic Terminals: Standard silver plate with optional gold plating for low level applications Mounting Hardware: Hex nut, lockwasher and panel gasket when applicable Case Style Circuit Rating Light Source Type* w/ Rev. Pol Protection Seal Level Operating Force Case Color Button Color Legend Style E. Exposed Dome F. Flush Dome R. Raised Dome 1. Press FitMount 3. 5/8” Thread FrontMount 4. 15/32” Thread RearMount 6. 5/8” Thread RearMount 1. SPST N.O./Std. 2. SPST N.C./Std. 3. SPST 2 Circuit/Std. 4. SPST N.O./Low Level 5. SPST N.C./Low Level 6. SPST 2 Circuit/Low Level A. 2V Red LED B. 2V Green LED C. 2V Amber LED D. 6V Red LED E. 6V Green LED F. 6V Amber LED G. 12V Red LED H. 12V Green LED J. 12V Amber LED K. 24V Red LED L. 24V Green LED M.24V Amber LED 1. Unsealed 2. Dusttight 3.Watertight 2. 2.5 lbs. 5. 5.0 lbs. 1. Silver 2. Black A. Amber, Translucent (use Amber LED) R. Red, Translucent (use Red LED) W.White, Translucent Refer to Legend Table for legend codes in Appendix. Legends will be printed in white on amber and red buttons and in black on white buttons. LP3 PART NUMBER CODE LP3 – X X X X X X X – XX * For super bright LEDs, contact factory. STTOOP HHEEREE for illuminated switches without legends. ®

Open the catalog to page 1
LP3 - Illuminated, Sealed, Momentary Action - 2

Specifications Subject To Change Without Notice www.ottoexcellence.com 57 PUSHBUTTONS NORMALLY OPEN TERMINALS NORMALLY CLOSED TERMINALS .380 REF. .020 (TYP) Ø .570 .110 (TYP) 2.150 MAX. 1.838 MAX. .250 .25 1.408 REF. .312 REF. LED ANODE (+) LED CATHODE (-) Ø .500 Ø .375 Ø .624 ±.001 LP3-1 Momentary, Press Fit Mount NOTE: For indicator light only, see LP5 series. NORMALLY OPEN TERMINALS NORMALLY CLOSED TERMINALS .380 REF. Ø .570 LED ANODE (+) LED CATHODE (-) .020 (TYP) Ø 1.046 Ø .730 .062 .44 .442 REF. .110 (TYP) 1.677 MAX. 2.120 MAX. .625-24 UNEF-2A THD. TO WITHIN .062 OF FLANGE LP3-E 1.247...

Open the catalog to page 2
LP3 - Illuminated, Sealed, Momentary Action - 3

58 OTTO Full Line Catalog Specifications Subject To Change Without Notice ILLUMINATED & ILLUMINATED SEALED PUSHBUTTONS PUSHBUTTONS LP3 MOMENTARY ACTION COMMERCIAL GRADE LED ILLUMINATED & SEALED NORMALLY OPEN TERMINALS NORMALLY CLOSED TERMINALS LED ANODE (+) LED CATHODE (-) Ø .570 .110 (TYP) .020 (TYP) 1.033 REF. .687 REF. 2.150 MAX. 1.463 MAX. .375 Ø .375 .25 Ø .875 Ø .500 .380 REF. .625-24 UNEF-2A THD. TO WITHIN .062 OF FLANGE LP3-6 Momentary, 5/8” Threaded Rear Mount NOTE: For indicator light only, see LP5 series. NORMALLY OPEN TERMINALS NORMALLY CLOSED TERMINALS Ø .570 LED ANODE (+) LED...

Open the catalog to page 3
