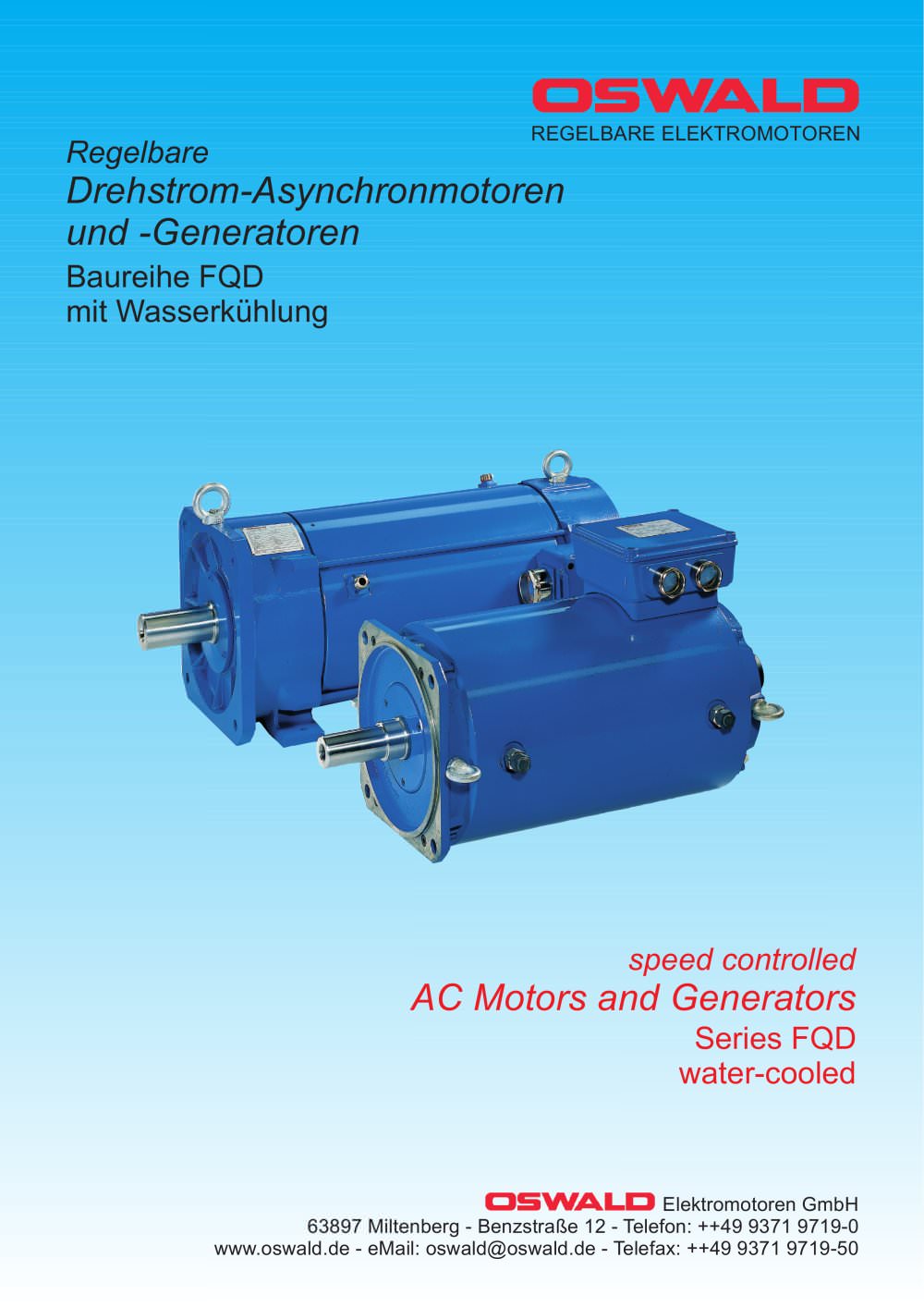

Speed controlled AC Motors and Generators
6Pages

REGELBARE ELEKTROMOTOREN speed controlled OSWALD Elektromotoren GmbH www.oswald.de - eMail: oswald@oswald.de - Telefax: ++49 9371 9719-50

Technical data series FQD Technische Daten Baureihe FQD Power and torque characteristic Leistungs- und Drehmomentdiagramm Speed Drehzahl Other voltage and speed Higher maximum speed with adapted developments on request 31 max. 700kW see separate data sheet Andere Spannung und Drehzahl auf Anfrage Höhere Maximaldrehzahlen durch angepafite Konstruktion auf Anfrage Technische Daten FQD25..31 max. 700kWgem. separatem Datenblatt OSWALD Elektromotoren GmbH

General description Liquid-cooled OSWALD asynchronous motors and generators series FQD are particularly suitable when heavy demands are placed on a drive system. The motors are designed for wide speed range and high dynamic operation. OSWALD 4-pole FQD motors in power ranges from 1kW to 700kW are characterized by a high power density with small space requirements. The totally enclosed FQD motors are cooled over the integrated cooling jacket by water or oil. A high degree of reliability and low maintainance requirements result from use of prelubricated bearings as well as stable housing and...

Insulatation class, enclosure - Insulation class F acc. to DIN EN 60034 / VDE 0530 (Winding temperature rise 105 K) - Winding insulation is designed for inverter operation, maximum voltage slopes of 5kV/µs at the motor terminals - Temperature monitoring: PTC-sensors (standard), thermal switches, NTC-sensors optional - Enclosure IP54 .. IP65 acc. to DIN EN60034/VDE 0530 - The position and orientation of the terminal box and the types of cables may be specified by the customer Vibration levels, balancing The FQD motors are supplied at least in vibration level R (reduced) acc. to DIN/EN...
