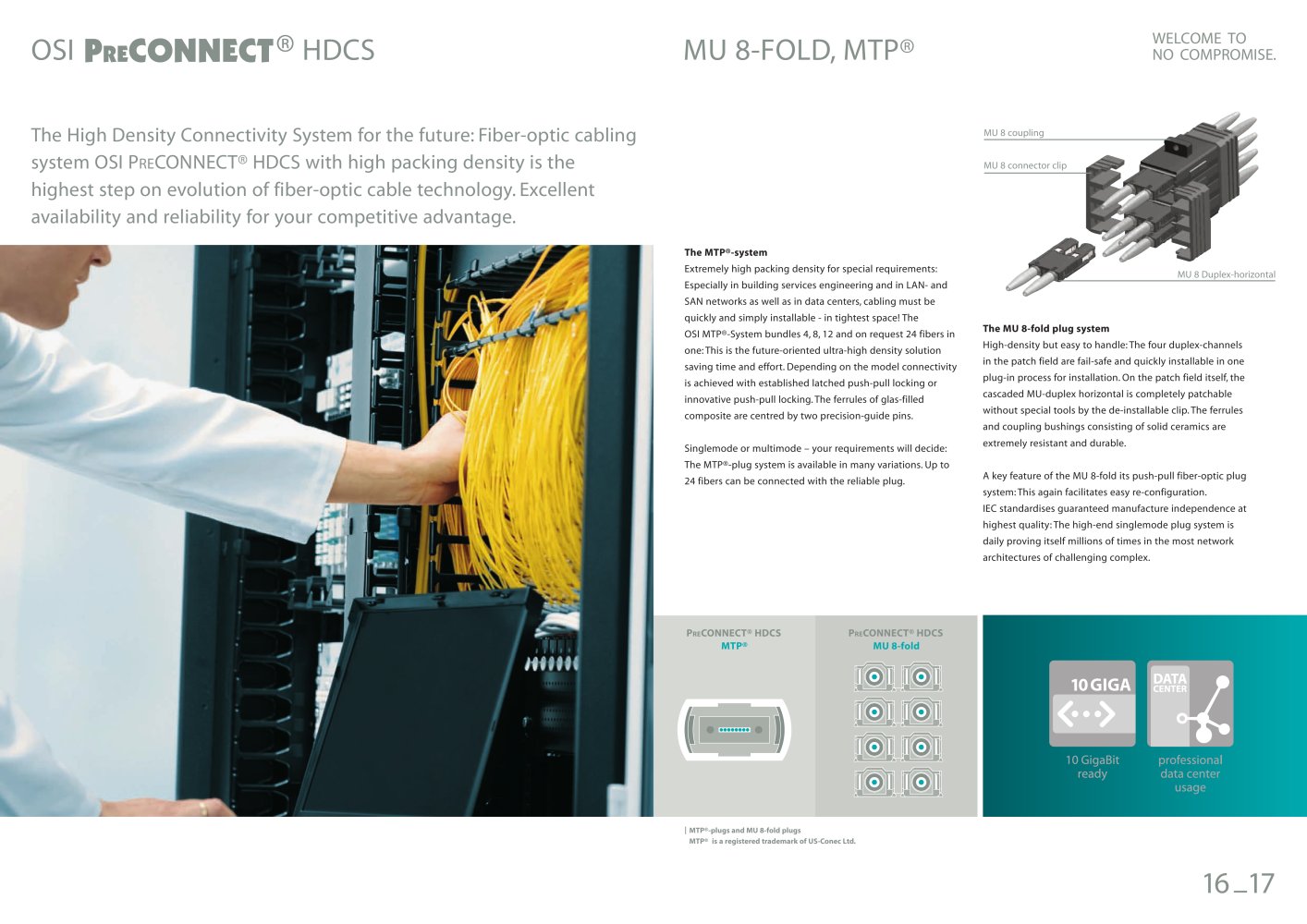

OSI HDCS MU 8-FOLD,MTP®

WELCOMETONOCOMPROMISE.

The High Density Connectivity System for the future:Fiber-optic cablingsystem OSI P

MU 8 couplingMU 8 connector clip

RE

CONNECT® HDCS with high packing density is the highest step on evolution of fiber-optic cable technology.Excellent availability and reliability for your competitive advantage.

The MTP®-system Extremely high packing density for special requirements: Especially in building services engineering and in LAN- and SAN networks as well as in data centers,cabling must be quickly and simply installable - in tightest space! The OSI MTP®-System bundles 4,8,12 and on request 24 fibers in one:This is the future-oriented ultra-high density solution saving time and effort.Depending on the model connectivity is achieved with established latched push-pull locking or innovative push-pull locking.The ferrules of glas-filled composite are centred by two precision-guide pins.Singlemode or multimode – your requirements will decide:The MTP®-plug system is available in many variations.Up to 24 fibers can be connected with the reliable plug.
MU 8 Duplex-horizontal The MU 8-fold plug system High-density but easy to handle:The four duplex-channels in the patch field are fail-safe and quickly installable in one plug-in process for installation.On the patch field itself,the cascaded MU-duplex horizontal is completely patchable without special tools bythe de-installable clip.The ferrules and coupling bushings consisting of solid ceramics are extremely resistant and durable.Akey feature of the MU 8-fold its push-pull fiber-optic plugsystem:This again facilitates easy re-configuration. IEC standardises guaranteed manufacture independence at highest quality:The high-end singlemode plug system is daily proving itself millions of times in the most network architectures of challenging complex. P
RE CONNECT® HDCSP
RE CONNECT® HDCS MTP® MU 8-fold
|MTP®-plugs and MU 8-fold plugsMTP®is a registered trademark of US-Conec Ltd.
