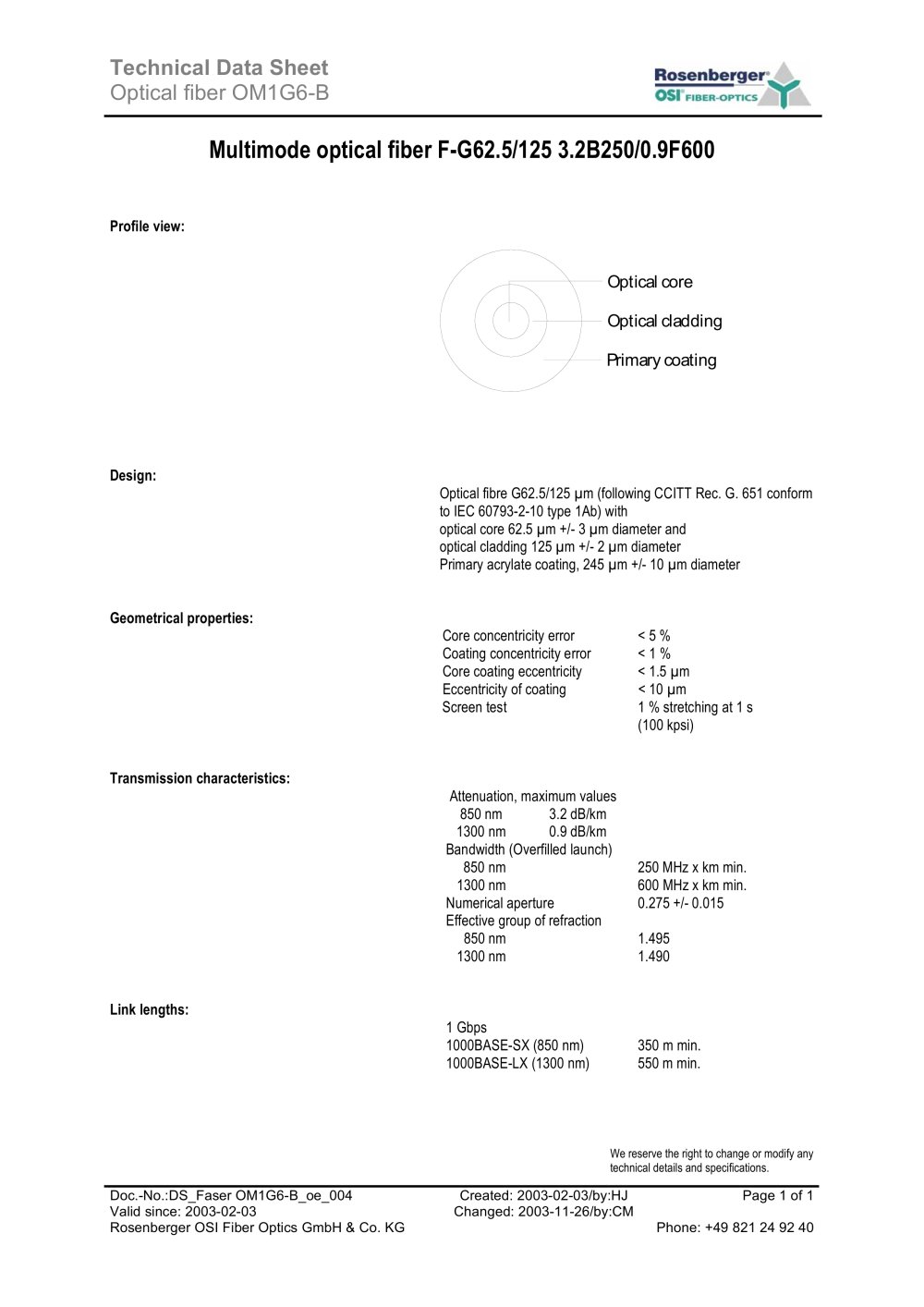

Technical Data Sheet Optical fiber OM1G6-B

Fiber Optic cables - 39229 Multimode optical fiber F-G62.5/125 3.2B250/0.9F600

Profile view: Design: Optical fibre G62.5/125 µm (following CCITT Rec. G. 651 conform to IEC 60793-2-10 type 1Ab) with optical core 62.5 µm +/- 3 µm diameter and optical cladding 125 µm +/- 2 µm diameter Primary acrylate coating, 245 µm +/- 10 µm diameter Core concentricity error

Optical coreOptical claddingPrimary coating

Transmission characteristics: Link lengths: 1 Gbps 1000BASE-SX (850 nm) 350 m min. 1000BASE-LX (1300 nm) 550 m min.
We reserve the right to change or modify any technical details and specifications. Doc.-No.:DS_Faser OM1G6-B_oe_004 Valid since: 2003-02-03 Created: 2003-02-03/by:HJ Changed: 2003-11-26/by:CM Page 1 of 1 Rosenberger OSI Fiber Optics GmbH & Co. KG Phone: +49 821 24 92 40
