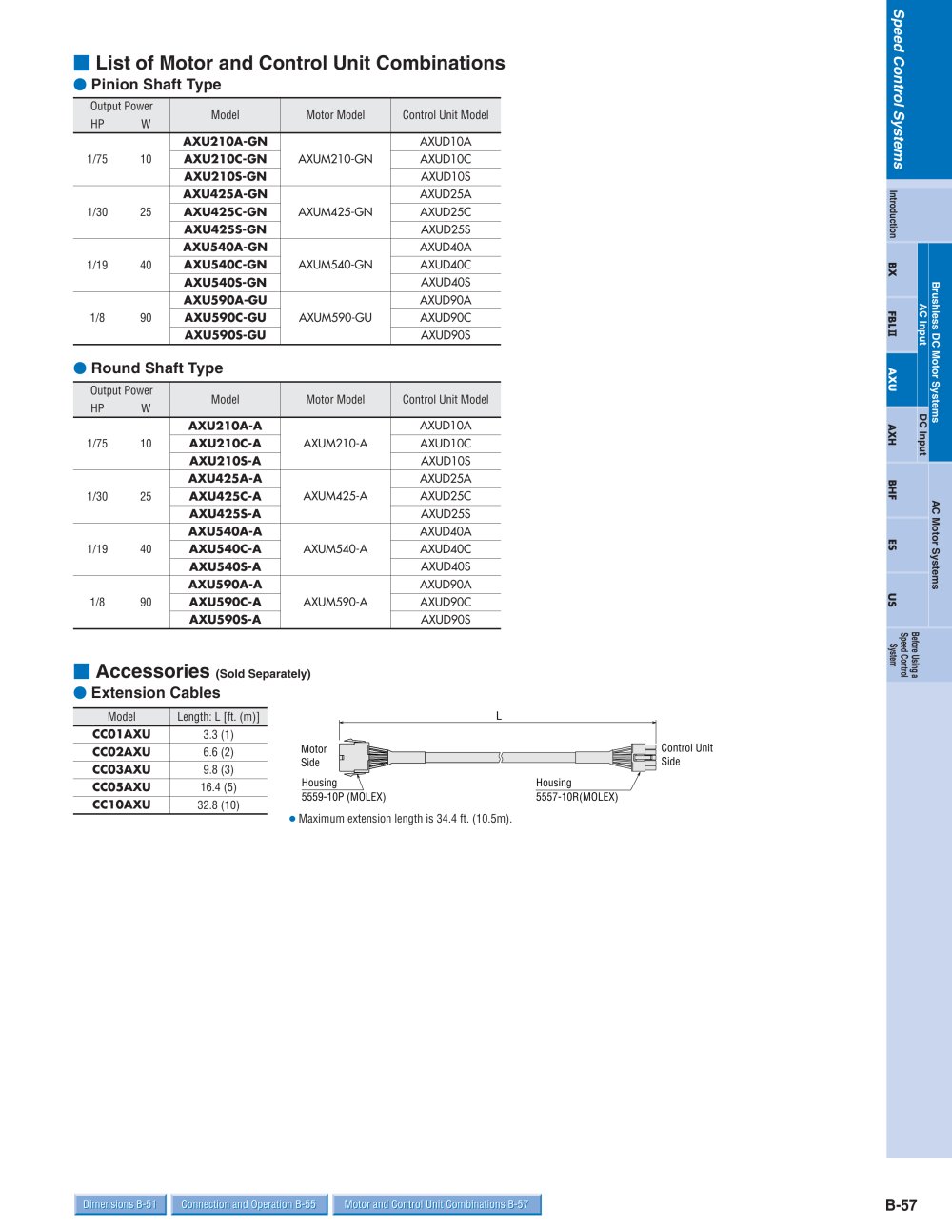

■ List of Motor and Control Unit

Pinion Shaft Type

Combinations

O 0 3


	Output Power HP W	Model	Motor Model	Control Unit Model
	1/75 10	AXU210A-GN	AXUM210-GN	AXUD10A
		AXU210C-GN		AXUD10C
		AXU210S-GN		AXUD10S
	1/30 25	AXU425A-GN	AXUM425-GN	AXUD25A
		AXU425C-GN		AXUD25C
		AXU425S-GN		AXUD25S
	1/19 40	AXU540A-GN	AXUM540-GN	AXUD40A
		AXU540C-GN		AXUD40C
		AXU540S-GN		AXUD40S
	1/8 90	AXU590A-GU	AXUM590-GU	AXUD90A
		AXU590C-GU		AXUD90C
		AXU590S-GU		AXUD90S
	• Round Shaft Type
	Output Power HP W	Model	Motor Model	Control Unit Model
	1/75 10	AXU210A-A	AXUM210-A	AXUD10A
		AXU210C-A		AXUD10C
		AXU210S-A		AXUD10S
	1/30 25	AXU425A-A	AXUM425-A	AXUD25A
		AXU425C-A		AXUD25C
		AXU425S-A		AXUD25S
	1/19 40	AXU540A-A	AXUM540-A	AXUD40A
		AXU540C-A		AXUD40C
		AXU540S-A		AXUD40S
	1/8 90	AXU590A-A	AXUM590-A	AXUD90A
		AXU590C-A		AXUD90C
		AXU590S-A		AXUD90S

(a

3

o a.

o

>

O

m

^yt

3

■ Accessories (Sold Separately) i Extension Cables

la


	Model	Length: L [ft. (m)]
	CC01AXU	3.3 (1)
	CC02AXU	6.6 (2)
	CC03AXU	9.8 (3)
	CC05AXU	16.4 (5)
	CC10AXU	32.8 (10)

L

Control Unit Side

Motor Side

C0

Housing

5559-10P (MOLEX) > Maximum extension length is 34.4 ft. (10.5m).

5557-10R(MOLEX)

B-57

Dimensions B-51 Connection and Operation B-55 Motor and Control Unit Combinations B-57
