(D (D CL

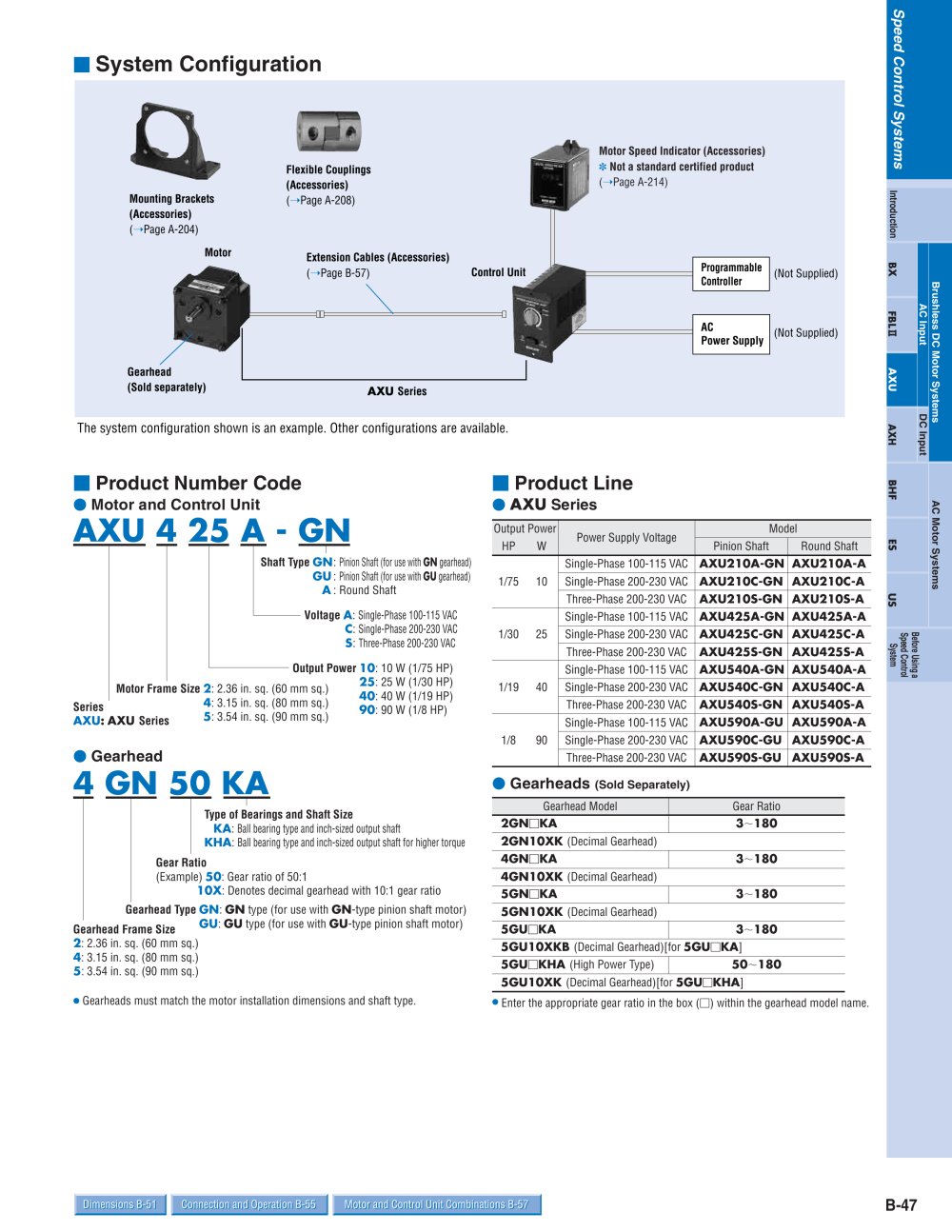

■ System Configuration

O O 3

Motor Speed Indicator (Accessories) * Not a standard certified product

(->PageA-214)

Flexible Couplings (Accessories)

(->Page A-208)

3 ^o

Mounting Brackets (Accessories)

(->Page A-204)

Motor

Extension Cables (Accessories)

(—Page B-57)


	1-	Programmable
		Controller

Control Unit

(Not Supplied)


		AC
	^-	Power Supply

(Not Supplied)

Gearhead (Sold separately)

AXU Series

The system configuration shown is an example. Other configurations are available.

■ Product Number Code

• Motor and Control Unit

AXU 4 25 A - GN

■ Product Line

• AXU Series


Output Power HP W	Power Supply Voltage	Model
Output Power HP W	Power Supply Voltage	Pinion Shaft	Round Shaft
1/75 10	Single-Phase 100-115 VAC	AXU210A-GN	AXU210A-A
	Single-Phase 200-230 VAC	AXU210C-GN	AXU210C-A
	Three-Phase 200-230 VAC	AXU210S-GN	AXU210S-A
1/30 25	Single-Phase 100-115 VAC	AXU425A-GN	AXU425A-A
	Single-Phase 200-230 VAC	AXU425C-GN	AXU425C-A
	Three-Phase 200-230 VAC	AXU425S-GN	AXU425S-A
1/19 40	Single-Phase 100-115 VAC	AXU540A-GN	AXU540A-A
	Single-Phase 200-230 VAC	AXU540C-GN	AXU540C-A
	Three-Phase 200-230 VAC	AXU540S-GN	AXU540S-A
1/8 90	Single-Phase 100-115 VAC	AXU590A-GU	AXU590A-A
	Single-Phase 200-230 VAC	AXU590C-GU	AXU590C-A
	Three-Phase 200-230 VAC	AXU590S-GU	AXU590S-A

^{s y}

Shaft Type GN: Pinion Shaft (for use with GN gearhead) GU: Pinion Shaft (for use with GU gearhead) A: Round Shaft

■Voltage A: Single-Phase 100-115 VAC C: Single-Phase 200-230 VAC S: Three-Phase 200-230 VAC

oo s

Output Power 10: 10 W (1/75 HP)

30 mm sq.) 40 ^W ^(1/19 ^Hp)

90: 90 W (1/8 HP)

4: 3.15 in. sq. (8

Series

AXU: AXU Series

• Gearhead

5: 3.54 in. sq. (90 mm sq.)

• Gearheads (Sold Separately)


	Gearhead Model	Gear Ratio
	2GNDKA	3180
	2GN10XK (Decimal Gearhead)
	4GNDKA	3180
	4GN10XK (Decimal Gearhead)
	5GNDKA	3180
	5GN10XK (Decimal Gearhead)
	5GUDKA	3180
	5GU10XKB (Decimal Gearhead)[for 5GUDKA]
	5GUDKHA (High Power Type)	50-180
	5GU10XK (Decimal Gearhead)[for 5GUDKHA]

Type of Bearings and Shaft Size

KA: Ball bearing type and inch-sized output shaft KHA: Ball bearing type and inch-sized output shaft for higher torque

Gear Ratio

(Example) 50: Gear ratio of 50:1

10X: Denotes decimal gearhead with 10:1 gear ratio

Gearhead Type GN: GN type (for use with GN-type pinion shaft motor) G_earh_ead F_rame Si_ze GU: GU type (for use with GU-type pinion shaft motor) 2: 2.36 in. sq. (60 mm sq.) 4: 3.15 in. sq. (80 mm sq.) 5: 3.54 in. sq. (90 mm sq.)

• Gearheads must match the motor installation dimensions and shaft type.

• Enter the appropriate gear ratio in the box (□) within the gearhead model name.

B-47

Dimensions B-51 Connection and Operation B-55 Motor and Control Unit Combinations B-57
