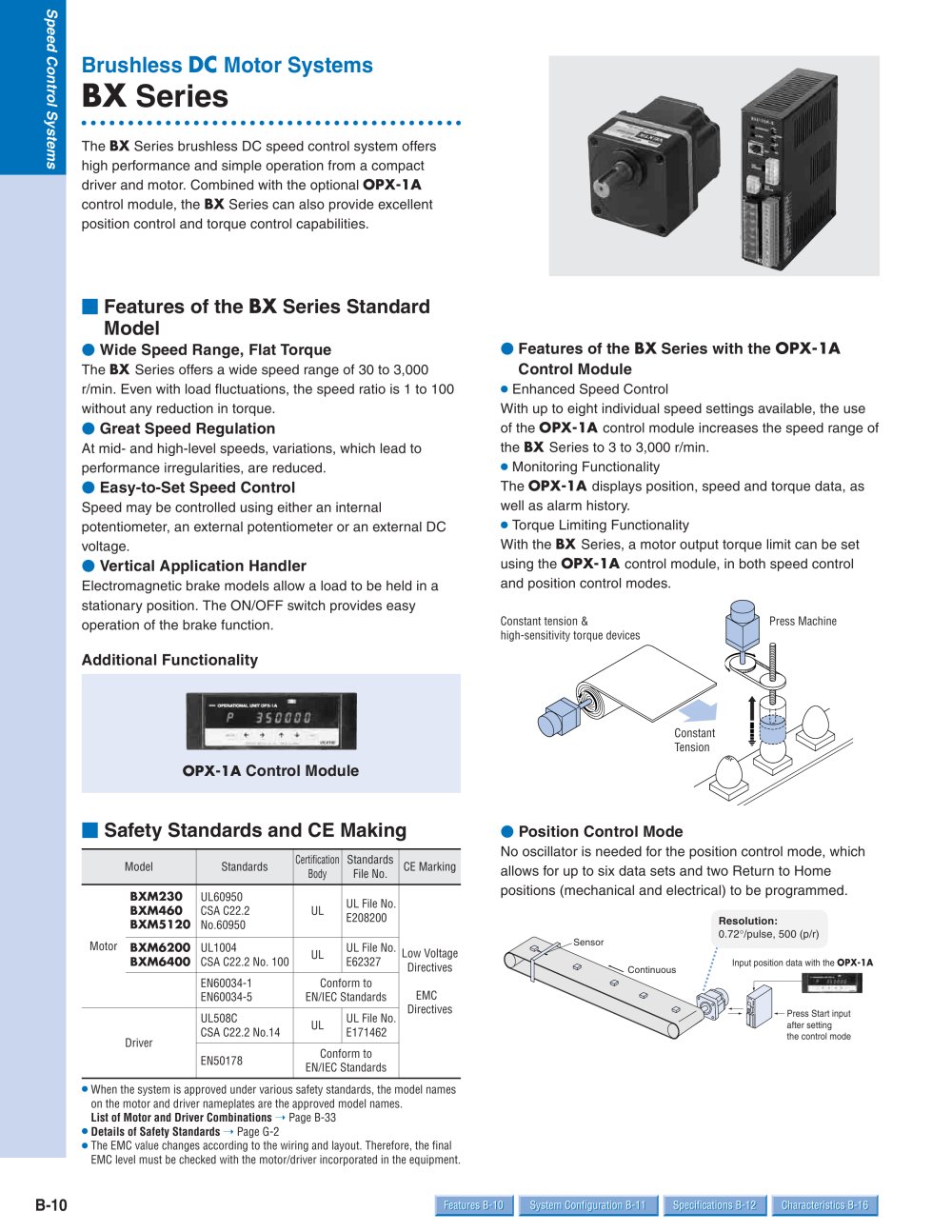

| Brushless DC Motor Systems BX Series The BX Series brushless DC speed control system offers high performance and simple operation from a compact driver and motor. Combined with the optional OPX-1A control module, the BX Series can also provide excellent position control and torque control capabilities. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■ Features of the BX Series Standard Model • Wide Speed Range, Flat Torque The BX Series offers a wide speed range of 30 to 3,000 r/min. Even with load fluctuations, the speed ratio is 1 to 100 without any reduction in torque. • Great Speed Regulation At mid- and high-level speeds, variations, which lead to performance irregularities, are reduced. • Easy-to-Set Speed Control Speed may be controlled using either an internal potentiometer, an external potentiometer or an external DC voltage. • Vertical Application Handler Electromagnetic brake models allow a load to be held in a stationary position. The ON/OFF switch provides easy operation of the brake function. Additional Functionality | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| • Features of the BX Series with the OPX-1A Control Module • Enhanced Speed Control With up to eight individual speed settings available, the use of the OPX-1A control module increases the speed range of the BX Series to 3 to 3,000 r/min. • Monitoring Functionality The OPX-1A displays position, speed and torque data, as well as alarm history. • Torque Limiting Functionality With the BX Series, a motor output torque limit can be set using the OPX-1A control module, in both speed control and position control modes. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| OPX-1A Control Module | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■ Safety Standards and CE Making | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| • Position Control Mode No oscillator is needed for the position control mode, which allows for up to six data sets and two Return to Home positions (mechanical and electrical) to be programmed. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| • When the system is approved under various safety standards, the model names on the motor and driver nameplates are the approved model names. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| List of Motor and Driver Combinations • Page B-33 • Details of Safety Standards -> Page G-2 • The EMC value changes according to the wiring and layout. Therefore, the final EMC level must be checked with the motor/driver incorporated in the equipment. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| B-10 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| u ration B-11 | -12 Characteristics B-16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
