StandardACMotors

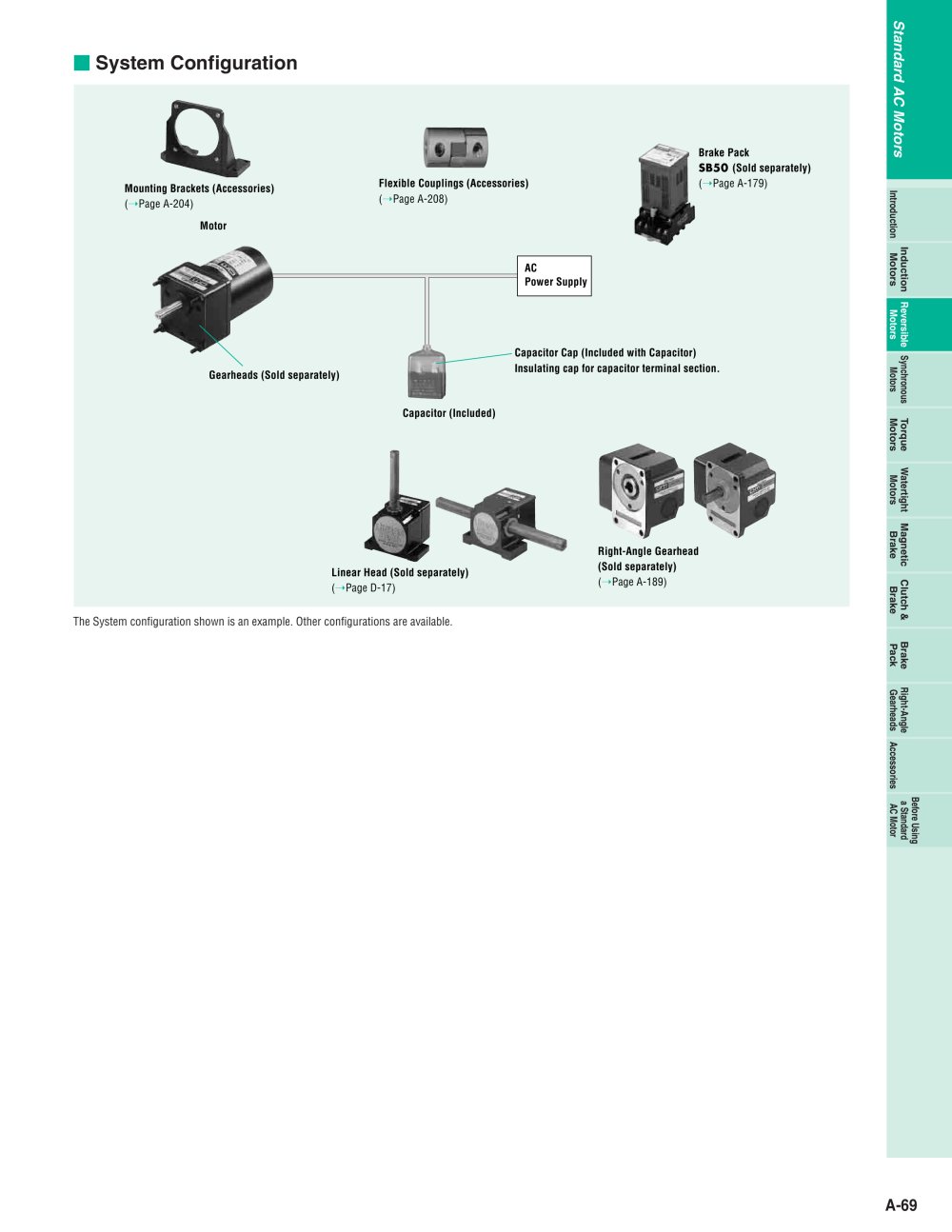

Reversible Motors - 15580 System Configuration

Brake Pack SB50 (Sold separately) Flexible Couplings (Accessories) ( ➝ Page A-179)
Introduction ( ➝ Page A-204) ( ➝ Page A-208)
InductionMotors ACPower SupplyMounting Brackets (Accessories)
ReversibleMotors Capacitor Cap (Included with Capacitor)Insulating cap for capacitor terminal section. Motor
SynchronousMotors Gearheads (Sold separately) Capacitor (Included)
TorqueMotors Watertight Motors MagneticBrake Right-Angle Gearhead(Sold separately) ( ➝ Page A-189) Linear Head (Sold separately)
Clutch &Brake ( ➝ Page D-17)

The System configuration shown is an example. Other configurations are available.

BrakePack Right-Angle Gearheads Accessories Before Usinga StandardAC Motor

A-69
