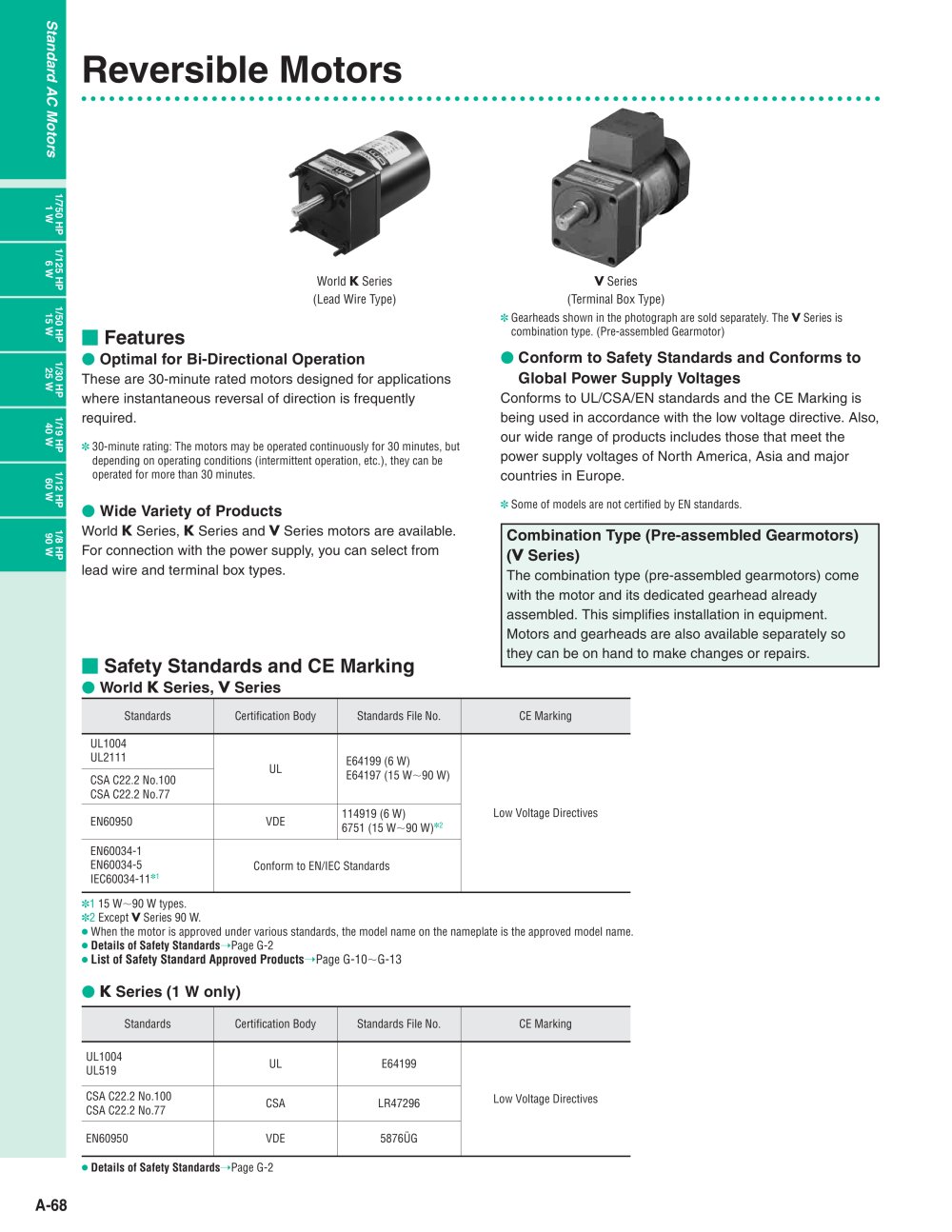

Réversible Motors

^{7 0}

-a

^{2 5}

World K Séries (Lead Wire Type)

■ Features

• Optimal for Bi-Directional Operation

These are 30-minute rated motors designed for applications where instantaneous reversai of direction is frequently required.

• 30-minute rating: The motors may be operated continuously for 30 minutes, but depending on operating conditions (intermittent operation, etc.), they can be operated for more than 30 minutes.

• Wide Variety of Products

World K Series, K Series and V Series motors are available. For connection with the power supply, you can select from lead wire and terminal box types.

V Series (Terminal Box Type)

* Gearheads shown in the photograph are sold separately. The V Series is combination type. (Pre-assembled Gearmotor)

* Conform to Safety Standards and Conforms to Global Power Supply Voltages

Conforms to UL/CSA/EN standards and the CE Marking is being used in accordance with the low voltage directive. Also, our wide range of products includes those that meet the power supply voltages of North America, Asia and major countries in Europe.

* Some of models are not certified by EN standards.

o S

O §

⁴ ¹O §

⁶ ¹

Combination Type (Pre-assembled Gearmotors) (V Series)

The combination type (pre-assembled gearmotors) come with the motor and its dedicated gearhead already assembled. This simplifies installation in equipment. Motors and gearheads are also available separately so they can be on hand to make changes or repairs.

⁹ ~-

o œ

■ Safety Standards and CE Marking

• World K Series, V Series


Standards	Certification Body	Standards File No.	CE Marking
UL1004 UL2111 CSA C22.2 No.100 CSA C22.2 No.77	UL	E64199 (6 W) E64197 (15 W~90 W)	Low Voltage Directives
EN60950	VDE	114919 (6 W) 6751 (15 W~90 W)*²
EN60034-1 EN60034-5 IEC60034-11*¹	Conform to EN/IEC Standards

*1 15 W~90 W types. *2 Except V Series 90 W.

• When the motor is approved under various standards, the model name on the nameplate is the approved model name.

• Détails of Safety Standards->Page G-2

• List of Safety Standard Approved Products->Page G-10~G-13

• K Series (1 W only)


Standards	Certification Body	Standards File No.	CE Marking
UL1004 UL519	UL	E64199
CSA C22.2 No.100 CSA C22.2 No.77	CSA	LR47296	Low Voltage Directives
EN60950	VDE	5876ÛG

• Details of Safety Standards->Page G-2

A-68
