StandardACMotors

K Series

StandardsCertification BodyStandards File No.CE MarkingUL1004UL519ULE64199Low Voltage DirectivesCSA C22.2 No.100

✽ 1

CSA C22.2 No.77

✽ 1

CSALR47296VDE5876ÜGEN60950

✽ 2 Introduction

✽ 1Only 1 W type. ✽ 2Except 4IK40A-BA . � Details of Safety Standard � Page G-2 The system configuration shown is an example. Other configurations are available.

InductionMotors InductionMotors

BH Series

ReversibleMotors

StandardsCertification BodyStandards File No.CE MarkingUL1004UL2111ULE64197Low Voltage DirectivesCSA C22.2 No.100CSA C22.2 No.77Conform to EN/IEC StandardsEN60950EN60034-1 EN60034-5 IEC60034-11

SynchronousMotors TorqueMotors Watertight Motors

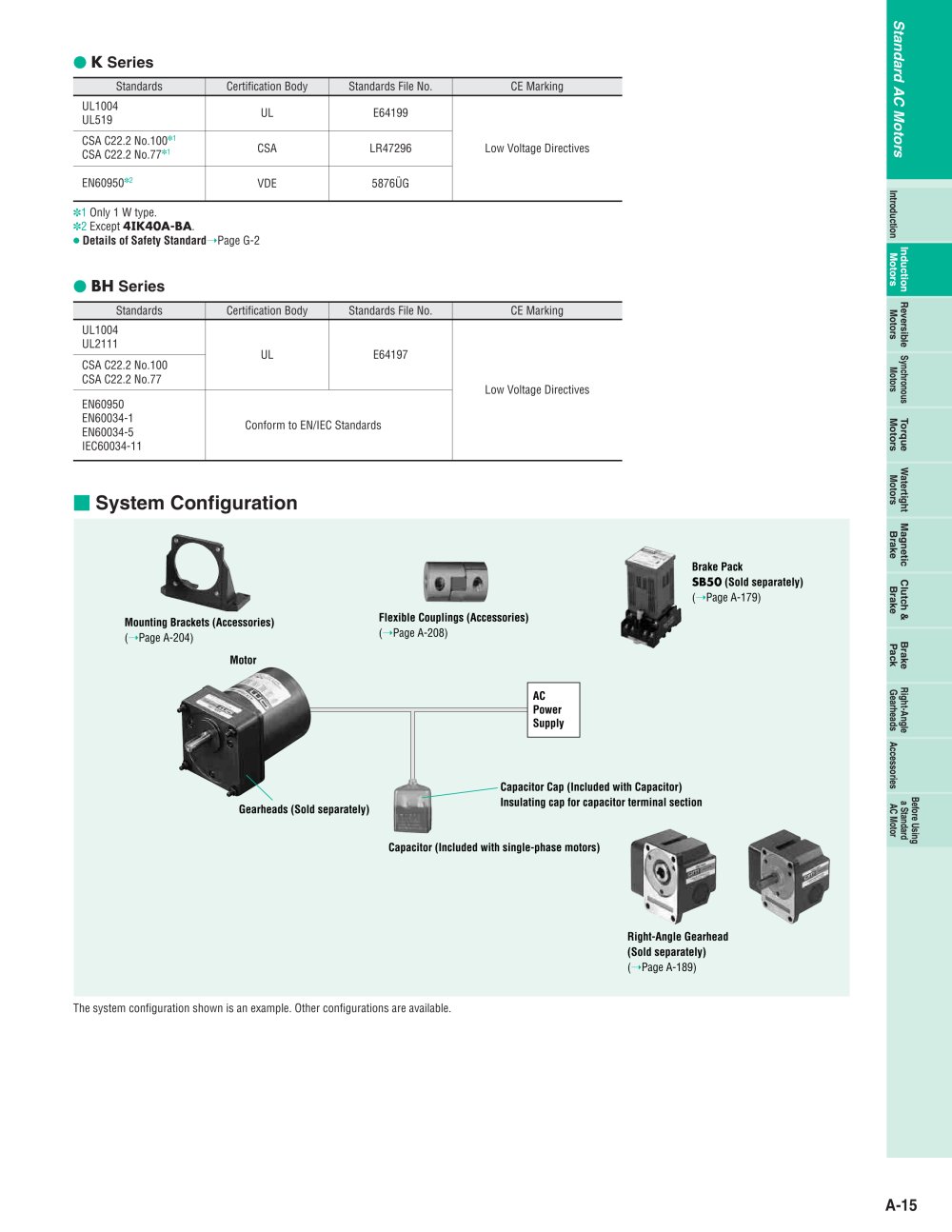

Induction Motors - 15580 System Configuration

MagneticBrake Brake Pack SB50 (Sold separately) ( � Page A-179)
Clutch &Brake ( � Page A-204) ( � Page A-208)
BrakePack Right-Angle Gearheads ACPower Supply Mounting Brackets (Accessories) Capacitor Cap (Included with Capacitor)Insulating cap for capacitor terminal section Motor
Accessories Gearheads (Sold separately) Flexible Couplings (Accessories)
Before Usinga StandardAC Motor Capacitor (Included with single-phase motors) Right-Angle Gearhead(Sold separately) ( � Page A-189)

A-15
