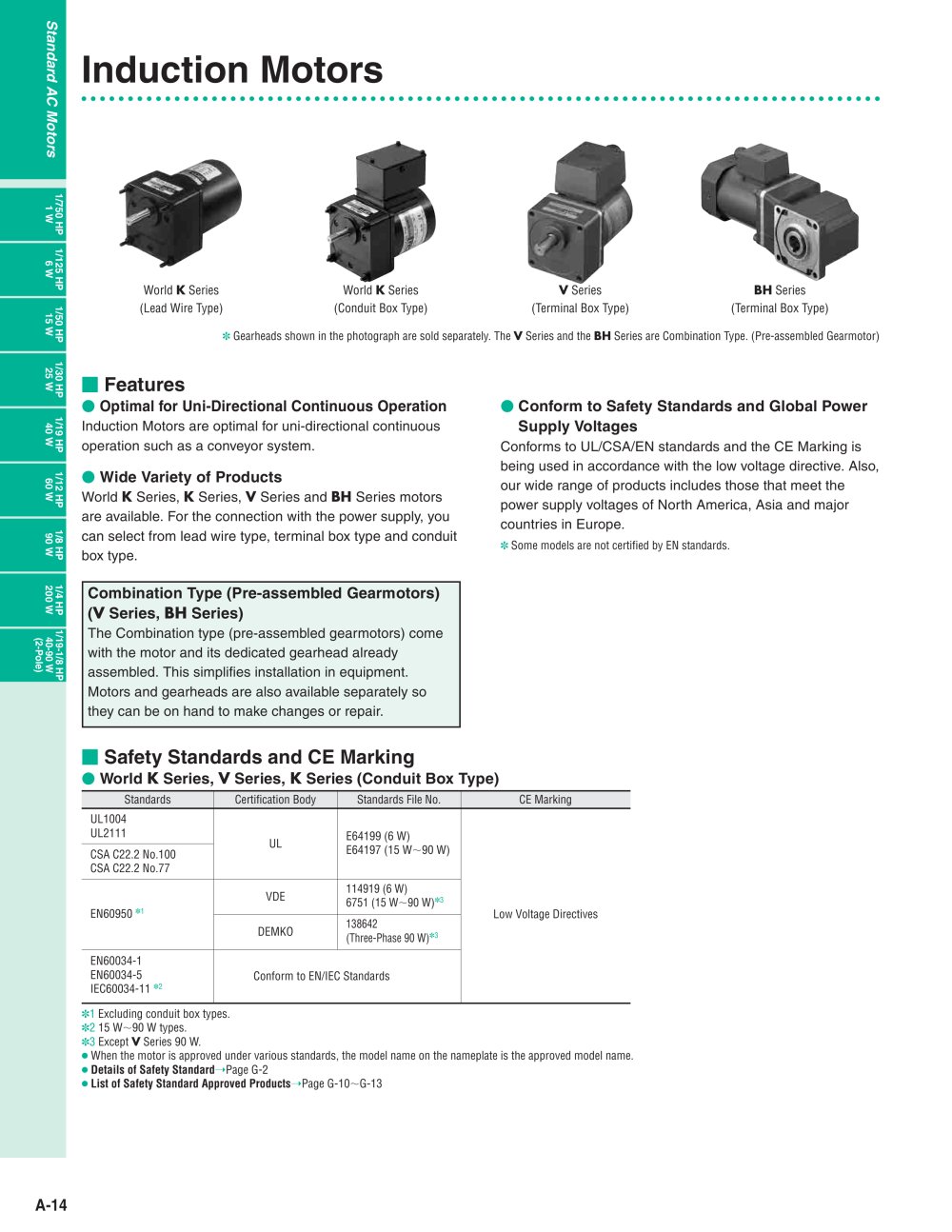

StandardACMotors

Induction Motors - 15580 Induction Motors

1/750 HP1 W 1/125 HP6 W

World K Series(Lead Wire Type)World K Series(Conduit Box Type) V Series(Terminal Box Type) BH Series(Terminal Box Type)

1/50 HP15 W ✽ Gearheads shown in the photograph are sold separately. The V Series and the BH Series are Combination Type. (Pre-assembled Gearmotor)
1/30 HP25 W

Features

1/19 HP40 W

Optimal for Uni-Directional Continuous Operation Conform to Safety Standards and Global PowerSupply Voltages

Induction Motors are optimal for uni-directional continuousoperation such as a conveyor system. Conforms to UL/CSA/EN standards and the CE Marking isbeing used in accordance with the low voltage directive. Also, our wide range of products includes those that meet the power supply voltages of North America, Asia and major countries in Europe.

1/12 HP60 W

Wide Variety of Products

World K Series, K Series, V Series and BH Series motorsare available. For the connection with the power supply, you can select from lead wire type, terminal box type and conduit box type.

1/8 HP90 W ✽ Some models are not certified by EN standards.
1/4 HP200 W

Combination Type (Pre-assembled Gearmotors)(

1/19-1/8 HP 40-90 W(2-Pole)

V Series, BH Series)

The Combination type (pre-assembled gearmotors) comewith the motor and its dedicated gearhead alreadyassembled. This simplifies installation in equipment.Motors and gearheads are also available separately so they can be on hand to make changes or repair.

Safety Standards and CE Marking

World K Series, V Series, K Series (Conduit Box Type)

StandardsCertification BodyStandards File No.CE MarkingUL1004UL2111CSA C22.2 No.100CSA C22.2 No.77ULE64199 (6 W)E64197 (15 W 90 W)Low Voltage DirectivesEN60950 VDE 114919 (6 W)6751 (15 W
✽ 3 ✽ 1 90 W) DEMKO 138642(Three-Phase 90 W)
✽ 3 EN60034-1EN60034-5 IEC60034-11 Conform to EN/IEC Standards
✽ 2 ✽ 1Excluding conduit box types. ✽ 215 W 90 W types. ✽ 3Except V Series 90 W. � When the motor is approved under various standards, the model name on the nameplate is the approved model name. � Details of Safety Standard � Page G-2 � List of Safety Standard Approved Products � Page G-10 G-13

A-14
