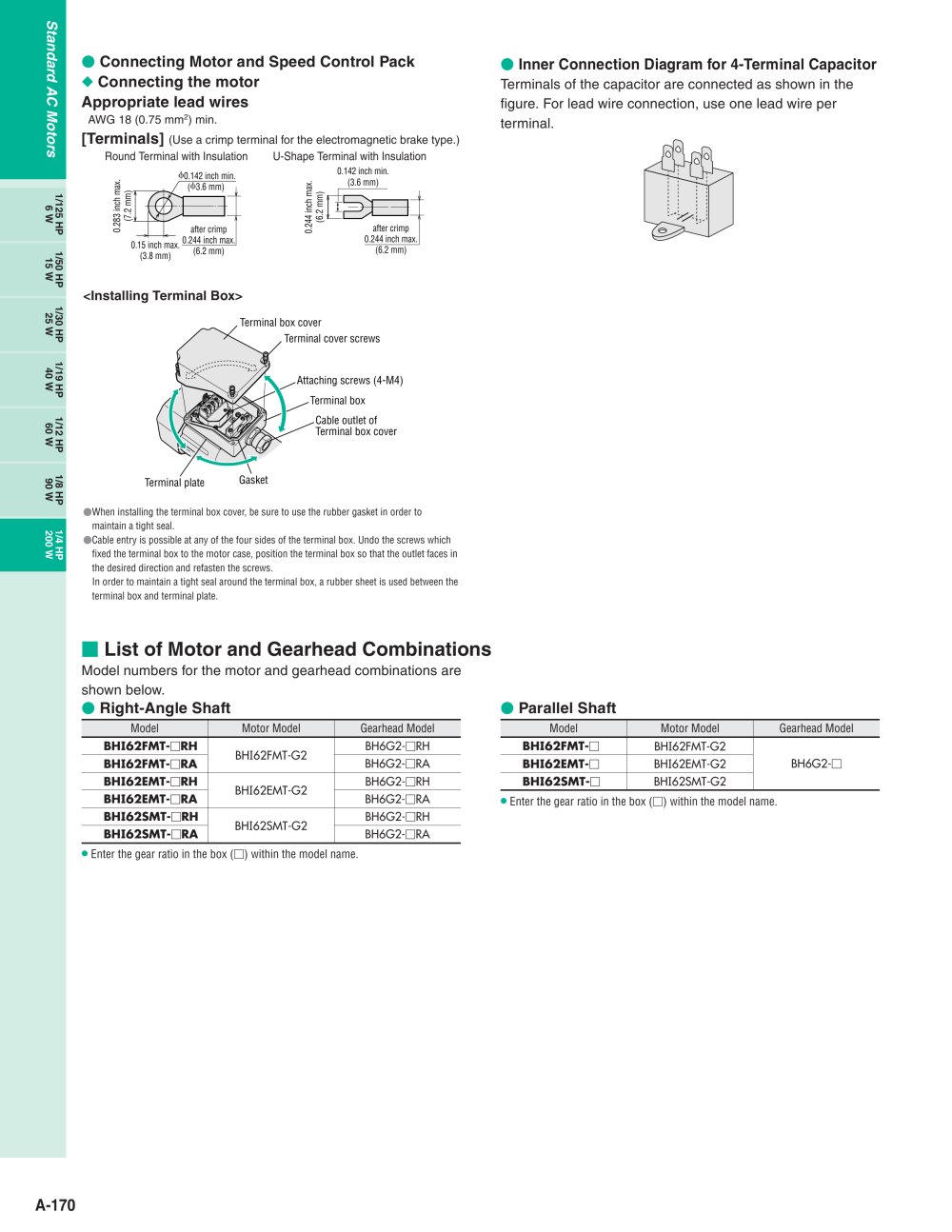

Connecting Motor and Speed Control Pack Inner Connection Diagram for 4-Terminal Capacitor â—† Connecting the motorAppropriate lead wires

Terminals of the capacitor are connected as shown in thefigure. For lead wire connection, use one lead wire per terminal.

AWG 18 (0.75 mm

2

) min.

[Terminals]

(Use a crimp terminal for the electromagnetic brake type.) Round Terminal with InsulationU-Shape Terminal with Insulation

0.142 inch min.( 0.142 inch min.(3.6 mm) 1/125 HP6 W 3.6 mm) 0.283 inch max.(7.2 mm) after crimp0.244 inch max.(6.2 mm) 0.244 inch max.(6.2 mm) after crimp0.244 inch max.(6.2 mm) 1/50 HP15 W 0.15 inch max.(3.8 mm) 1/30 HP25 W

Terminal box cover Terminal cover screws 1/19 HP40 W Attaching screws (4-M4) Terminal box 1/12 HP60 W Cable outlet of Terminal box cover 1/8 HP90 W Terminal plate Gasket When installing the terminal box cover, be sure to use the rubber gasket in order tomaintain a tight seal. 1/4 HP200 W Cable entry is possible at any of the four sides of the terminal box. Undo the screws whichfixed the terminal box to the motor case, position the terminal box so that the outlet faces in the desired direction and refasten the screws. In order to maintain a tight seal around the terminal box, a rubber sheet is used between the terminal box and terminal plate.

Electromagnetic Brake Motors - 15580 List of Motor and Gearhead Combinations

Model numbers for the motor and gearhead combinations areshown below.

Right-Angle Shaft Parallel Shaft

ModelMotor ModelGearhead Model ModelMotor ModelGearhead Model BHI62FMT- RH RH BHI62FMT- BHI62FMT-G2BH6G2- BHI62FMT- RABHI62EMT- BHI62FMT-G2BH6G2- RABH6G2- BHI62EMT- BHI62EMT-G2BHI62SMT-G2 RHBHI62EMT- RHBH6G2- BHI62SMT- RABHI62SMT- BHI62EMT-G2BHI62SMT-G2BH6G2- RABH6G2-

â—� Enter the gear ratio in the box ( ) within the model name.

RHBHI62SMT- RHBH6G2- RA RA
