StandardACMotors
Note : ā—¸ The " U " and " E " at the end of the model name indicate that the unit includes acapacitor. These two letters are not listed on the motor nameplate.

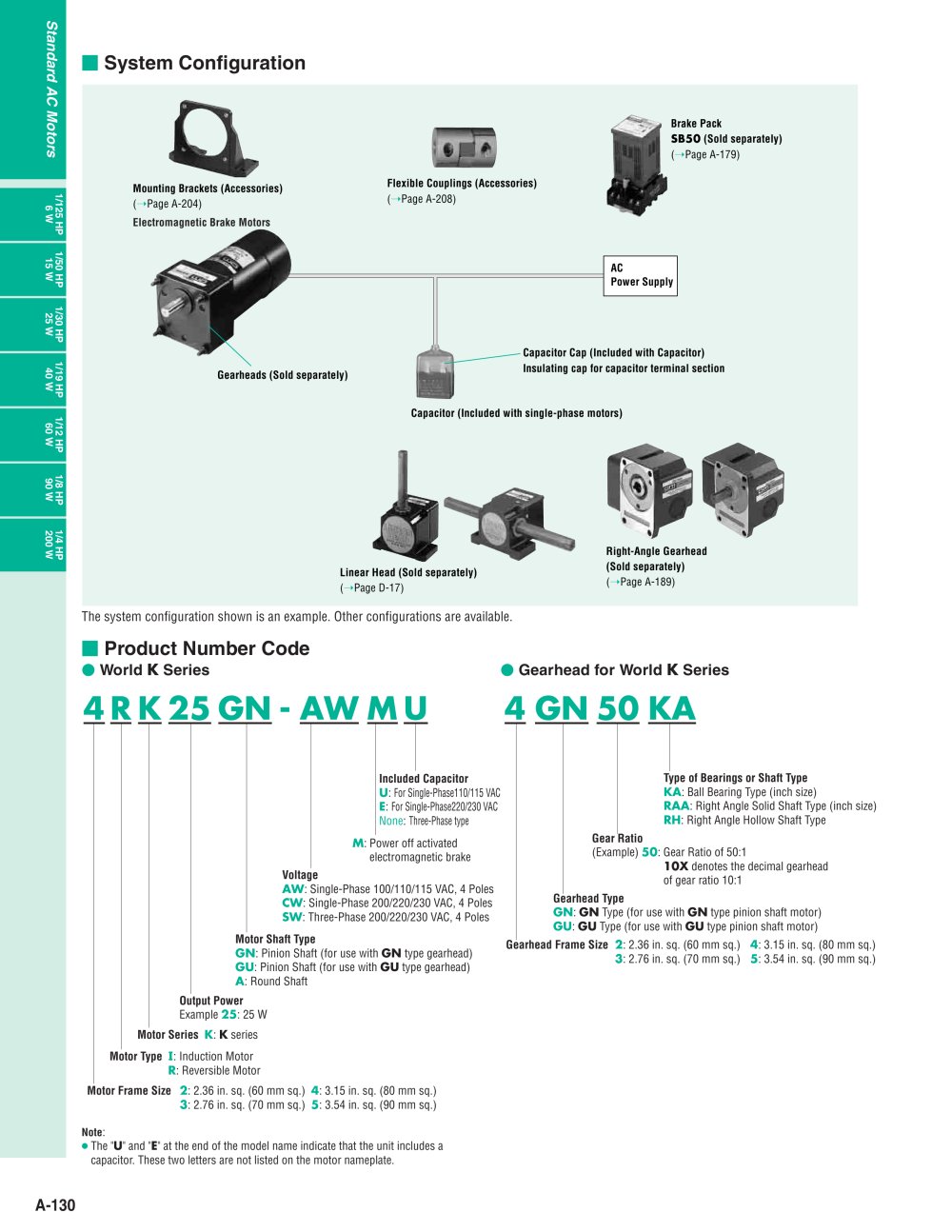

System Configuration
Brake Pack SB50 (Sold separately) ( ā˛¯ Page A-179) 1/125 HP6 W ( ā˛¯ Page A-204) ( ā˛¯ Page A-208) 1/50 HP15 W ACPower Supply Mounting Brackets (Accessories) 1/30 HP25 W Capacitor Cap (Included with Capacitor)Insulating cap for capacitor terminal section Electromagnetic Brake Motors 1/19 HP40 W Gearheads (Sold separately) Flexible Couplings (Accessories) 1/12 HP60 W Capacitor (Included with single-phase motors) 1/8 HP90 W 1/4 HP200 W Right-Angle Gearhead(Sold separately) ( ā˛¯ Page A-189) Linear Head (Sold separately) ( ā˛¯ Page D-17)The system configuration shown is an example. Other configurations are available.
Product Number Code
World K Series Gearhead for World K Series
Electromagnetic Brake Motors - 15580 4 R K 25 GN AW- M U 4 GN 50 KA
Included Capacitor Type of Bearings or Shaft Type KA : Ball Bearing Type (inch size) U : For Single-Phase110/115 VAC RAA : Right Angle Solid Shaft Type (inch size) E : For Single-Phase220/230 VAC RH : Right Angle Hollow Shaft Type None: Three-Phase type M : Power off activatedelectromagnetic brake Gear Ratio (Example) 50 : Gear Ratio of 50:1 Voltage 10X denotes the decimal gearheadof gear ratio 10:1 AW : Single-Phase 100/110/115 VAC, 4 Poles CW : Single-Phase 200/220/230 VAC, 4 Poles Gearhead Type SW : Three-Phase 200/220/230 VAC, 4 Poles GN : GN Type (for use with GN type pinion shaft motor) GU : GU Type (for use with GU type pinion shaft motor) Motor Shaft Type GN : Pinion Shaft (for use with GN type gearhead) GU : Pinion Shaft (for use with GU type gearhead) Gearhead Frame Size 2 : 2.36 in. sq. (60 mm sq.) 4 : 3.15 in. sq. (80 mm sq.) A : Round Shaft 3 : 2.76 in. sq. (70 mm sq.) 5 : 3.54 in. sq. (90 mm sq.) Output Power Example 25 : 25 W Motor Series K : K series Motor Type I : Induction Motor R : Reversible Motor Motor Frame Size 2 : 2.36 in. sq. (60 mm sq.) 4 : 3.15 in. sq. (80 mm sq.) 3 : 2.76 in. sq. (70 mm sq.) 5 : 3.54 in. sq. (90 mm sq.)Note : ā—¸ The " U " and " E " at the end of the model name indicate that the unit includes acapacitor. These two letters are not listed on the motor nameplate.
