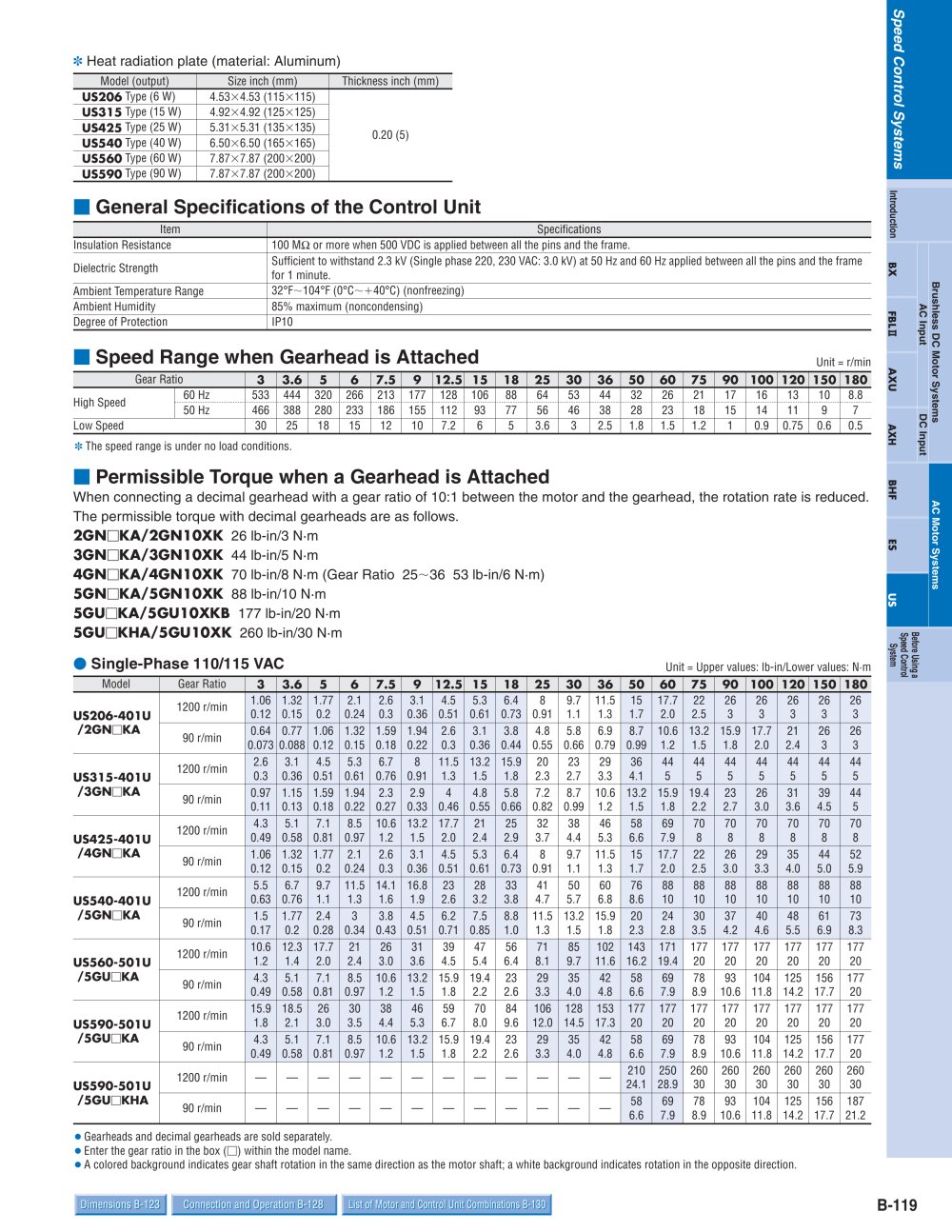

Heat radiation plate (material: Aluminum)
O O 3
Model (output)
Size inch (mm)
Thickness inch (mm)
US206 Type (6 W)
4.53x4.53 (115x115)
0.20 (5)
US315 Type (15 W)
4.92x4.92 (125x125)
US425 Type (25 W)
5.31x5.31 (135x135)
US540 Type (40 W)
6.50x6.50 (165x165)
US560 Type (60 W)
7.87x7.87 (200x200)
US590 Type (90 W)
7.87x7.87 (200x200)
(a
3 o
a. o o
I General Specifications of the Control Unit
Item
Specifications
Insulation Resistance
100 MD or more when 500 VDC is applied between all the pins and the frame.
Dielectric Strength
Sufficient to withstand 2.3 kV (Single phase 220, 230 VAC: 3.0 kV) at 50 Hz and 60 Hz applied between all the pins and the frame for 1 minute.
Ambient Temperature Range
32°F~104°F (0°C~+40°C) (nonfreezing)
Ambient Humidity
85% maximum (noncondensing)
Degree of Protection
IP10
DO X
e s
00
1=1
U
c
C
I Speed Range when Gearhead is Attached
Unit = r/min
Gear Ratio
3
3.6
5
6
7.5
9
12.5
15
18
25
30
36
50
60
75
90
100
120
150
180
High Speed
60 Hz
533
444
320
266
213
177
128
106
88
64
53
44
32
26
21
17
16
13
10
8.8
50 Hz
466
388
280
233
186
155
112
93
77
56
46
38
28
23
18
15
14
11
9
7
Low Speed
30
25
18
15
12
10
7.2
6
5
3.6
3
2.5
1.8
1.5
1.2
1
0.9
0.75
0.6
0.5
S y tt e 3
n
■D
t
* The speed range is under no load conditions.
■ Permissible Torque when a Gearhead is Attached
When connecting a decimal gearhead with a gear ratio of 10:1 between the motor and the gearhead, the rotation rate is reduced. The permissible torque with decimal gearheads are as follows. 2GNDKA/2GN10XK 26 lb-in/3 N-m 3GNDKA/3GN10XK 44 lb-in/5 N-m
4GNDKA/4GN10XK 70 lb-in/8 N-m (Gear Ratio 25-36 53 lb-in/6 N-m) 5GNDKA/5GN10XK 88 lb-in/10 N-m 5GUDKA/5GU10XKB 177 lb-in/20 N-m 5GUDKHA/5GU10XK 260 lb-in/30 N-m
Da
I
TI
> C
t o
m
y
t e 3
s
i ee
• Single-Phase 110/115 VAC
Unit = Upper values: lb-in/Lower values: N-m
Model
Gear Ratio
3
3.6
5
6
7.5
9
12.5
15
18
25
30
36
50
60
75
90
100
120
150
180
US206-401U /2GNDKA
1200 r/min
1.06 0.12
1.32 0.15
1.77 0.2
2.1 0.24
2.6 0.3
3.1 0.36
4.5 0.51
5.3
0.61
6.4
0.73
8
0.91
9.7 1.1
11.5 1.3
15 1.7
17.7 2.0
22 2.5
26 3
26 3
26 3
26 3
26 3
90 r/min
0.64 0.073
0.77 0.088
1.06 0.12
1.32 0.15
1.59 0.18
1.94 0.22
2.6 0.3
3.1
0.36
3.8
0.44
4.8 0.55
5.8 0.66
6.9 0.79
8.7 0.99
10.6 1.2
13.2 1.5
15.9 1.8
17.7 2.0
21 2.4
26 3
26 3
US315-401U /3GNDKA
1200 r/min
2.6 0.3
3.1 0.36
4.5 0.51
5.3 0.61
6.7 0.76
8
0.91
11.5 1.3
13.2
1.5
15.9
1.8
20 2.3
23 2.7
29 3.3
36 4.1
44 5
44 5
44 5
44 5
44 5
44 5
44 5
90 r/min
0.97 0.11
1.15 0.13
1.59 0.18
1.94 0.22
2.3 0.27
2.9 0.33
4
0.46
4.8
0.55
5.8
0.66
7.2 0.82
8.7 0.99
10.6 1.2
13.2 1.5
15.9 1.8
19.4 2.2
23 2.7
26 3.0
31 3.6
39 4.5
44 5
US425-401U /4GNDKA
1200 r/min
4.3 0.49
5.1 0.58
7.1 0.81
8.5 0.97
10.6 1.2
13.2 1.5
17.7 2.0
21
2.4
25
2.9
32 3.7
38 4.4
46 5.3
58 6.6
69 7.9
70 8
70 8
70 8
70 8
70 8
70 8
90 r/min
1.06 0.12
1.32 0.15
1.77 0.2
2.1 0.24
2.6 0.3
3.1 0.36
4.5 0.51
5.3
0.61
6.4
0.73
8
0.91
9.7 1.1
11.5 1.3
15 1.7
17.7 2.0
22 2.5
26 3.0
29 3.3
35 4.0
44 5.0
52 5.9
US540-401U /5GNDKA
1200 r/min
5.5
0.63
6.7
0.76
9.7
1.1
11.5
1.3
14.1
1.6
16.8
1.9
23
2.6
28 3.2
33
3.8
41
4.7
50
5.7
60
6.8
76
8.6
88
10
88
10
88
10
88
10
88
10
88
10
88
10
90 r/min
1.5 0.17
1.77 0.2
2.4 0.28
3
0.34
3.8 0.43
4.5 0.51
6.2 0.71
7.5
0.85
8.8
1.0
11.5 1.3
13.2 1.5
15.9 1.8
20 2.3
24 2.8
30 3.5
37 4.2
40 4.6
48 5.5
61 6.9
73 8.3
US560-501U /5GUDKA
1200 r/min
10.6 1.2
12.3 1.4
17.7 2.0
21 2.4
26 3.0
31 3.6
39 4.5
47
5.4
56
6.4
71 8.1
85 9.7
102 11.6
143 16.2
171 19.4
177 20
177 20
177 20
177 20
177 20
177 20
90 r/min
4.3 0.49
5.1 0.58
7.1 0.81
8.5 0.97
10.6 1.2
13.2 1.5
15.9 1.8
19.4
2.2
23
2.6
29 3.3
35 4.0
42 4.8
58 6.6
69 7.9
78 8.9
93 10.6
104 11.8
125 14.2
156 17.7
177 20
US590-501U /5GUDKA
1200 r/min
15.9 1.8
18.5 2.1
26 3.0
30 3.5
38 4.4
46 5.3
59 6.7
70
8.0
84
9.6
106 12.0
128 14.5
153 17.3
177 20
177 20
177 20
177 20
177 20
177 20
177 20
177 20
90 r/min
4.3 0.49
5.1 0.58
7.1 0.81
8.5 0.97
10.6 1.2
13.2 1.5
15.9 1.8
19.4
2.2
23
2.6
29 3.3
35 4.0
42 4.8
58 6.6
69 7.9
78 8.9
93 10.6
104 11.8
125 14.2
156 17.7
177 20
US590-501U /5GUDKHA
1200 r/min
—
—
—
—
—
—
—
—
—
—
—
—
210 24.1
250 28.9
260 30
260 30
260 30
260 30
260 30
260 30
90 r/min
—
—
—
—
—
—
—
—
—
—
—
—
58 6.6
69 7.9
78 8.9
93 10.6
104 11.8
125 14.2
156 17.7
187 21.2
• Gearheads and decimal gearheads are sold separately.
• Enter the gear ratio in the box (□) within the model name.
• A colored background indicates gear shaft rotation in the same direction as the motor shaft; a white background indicates rotation in the opposite direction.
Dimensions B-123 Connection and Operation B-128 List of Motor and Control Unit Combinations B-1301
B-119
