SpeedControlSystems

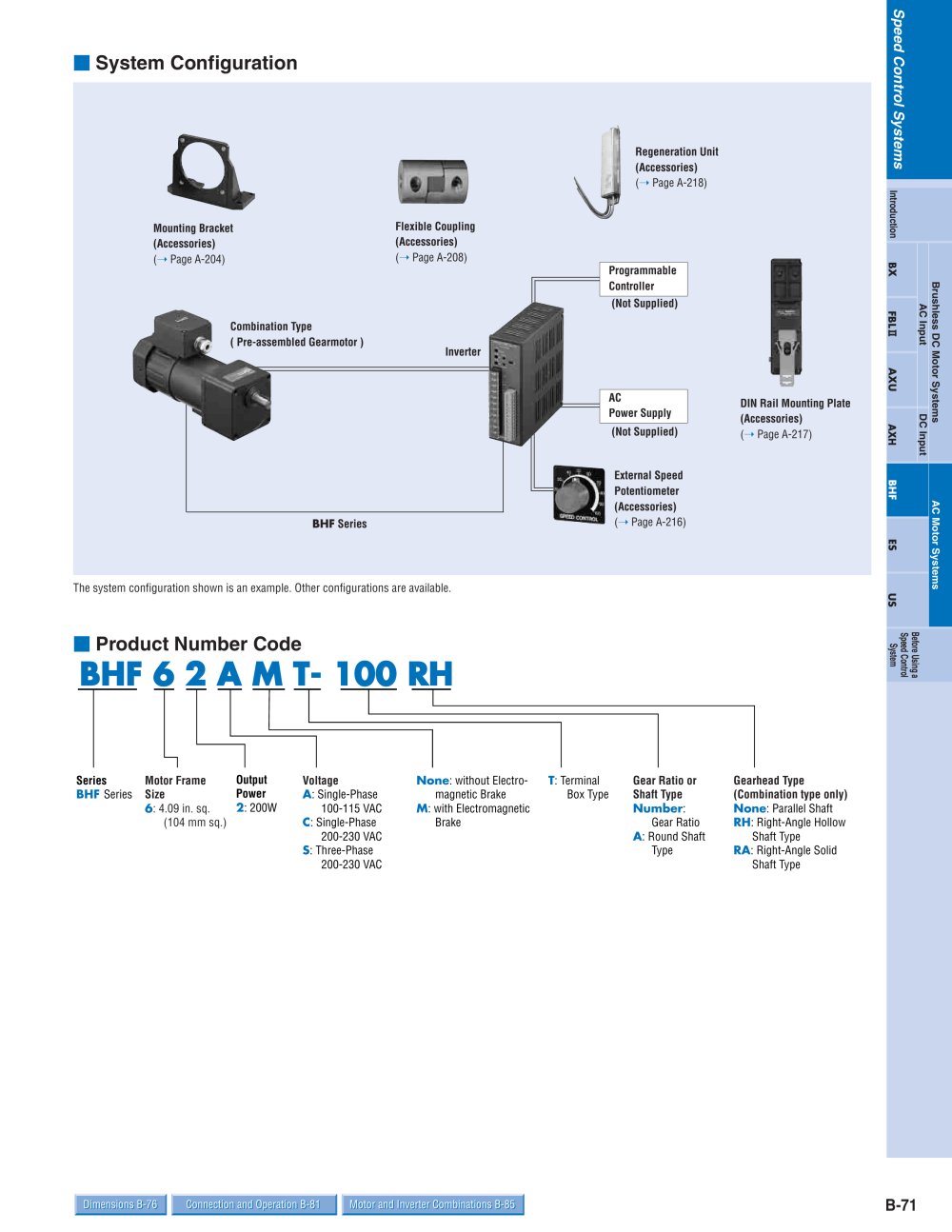

System Configuration

Regeneration Unit(Accessories) ( � Page A-218) Introduction ( � Page A-208) Mounting Bracket(Accessories) ( � Page A-204) BXFBL Programmable Controller (Not Supplied) (Not Supplied) Flexible Coupling(Accessories) Brushless DC Motor Systems Combination Type( Pre-assembled Gearmotor ) 2 AXU AC Power Supply DIN Rail Mounting Plate (Accessories) ( � Page A-217) DC InputAC Input AXH ( � Page A-216) External SpeedPotentiometer (Accessories) BHFESUS BHF Series Inverter AC Motor Systems The system configuration shown is an example. Other configurations are available.
Before Using aSpeed ControlSystem

Product Number Code

AC Motor Systems - 15580 B BHF 6 2 A M T- 100 RH

Gearhead Type(Combination type only) None : Parallel Shaft RH : Right-Angle Hollow Shaft Type None : without Electro-magnetic Brake T : Terminal Box Type Gear Ratio or Shaft Type Number : Gear Ratio RA : Right-Angle Solid Shaft Type Series Motor Frame Size 6 : 4.09 in. sq. (104 mm sq.) Voltage M : with Electromagnetic Brake A : Round Shaft Type BHF Series A : Single-Phase 100-115 VAC Output Power 2 : 200W C : Single-Phase 200-230 VAC S : Three-Phase 200-230 VAC
