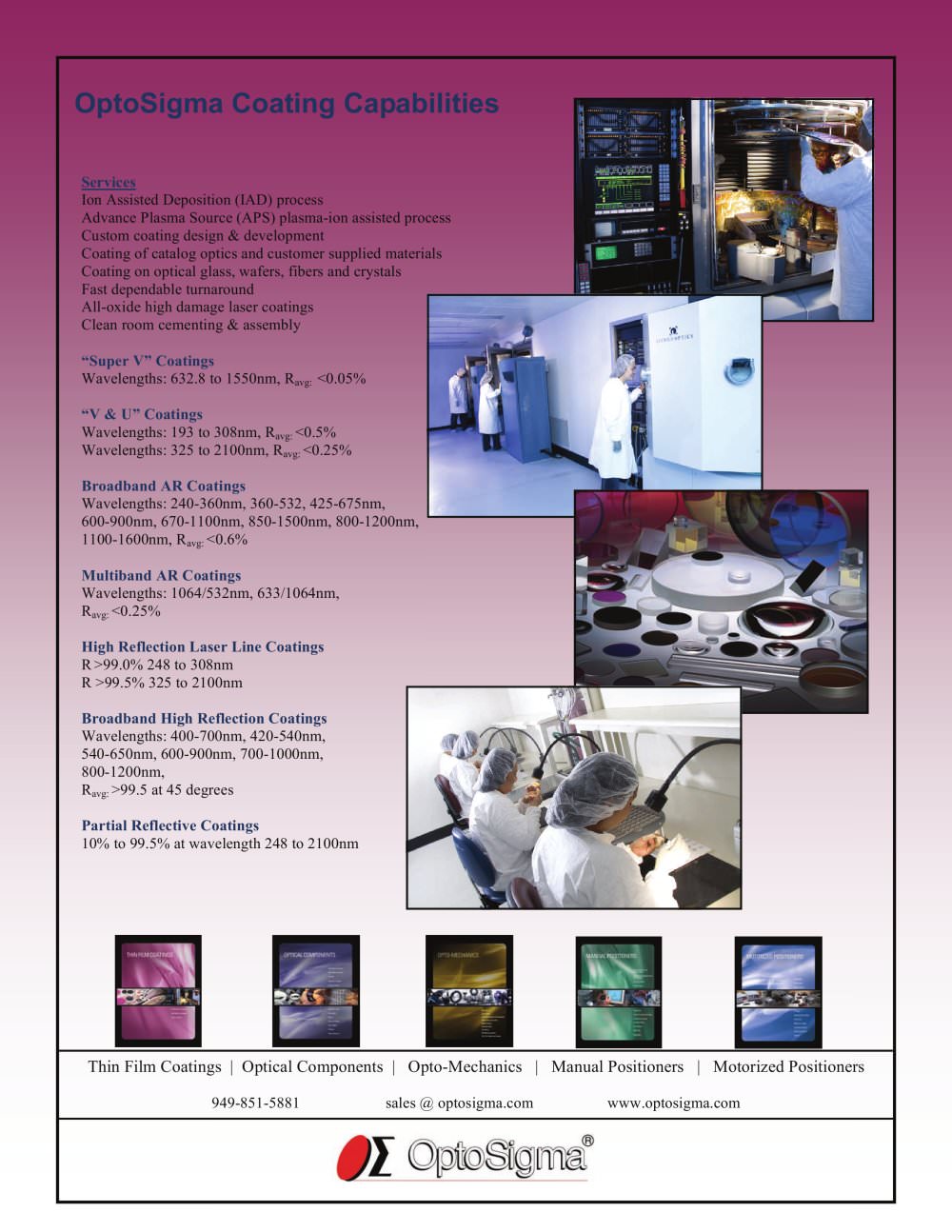

OptoSigma Coating Capabilities

Services Ion Assisted Deposition (IAD) process Advance Plasma Source (APS) plasma-ion assisted process Custom coating design & development Coating of catalog optics and customer supplied materials Coating on optical glass, wafers, fibers and crystals Fast dependable turnaround All-oxide high damage laser coatings Clean room cementing & assembly “Super V” Coatings Wavelengths: 632.8 to 1550nm, R
avg: <0.05% “V & U” Coatings Wavelengths: 193 to 308nm, R
avg: <0.5% Wavelengths: 325 to 2100nm, R
avg: <0.25% Broadband AR Coatings Wavelengths: 240-360nm, 360-532, 425-675nm, 600-900nm, 670-1100nm, 850-1500nm, 800-1200nm, 1100-1600nm, R
avg: <0.6% Multiband AR Coatings Wavelengths: 1064/532nm, 633/1064nm, R
avg: <0.25% High Reflection Laser Line Coatings R >99.0% 248 to 308nm R >99.5% 325 to 2100nm Broadband High Reflection Coatings Wavelengths: 400-700nm, 420-540nm, 540-650nm, 600-900nm, 700-1000nm, 800-1200nm, R
avg: >99.5 at 45 degrees Partial Reflective Coatings 10% to 99.5% at wavelength 248 to 2100nm

Thin Film Coatings | Optical Components | Opto-Mechanics | Manual Positioners | Motorized Positioners

949-851-5881 sales @ optosigma.com www.optosigma.com
