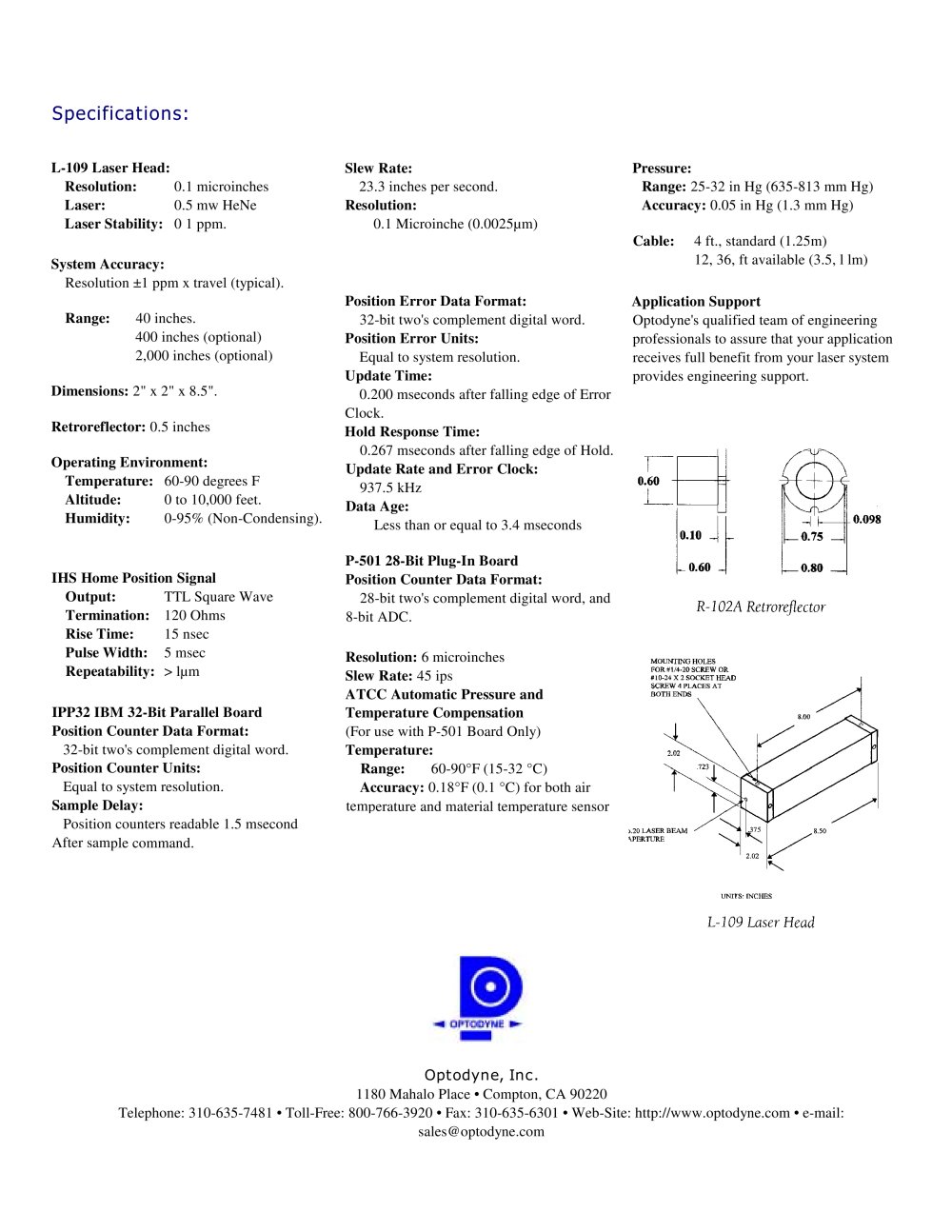

Specifications:
L-109 Laser Head: Resolution: Slew Rate: Pressure:Range: 0.1 microinches 23.3 inches per second. 25-32 in Hg (635-813 mm Hg) Laser: 0.5 mw HeNe Resolution: Accuracy: 0.05 in Hg (1.3 mm Hg) Laser Stability: 0 1 ppm. 0.1 Microinche (0.0025µm) Cable: 4 ft., standard (1.25m) 12, 36, ft available (3.5, l lm) System Accuracy: Resolution ±1 ppm x travel (typical). Position Error Data Format: Application Support Range: 40 inches. 400 inches (optional) 2,000 inches (optional) 32-bit two's complement digital word. Optodyne's qualified team of engineering professionals to assure that your application receives full benefit from your laser system provides engineering support. Position Error Units: Dimensions: 2" x 2" x 8.5". Equal to system resolution. Update Time: Retroreflector: 0.5 inches 0.200 mseconds after falling edge of Error Clock. Operating Environment: Temperature: Hold Response Time: 60-90 degrees F 0.267 mseconds after falling edge of Hold. Altitude: 0 to 10,000 feet. Update Rate and Error Clock: Humidity: 0-95% (Non-Condensing). 937.5 kHz Data Age: Less than or equal to 3.4 mseconds IHS Home Position Signal Output: TTL Square Wave P-501 28-Bit Plug-In Board Position Counter Data Format: Termination: 120 Ohms Rise Time: 15 nsec 28-bit two's complement digital word, and 8-bit ADC. Pulse Width: 5 msec Repeatability: > lµm Temperature: Range: Resolution: (For use with P-501 Board Only) 6 microinches 60-90°F (15-32 °C) IPP32 IBM 32-Bit Parallel Board Position Counter Data Format: Slew Rate: Accuracy: 45 ips 0.18°F (0.1 °C) for both air tem ATCC Automatic Pressure and Temperature Compensation 32-bit two's complement digital word. Position Counter Units: Equal to system resolution. Sample Delay: Position counters readable 1.5 msecond After sam p erature and material tem p erature
sensor p le command. Optodyne, Inc. 1180 Mahalo Place ? Compton, CA 90220 Telephone: 310-635-7481 ? Toll-Free: 800-766-3920 ? Fax: 310-635-6301 ? Web-Site: http://www.optodyne.com ? e-mail: sales@optodyne.com
