Linear Machine Calibrator
4Pages

{{requestButtons}}

Catalog excerpts

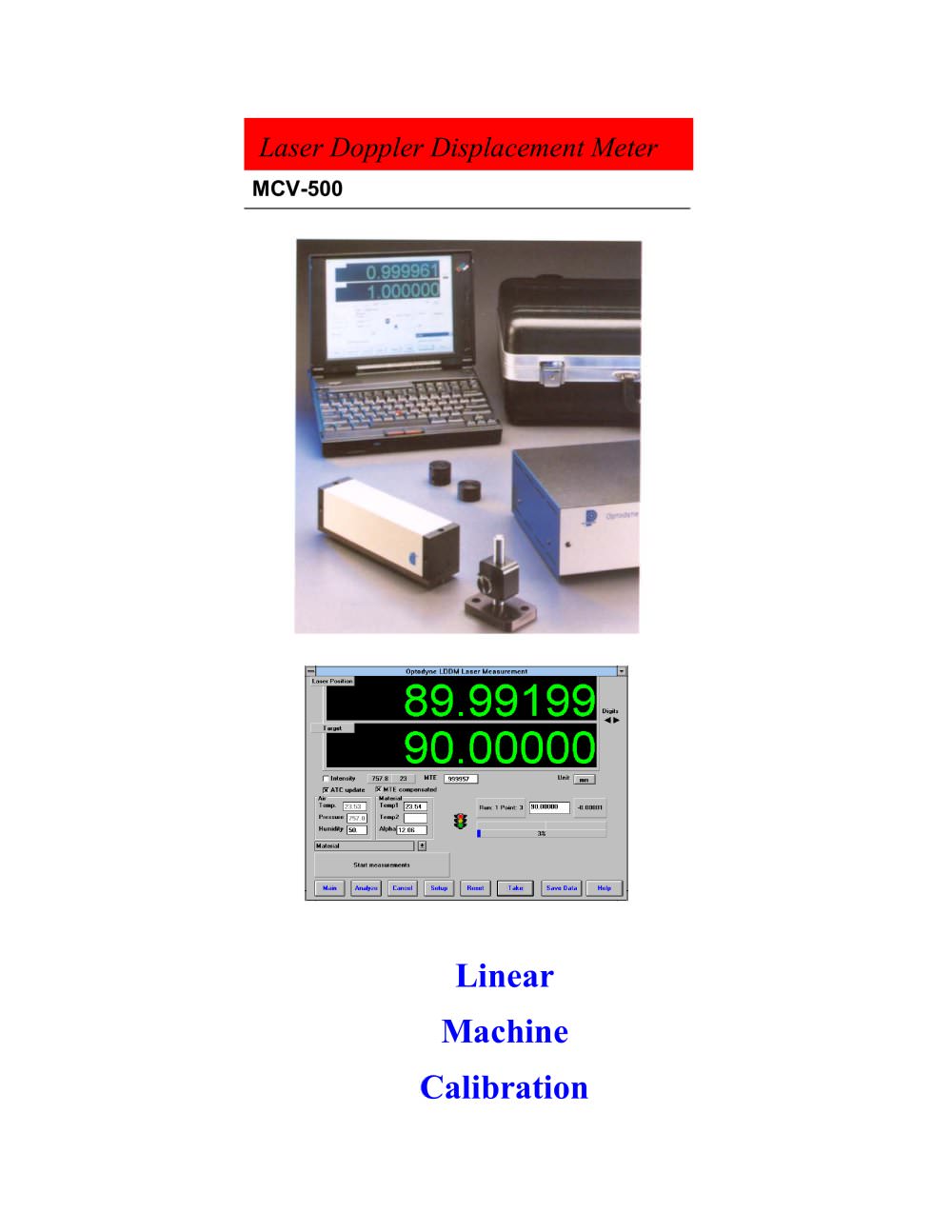

Linear Machine Calibrator - 1

Laser Doppler Displacement Meter MCV-500 Linear Machine Calibration >

Open the catalog to page 1
Linear Machine Calibrator - 2

OPTODYNE'S MCV-500 Compact Linear Machine Calibration System, calibrates CNC machine tools, CMM's (Coordinate Measuring Machines), and other precision measuring machines and stages. This new compact calibration system, based on the patented Laser Doppler Displacement Meter (LDDMT"') technology, is designed for easy setup and operation. The basic system, including Windows''' software, automatic compensation, (compensates for air temperature, barometric pressure, and material thermal expansion) and accessories are packaged at an extremely affordable price. The system is very compact and fits...

Open the catalog to page 2
Linear Machine Calibrator - 3

The MCV-500 Machine Calibration System features environmental compensation sensors. These devices automatically adjust the collected data for air temperature, barometric pressure, and thermal expansion of the axis being calibrated. With the "Automatic Data Collection", the operator programs the table into position, the system automatically senses the table movement and data is collected after a user defined interval. > Av erage error plot from OPTODYNE's Metrology Software run in accordance with NMTBA standards. (VDI 3441. ISO and ASME B5.54 standards are also available) A typical data plot...

Open the catalog to page 3
Linear Machine Calibrator - 4

Configuration: > Single aperture laser head L-109 Processor module w/RS-232 Interface P-108D " Diameter Retro-reflector R-102 Metrology/Analysis Program W-500 90 degree beam bender LD-37S Magnetic Base LD-03 Adapter platform LD-14A 12 ft. cable set LD-21L Carrying case LD-20D Automatic Temperature Compensation IATCP Notebook Computer (not included) LTC Capability: Laser Stability 0.1 ppm System Accuracy 1.0 ppm Resolution 1 microinch (0.01 ݵm) Range 50 feet (15 meters) Slew Rate 144 ips (3.6 m/s) Power: > 90 to 230 VAC, 50 to 60 Hz size="-2">

Open the catalog to page 4
