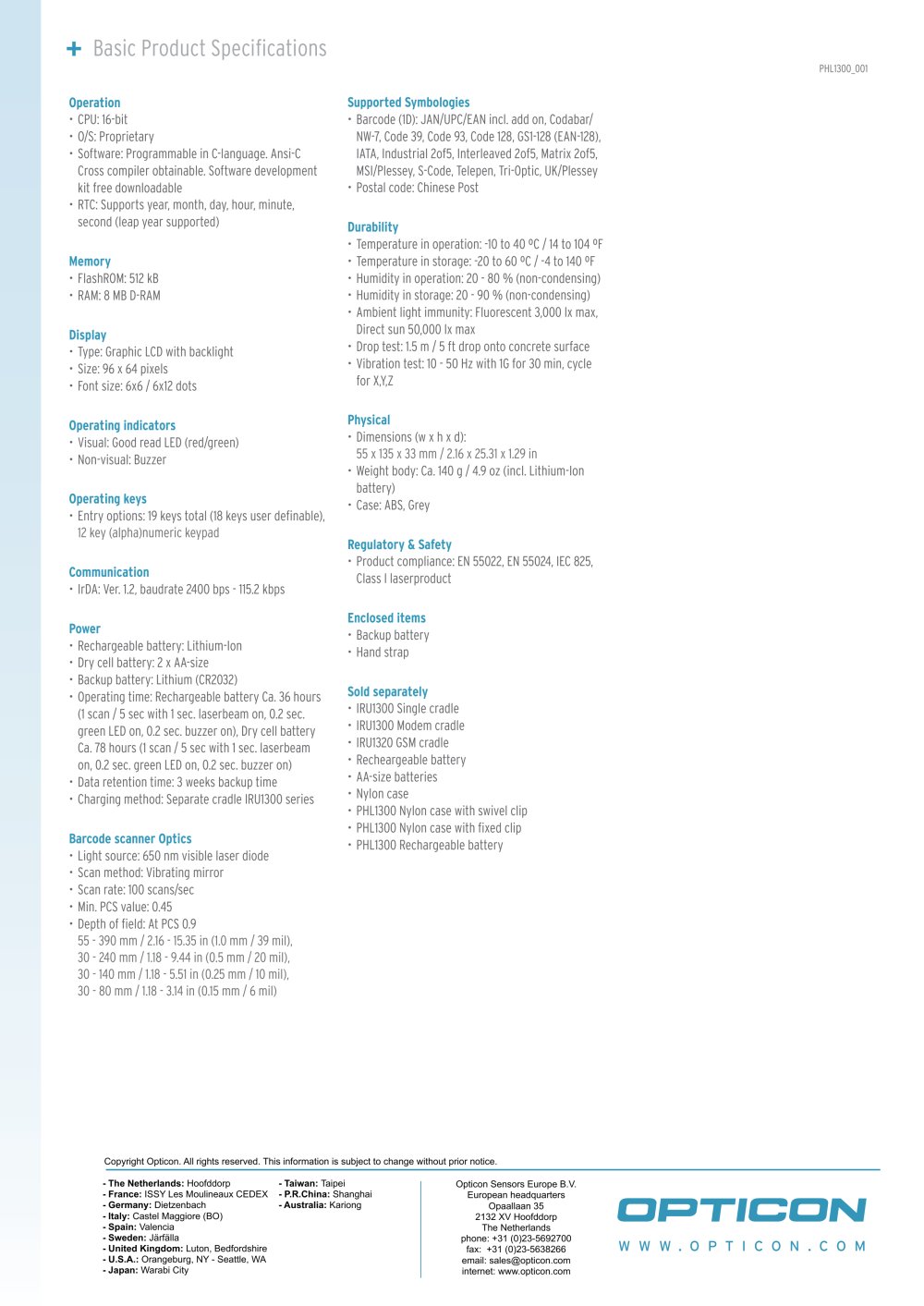

+ Basic Product Specifications

PHL1300_001

Operation

• CPU: 16-bit

• O/S: Proprietary

• Software: Programmable in C-language. Ansi-C Cross compiler obtainable. Software development kit free downloadable

• RTC: Supports year, month, day, hour, minute, second (leap year supported)

Memory

• FlashROM: 512 kB

• RAM: 8 MB D-RAM

Display

• Type: Graphic LCD with backlight

• Size: 96 x 64 pixels

• Font size: 6x6 / 6x12 dots

Operating indicators

• Visual: Good read LED (red/green)

• Non-visual: Buzzer

Operating keys

• Entry options: 19 keys total (18 keys user definable), 12 key (alpha)numeric keypad

Communication

• IrDA: Ver. 1.2, baudrate 2400 bps - 115.2 kbps Power

• Rechargeable battery: Lithium-Ion

• Dry cell battery: 2 x AA-size

• Backup battery: Lithium (CR2032)

• Operating time: Rechargeable battery Ca. 36 hours (1 scan / 5 sec with 1 sec. laserbeam on, 0.2 sec. green LED on, 0.2 sec. buzzer on), Dry cell battery Ca. 78 hours (1 scan / 5 sec with 1 sec. laserbeam on, 0.2 sec. green LED on, 0.2 sec. buzzer on)

• Data retention time: 3 weeks backup time

• Charging method: Separate cradle IRU1300 series

Barcode scanner Optics

• Light source: 650 nm visible laser diode

• Scan method: Vibrating mirror

• Scan rate: 100 scans/sec

• Min. PCS value: 0.45

• Depth of field: At PCS 0.9

55 - 390 mm / 2.16 - 15.35 in (1.0 mm / 39 mil), 30 - 240 mm / 1.18 - 9.44 in (0.5 mm / 20 mil), 30 - 140 mm / 1.18 - 5.51 in (0.25 mm / 10 mil), 30 - 80 mm / 1.18 - 3.14 in (0.15 mm / 6 mil)

Supported Symbologies

• Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 39, Code 93, Code 128, GS1-128 (EAN-128), IATA, Industrial 2of5, Interleaved 2of5, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey

• Postal code: Chinese Post

Durability

• Temperature in operation: -10 to 40 °C / 14 to 104 °F

• Temperature in storage: -20 to 60 °C / -4 to 140 °F

• Humidity in operation: 20 - 80 % (non-condensing)

• Humidity in storage: 20 - 90 % (non-condensing)

• Ambient light immunity: Fluorescent 3,000 lx max, Direct sun 50,000 lx max

• Drop test: 1.5 m / 5 ft drop onto concrete surface

• Vibration test: 10 - 50 Hz with 1G for 30 min, cycle for X,Y,Z

Physical

• Dimensions (w x h x d):

55 x 135 x 33 mm / 2.16 x 25.31 x 1.29 in

• Weight body: Ca. 140 g / 4.9 oz (incl. Lithium-Ion battery)

• Case: ABS, Grey

Regulatory & Safety

• Product compliance: EN 55022, EN 55024, IEC 825, Class I laserproduct

Enclosed items

• Backup battery

• Hand strap

Sold separately

• IRU1300 Single cradle

• IRU1300 Modem cradle

• IRU1320 GSM cradle

• Recheargeable battery

• AA-size batteries

• Nylon case

• PHL1300 Nylon case with swivel clip

• PHL1300 Nylon case with fixed clip

• PHL1300 Rechargeable battery
