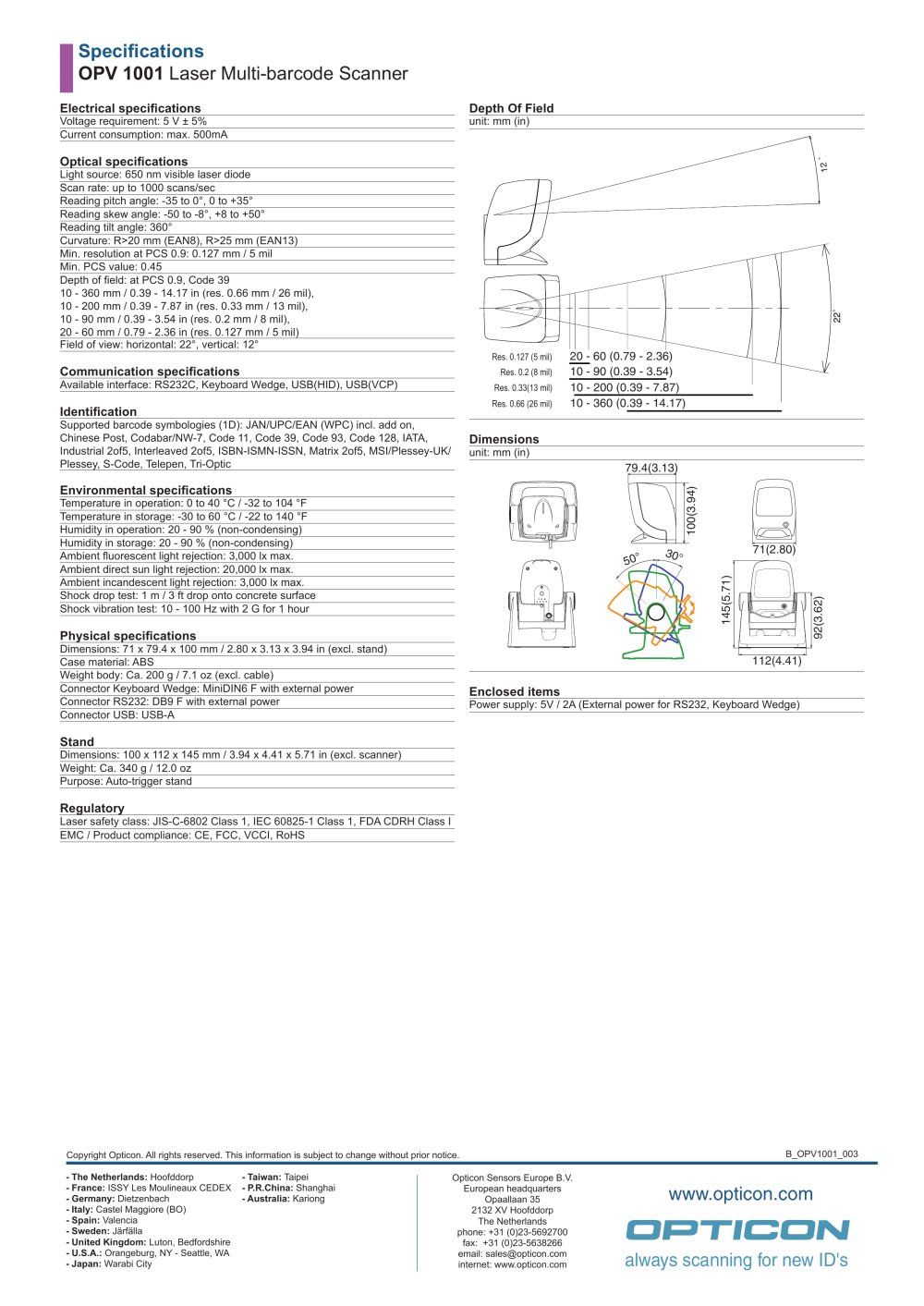

Specifications OPV 1001 Laser Multi-barcode Scanner

Electrical specifications Depth Of Field

Voltage requirement: 5 V ± 5%Current consumption: max. 500mA unit: mm (in)

Optical specifications

Light source: 650 nm visible laser diode Scan rate: up to 1000 scans/sec Reading pitch angle: -35 to 0°, 0 to +35° Reading skew angle: -50 to -8°, +8 to +50° Reading tilt angle: 360° Curvature: R>20 mm (EAN8), R>25 mm (EAN13) Min. resolution at PCS 0.9: 0.127 mm / 5 milMin. PCS value: 0.45Depth of field: at PCS 0.9, Code 3910 - 360 mm / 0.39 - 14.17 in (res. 0.66 mm / 26 mil), 10 - 200 mm / 0.39 - 7.87 in (res. 0.33 mm / 13 mil), 10 - 90 mm / 0.39 - 3.54 in (res. 0.2 mm / 8 mil), 20 - 60 mm / 0.79 - 2.36 in (res. 0.127 mm / 5 mil)Field of view: horizontal: 22°, vertical: 12°

12 Ëš 22Ëš Res. 0.127 (5 mil)Res. 0.2 (8 mil)Res. 0.33(13 mil)Res. 0.66 (26 mil)

Communication specifications

10 - 90 (0.39 - 3.54) 20 - 60 (0.79 - 2.36) 10 - 200 (0.39 - 7.87) 10 - 360 (0.39 - 14.17)

Available interface: RS232C, Keyboard Wedge, USB(HID), USB(VCP)

Identification

Supported barcode symbologies (1D): JAN/UPC/EAN (WPC) incl. add on, Chinese Post, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey-UK/ Plessey, S-Code, Telepen, Tri-Optic

Dimensions

unit: mm (in)

79.4(3.13)71(2.80)

Environmental specifications

Temperature in operation: 0 to 40 °C / -32 to 104 °FTemperature in storage: -30 to 60 °C / -22 to 140 °FHumidity in operation: 20 - 90 % (non-condensing) Humidity in storage: 20 - 90 % (non-condensing) Ambient fluorescent light rejection: 3,000 lx max. Ambient direct sun light rejection: 20,000 lx max. Ambient incandescent light rejection: 3,000 lx max. Shock drop test: 1 m / 3 ft drop onto concrete surface Shock vibration test: 10 - 100 Hz with 2 G for 1 hour

100(3.94)

30° 50°

145(5.71)

Physical specifications

92(3.62)

Dimensions: 71 x 79.4 x 100 mm / 2.80 x 3.13 x 3.94 in (excl. stand) Case material: ABS Weight body: Ca. 200 g / 7.1 oz (excl. cable) Connector Keyboard Wedge: MiniDIN6 F with external power Connector RS232: DB9 F with external power Connector USB: USB-A

112(4.41)

Enclosed items

Power supply: 5V / 2A (External power for RS232, Keyboard Wedge)

Stand

Dimensions: 100 x 112 x 145 mm / 3.94 x 4.41 x 5.71 in (excl. scanner) Weight: Ca. 340 g / 12.0 oz Purpose: Auto-trigger stand

Regulatory

Laser safety class: JIS-C-6802 Class 1, IEC 60825-1 Class 1, FDA CDRH Class IEMC / Product compliance: CE, FCC, VCCI, RoHS
