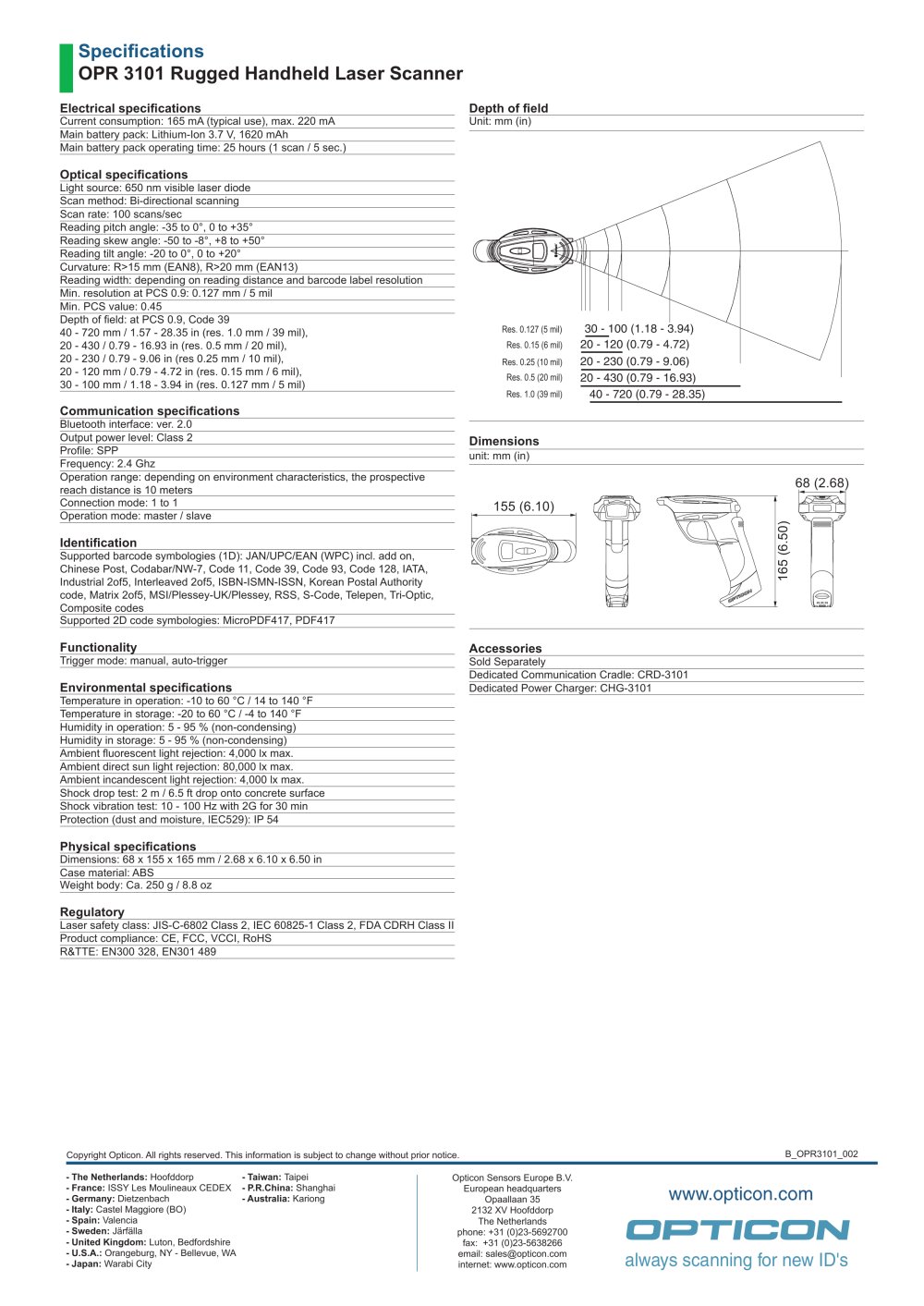

Specifications OPR 3101 Rugged Handheld Laser Scanner

Electrical specifications Depth of field

Current consumption: 165 mA (typical use), max. 220 mAMain battery pack: Lithium-Ion 3.7 V, 1620 mAh Main battery pack operating time: 25 hours (1 scan / 5 sec.) Unit: mm (in)

Optical specifications

Light source: 650 nm visible laser diode Scan method: Bi-directional scanning Scan rate: 100 scans/sec Reading pitch angle: -35 to 0°, 0 to +35° Reading skew angle: -50 to -8°, +8 to +50° Reading tilt angle: -20 to 0°, 0 to +20° Curvature: R>15 mm (EAN8), R>20 mm (EAN13) Reading width: depending on reading distance and barcode label resolution Min. resolution at PCS 0.9: 0.127 mm / 5 mil Min. PCS value: 0.45 Depth of field: at PCS 0.9, Code 3940 - 720 mm / 1.57 - 28.35 in (res. 1.0 mm / 39 mil), 20 - 430 / 0.79 - 16.93 in (res. 0.5 mm / 20 mil), 20 - 230 / 0.79 - 9.06 in (res 0.25 mm / 10 mil), 20 - 120 mm / 0.79 - 4.72 in (res. 0.15 mm / 6 mil), 30 - 100 mm / 1.18 - 3.94 in (res. 0.127 mm / 5 mil)

Res. 0.127 (5 mil)Res. 0.15 (6 mil)Res. 0.25 (10 mil)Res. 0.5 (20 mil)Res. 1.0 (39 mil)

30 - 100 (1.18 - 3.94)20 - 120 (0.79 - 4.72) 20 - 230 (0.79 - 9.06) 20 - 430 (0.79 - 16.93)40 - 720 (0.79 - 28.35)

Communication specifications

Bluetooth interface: ver. 2.0Output power level: Class 2 Profile: SPP Frequency: 2.4 Ghz Operation range: depending on environment characteristics, the prospective reach distance is 10 metersConnection mode: 1 to 1Operation mode: master / slave

Dimensions

unit: mm (in)

155 (6.10)68 (2.68)

Identification

Supported barcode symbologies (1D): JAN/UPC/EAN (WPC) incl. add on, Chinese Post, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Korean Postal Authority code, Matrix 2of5, MSI/Plessey-UK/Plessey, RSS, S-Code, Telepen, Tri-Optic, Composite codesSupported 2D code symbologies: MicroPDF417, PDF417

165 (6.50)

Functionality Accessories

Trigger mode: manual, auto-trigger Sold SeparatelyDedicated Communication Cradle: CRD-3101Dedicated Power Charger: CHG-3101

Environmental specifications

Temperature in operation: -10 to 60 °C / 14 to 140 °FTemperature in storage: -20 to 60 °C / -4 to 140 °F Humidity in operation: 5 - 95 % (non-condensing) Humidity in storage: 5 - 95 % (non-condensing) Ambient fluorescent light rejection: 4,000 lx max. Ambient direct sun light rejection: 80,000 lx max. Ambient incandescent light rejection: 4,000 lx max. Shock drop test: 2 m / 6.5 ft drop onto concrete surface Shock vibration test: 10 - 100 Hz with 2G for 30 min Protection (dust and moisture, IEC529): IP 54

Physical specifications

Dimensions: 68 x 155 x 165 mm / 2.68 x 6.10 x 6.50 in Case material: ABSWeight body: Ca. 250 g / 8.8 oz

Regulatory

Laser safety class: JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class IIProduct compliance: CE, FCC, VCCI, RoHS R&TTE: EN300 328, EN301 489
