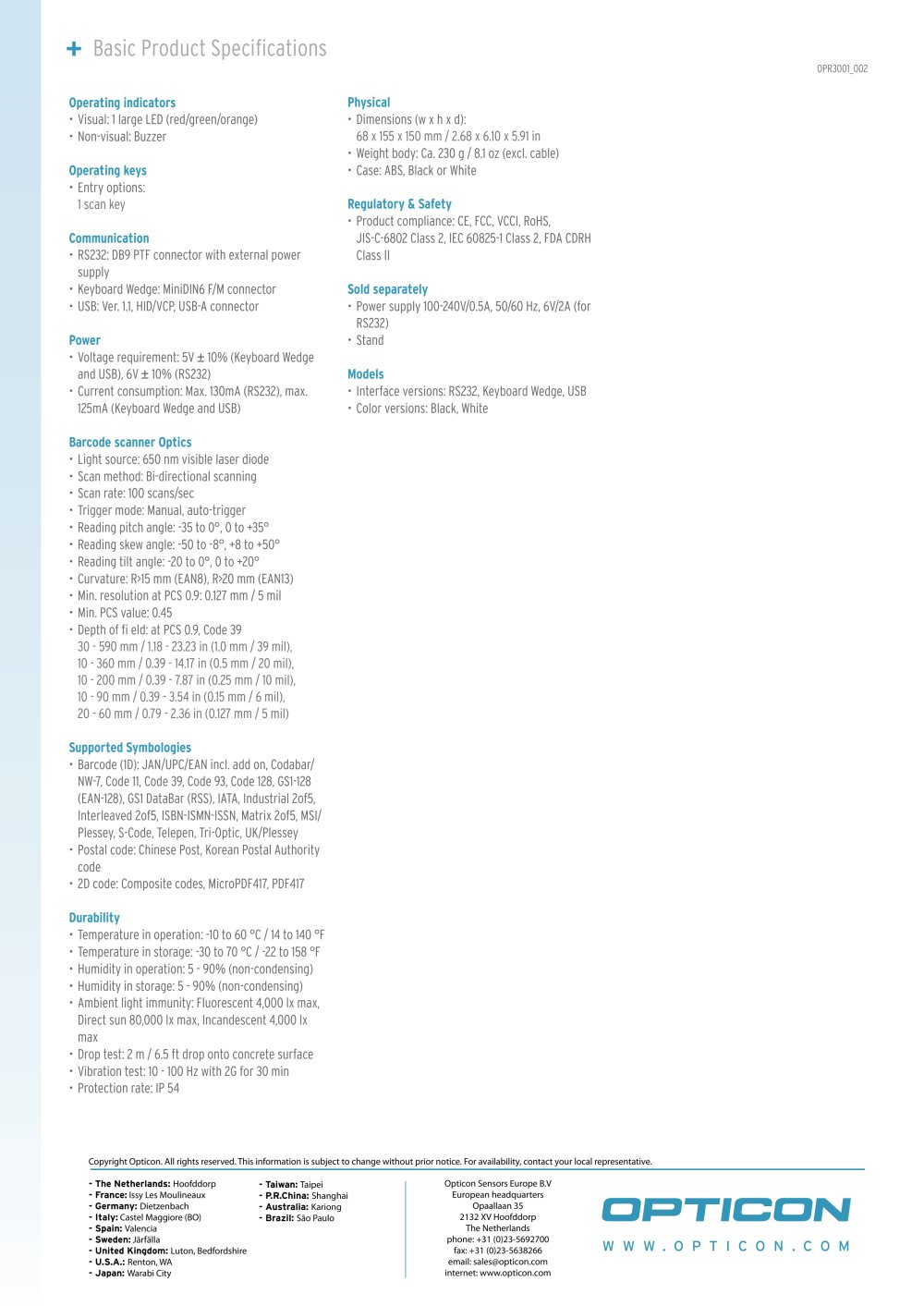

Specifications OPR 3001 Rugged Handheld Laser Scanner

Electrical specifications Depth of field

Voltage requirement: 5 V ± 10 % (Keyboard Wedge and USB), 6 V ± 10 % (RS232)Current consumption: max. 130 mA (RS232), max. 125 mA (Keyboard Wedge and USB) Unit: mm (in)

Optical specifications

Light source: 650 nm visible laser diodeScan method: Bi-directional scanning Scan rate: 100 scans/sec Reading pitch angle: -35 to 0°, 0 to +35° Reading skew angle: -50 to -8°, +8 to +50° Reading tilt angle: -20 to 0°, 0 to +20° Curvature: R>15 mm (EAN8), R>20 mm (EAN13) Reading width: depending on reading distance and barcode label resolution Min. resolution at PCS 0.9: 0.127 mm / 5 milMin. PCS value: 0.45Depth of field: at PCS 0.9, Code 3930 - 590 mm / 1.18 - 23.23 in (res. 1.0 / 39 mil), 10 - 360 mm / 0.39 - 14.17 in (res. 0.5 / 20 mil), 10 - 200 mm / 0.39 - 7.87 in (res. 0.25 / 10 mil), 10 - 90 mm / 0.39 - 3.54 in (res. 0.15 / 6 mil), 20 - 60 mm / 0.79 - 2.36 in (res. 0.127 / 5 mil)

Res. 0.127 (5 mil)Res. 0.15 (6 mil)Res. 0.25 (10 mil)Res. 0.5 (20 mil)Res. 1.0 (39 mil)

20 - 60 (0.79 - 2.36) 10 - 90 (0.39 - 3.54) 10 - 200 (0.39 - 7.87) 10 - 360 (0.39 - 14.17) 30 - 590 (1.18 - 23.23)

Communication specifications

Available interfaces: Keyboard Wedge, RS232C, USB(HID/VCP)

Dimensions

Unit: mm (in)

Identification

Supported barcode symbologies (1D): EAN/JAN/UPC incl. add on, Chinese Post, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Korean Postal Authority code, Matrix 2of5, MSI/Plessey-UK/Plessey, RSS, S-Code, Telepen, Tri-Optic, Composite CodesSupported 2D code symbologies: MicroPDF417, PDF417

150(5.91)

68(2.68) 155(6.10)

Functionality

Trigger mode: manual, auto-trigger

Environmental specifications

Temperature in operation: -10 to 60 °C / 14 to 140 °FTemperature in storage: -30 to 70 °C / -22 to 158 °F Humidity in operation: 5 - 90 % (non-condensing) Humidity in storage: 5 - 90 % (non-condensing) Ambient fluorescent light rejection: 4,000 lx max. Ambient direct sun light rejection: 80,000 lx max. Ambient incandescent light rejection: 4,000 lx max. Shock drop test: 2 m / 6.5 ft drop onto concrete surface Shock vibration test: 10 - 100 Hz with 2G for 30 min Protection (dust and moisture, IEC529): IP 54

Accessories

Sold separatelyPower supply: 6V (External power for RS232)

Physical specifications

Dimensions: 68 x 50 x 155 mm / 2.68 x 5.91 x 6.10 in Case material: ABS Weight body: Ca. 230 g / 8.1 oz Connector Keyboard Wedge: MiniDIN6 F/MConnector RS232: DB9 with external powerConnector USB: USB-A

Regulatory

Laser safety class: JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II EMC / Product compliance: CE, FCC, VCCI, RoHS
