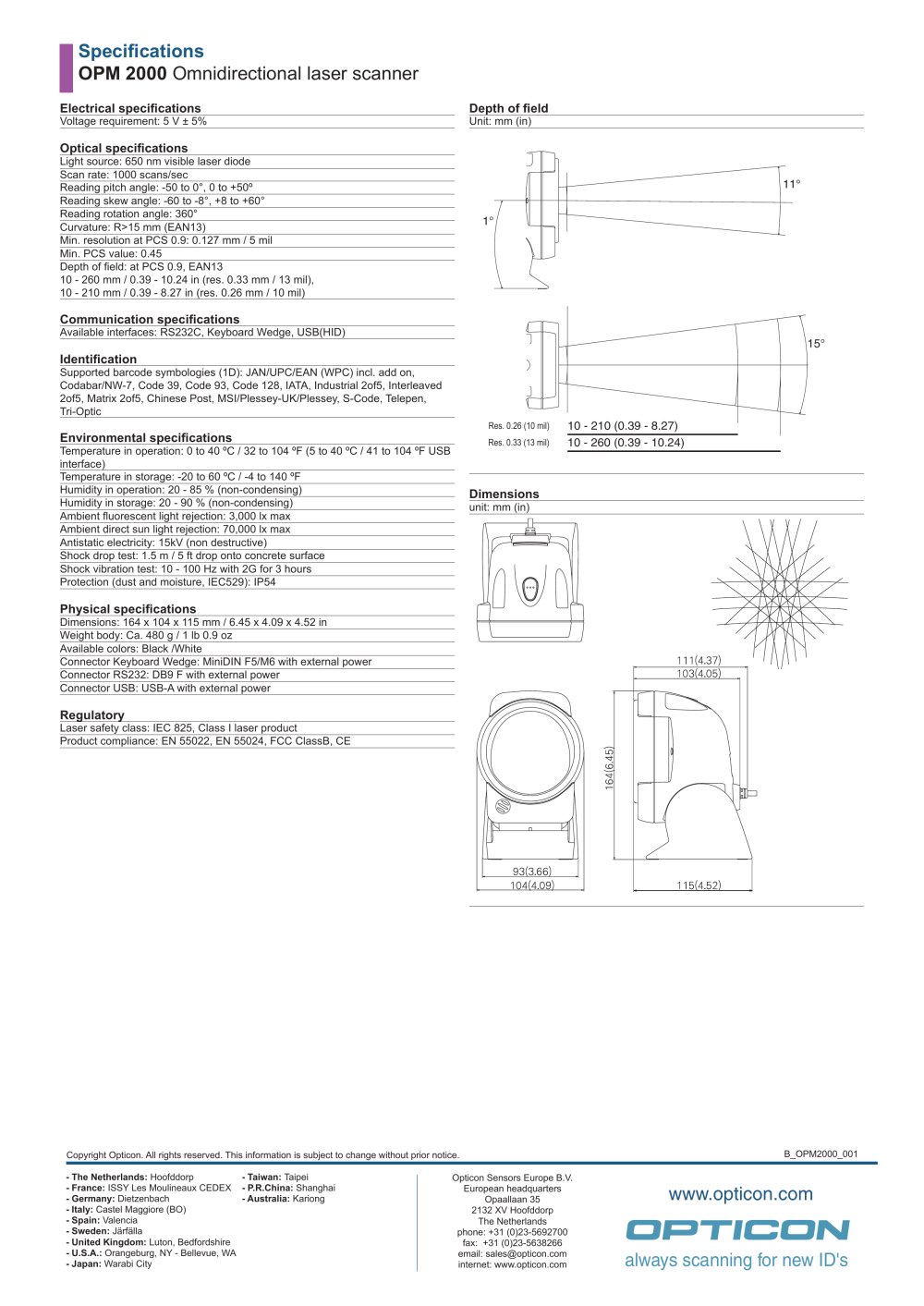

Specifications OPM 2000 Omnidirectional laser scanner

Electrical specifications Depth of field

Voltage requirement: 5 V ± 5% Unit: mm (in)

Optical specifications

Light source: 650 nm visible laser diodeScan rate: 1000 scans/secReading pitch angle: -50 to 0°, 0 to +50ºReading skew angle: -60 to -8°, +8 to +60° Reading rotation angle: 360° Curvature: R>15 mm (EAN13) Min. resolution at PCS 0.9: 0.127 mm / 5 milMin. PCS value: 0.45Depth of field: at PCS 0.9, EAN1310 - 2

11°

6 0 mm / 0.39 - 10.24 in (res. 0.33 mm / 13 mil),10 - 2 1 0 mm / 0.39 - 8.27 in (res. 0.26 mm / 10 mil)

1°

Communication specifications

Available i nterface s : RS232C, Keyboard Wedge, USB(HID)

15°

Identification

Supported barcode symbologies (1D): JAN/UPC/EAN (WPC) incl. add on, Codabar/NW-7, Code 39, Code 93, Code 128, IATA, Industrial 2of5, Interleaved 2of5, Matrix 2of5, Chinese Post, MSI/Plessey-UK/Plessey, S-Code, Telepen, Tri-Optic

Res. 0.26 (10 mil)Res. 0.33 (13 mil)

10 - 210 (0.39 - 8.27)10 - 260 (0.39 - 10.24)

Environmental specifications

Temperature in operation: 0 to 40 ºC / 32 to 104 ºF (5 to 40 ºC / 41 to 104 ºF USB interface)Temperature in storage: -20 to 60 ºC / -4 to 140 ºFHumidity in operation: 20 - 85 % (non-condensing) Humidity in storage: 20 - 90 % (non-condensing) Ambient fluorescent light rejection: 3,000 lx max Ambient direct sun light rejection: 70,000 lx maxAntistatic electricity: 15kV (non destructive)Shock drop test: 1.5 m / 5 ft drop onto concrete surface Shock vibration test: 10 - 100 Hz with 2G for 3 hours Protection (dust and moisture, IEC529): IP54

Dimensions

unit: mm (in)

Physical specifications

Dimensions: 164 x 104 x 115 mm / 6.45 x 4.09 x 4.52 in Weight body: Ca. 480 g / 1 lb 0.9 oz Available colors: Black /White Connector Keyboard Wedge: MiniDIN F5/M6 with external power Connector RS232: DB9 F with external power Connector USB: USB-A with external power

Regulatory

Laser safety class: IEC 825, Class I laser productProduct compliance: EN 55022, EN 55024, FCC ClassB, CE
