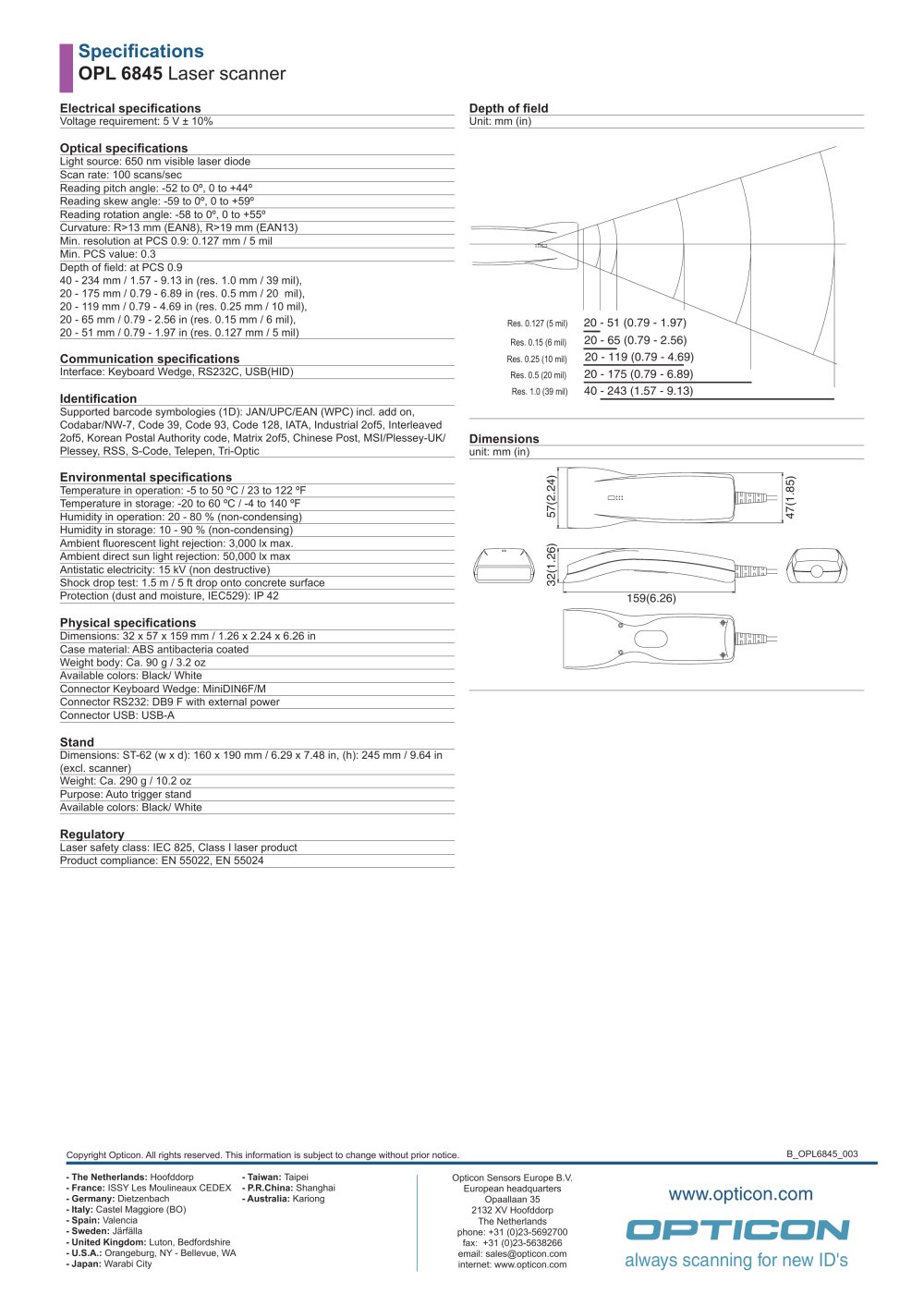

Specifications OPL 6845 Laser scanner

119 mm / 0.79 - 4.69 in (res. 0.25 mm / 10 mil),20 - 65 mm / 0.79 - 2.56 in (res. 0.15 mm / 6 mil), 20 - 51 mm / 0.79 - 1.97 in (res. 0.127 mm / 5 mil)

Electrical specifications Depth of field

Voltage requirement: 5 V ± 10% Unit: mm (in)

Optical specifications

Light source: 650 nm visible laser diodeScan rate: 100 scans/secReading pitch angle: -52 to 0º, 0 to +44º Reading skew angle: -59 to 0º, 0 to +59º Reading rotation angle: -58 to 0º, 0 to +55º Curvature: R>13 mm (EAN8), R>19 mm (EAN13) Min. resolution at PCS 0.9: 0.127 mm / 5 mil Min. PCS value: 0.3 Depth of field: at PCS 0.940 - 234 mm / 1.57 - 9.13 in (res. 1.0 mm / 39 mil), 20 - 175 mm / 0.79 - 6.89 in (res. 0.5 mm / 20 mil), 20 -

Res. 0.127 (5 mil)Res. 0.15 (6 mil)Res. 0.25 (10 mil)Res. 0.5 (20 mil)Res. 1.0 (39 mil)

20 - 51 (0.79 - 1.97)20 - 65 (0.79 - 2.56)20 - 119 (0.79 - 4.69) 20 - 175 (0.79 - 6.89)40 - 243 (1.57 - 9.13)

Communication specifications

Interface: Keyboard Wedge, RS232C, USB(HID)

Identification

Supported barcode symbologies (1D): JAN/UPC/EAN (WPC) incl. add on, Codabar/NW-7, Code 39, Code 93, Code 128, IATA, Industrial 2of5, Interleaved 2of5, Korean Postal Authority code, Matrix 2of5, Chinese Post, MSI/Plessey-UK/ Plessey, RSS, S-Code, Telepen, Tri-Optic 42

Dimensions

unit: mm (in)

Environmental specifications

Temperature in operation: -5 to 50 ºC / 23 to 122 ºFTemperature in storage: -20 to 60 ºC / -4 to 140 ºFHumidity in operation: 20 - 80 % (non-condensing) Humidity in storage: 10 - 90 % (non-condensing) Ambient fluorescent light rejection: 3,000 lx max. Ambient direct sun light rejection: 50,000 lx max Antistatic electricity: 15 kV (non destructive) Shock drop test: 1.5 m / 5 ft drop onto concrete surface Protection (dust and moisture, IEC529): IP

47(1.85) 32(1.26)57(2.24)

159(6.26)

Physical specifications

Dimensions: 32 x 57 x 159 mm / 1.26 x 2.24 x 6.26 inCase material: ABS antibacteria coated Weight body: Ca. 90 g / 3.2 oz Available colors: Black/ White Connector Keyboard Wedge: MiniDIN6F/M Connector RS232: DB9 F with external power Connector USB: USB-A

Stand

Dimensions: ST-62 (w x d): 160 x 190 mm / 6.29 x 7.48 in, (h): 245 mm / 9.64 in (excl. scanner)Weight: Ca. 290 g / 10.2 ozPurpose: Auto trigger stand Available colors: Black/ White

Regulatory

Laser safety class: IEC 825, Class I laser product Product compliance: EN 55022, EN 55024
