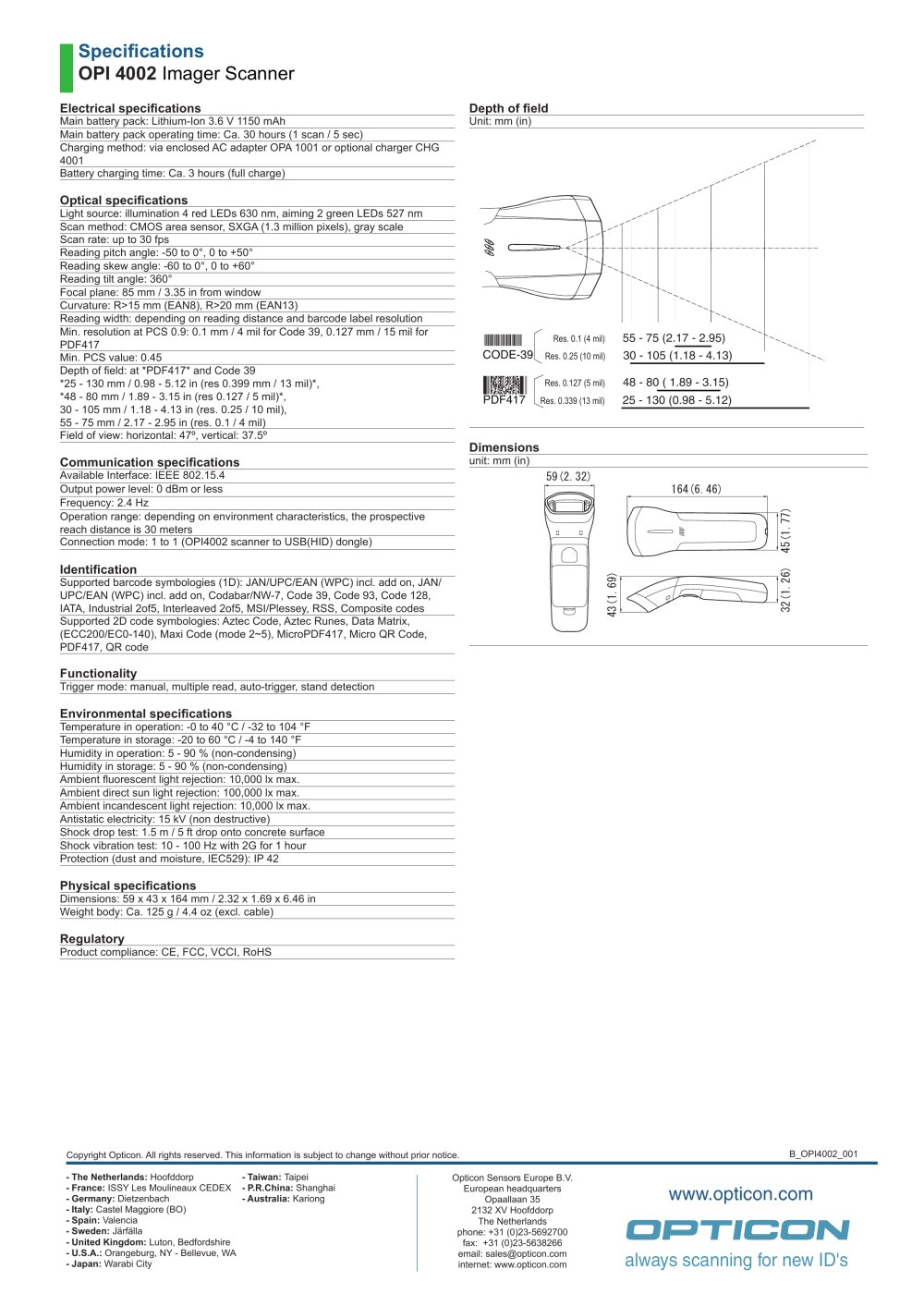

| I Specifications OPI 4002 Imager Scanner Electrical specifications_ Depth of field Main battery pack: Lithium-Ion 3.6 V 1150 mAh_ Unit: mm (in) Main battery pack operating time: Ca. 30 hours (1 scan / 5 sec)_ Charging method: via enclosed AC adapter OPA 1001 or optional charger CHG 4001_ Battery charging time: Ca. 3 hours (full charge)_ Optical specifications_ Light source: illumination 4 red LEDs 630 nm, aiming 2 green LEDs 527 nm Scan method: CMOS area sensor, SXGA (1.3 million pixels), gray scale_ Scan rate: up to 30 fps_ Reading pitch angle: -50 to 0°, 0 to +50°_ Reading skew angle: -60 to 0°, 0 to +60°_ Reading tilt angle: 360°_ Focal plane: 85 mm / 3.35 in from window_ Curvature: R>15 mm (EAN8), R>20 mm (EAN13) Reading width: depending on reading distance and barcode label resolution Min. resolution at PCS 0.9: 0.1 mm / 4 mil for Code 39, 0.127 mm / 15 mil for PDF417_ Min. PCS value: 0.45_ Depth of field: at *PDF417* and Code 39 *25 - 130 mm / 0.98 - 5.12 in (res 0.399 mm / 13 mil)*, *48 - 80 mm / 1.89 - 3.15 in (res 0.127 / 5 mil)*, 30 - 105 mm / 1.18 - 4.13 in (res. 0.25 / 10 mil), 55 - 75 mm / 2.17 - 2.95 in (res. 0.1 / 4 mil)_ Field of view: horizontal: 47°, vertical: 37.5°_ | ||||||||||||||||||||||
| Communication specifications_ Available Interface: IEEE 802.15.4_ Output power level: 0 dBm or less_ Frequency: 2.4 Hz Operation range: depending on environment characteristics, the prospective reach distance is 30 meters_ Connection mode: 1 to 1 (OPI4002 scanner to USB(HID) dongle)_ | ||||||||||||||||||||||
| Identification_ Supported barcode symbologles (1D): JAN/UPC/EAN (WPC) incl. add on, JAN/ UPC/EAN (WPC) incl. add on, Codabar/NW-7, Code 39, Code 93, Code 128, IATA, Industrial 2of5, Interleaved 2of5, MSI/Plessey, RSS, Composite codes Supported 2D code symbologies: Aztec Code, Aztec Runes, Data Matrix, (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code_ | ||||||||||||||||||||||
| Functionality_ Trigger mode: manual, multiple read, auto-trigger, stand detection Environmental specifications_ Temperature in operation: -0 to 40 °C / -32 to 104 °F_ Temperature in storage: -20 to 60 °C / -4 to 140 °F_ Humidity in operation: 5 - 90 % (non-condensing)_ Humidity in storage: 5 - 90 % (non-condensing)_ Ambient fluorescent light rejection: 10,000 Ix max._ Ambient direct sun light rejection: 100,000 Ix max._ Ambient incandescent light rejection: 10,000 lx max._ Antistatic electricity: 15 kV (non destructive)_ Shock drop test: 1.5 m / 5 ft drop onto concrete surface_ Shock vibration test: 10 - 100 Hz with 2G for 1 hour_ Protection (dust and moisture, IEC529): IP 42_ Physical specifications_ Dimensions: 59 x 43 x 164 mm / 2.32 x 1.69 x 6.46 in_ Weight body: Ca. 125 g / 4.4 oz (excl. cable)_ Regulatory_ Product compliance: CE, FCC, VCCI, RoHS_ | ||||||||||||||||||||||
| B_OPI4002_001 | ||||||||||||||||||||||
