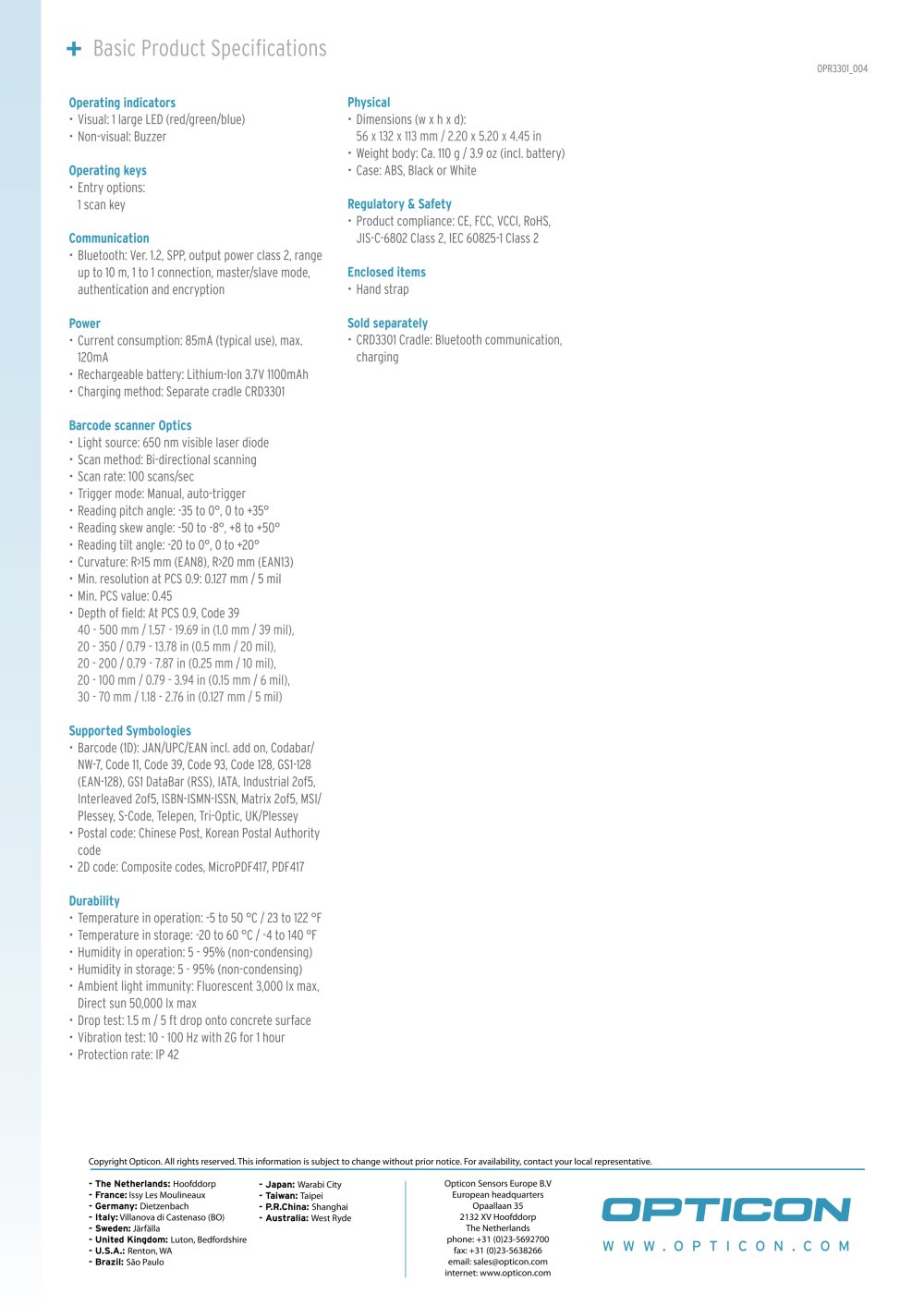

| + Basic Product Specifications | ||||||||||||||||||||
| 0PR3101_001 | ||||||||||||||||||||
| Operating indicators Visual: large LED (red/green/blauw) Non-visual: Buzzer Operating keys Entry options: 1 scan key Communication Bluetooth: Ver. 1.2, SP, output power class 2, range up to 10 m, master/slave mode, authentication and encryption Power Current consumption: 165 mA (typical use), max. 220 mA Rechargeable battery: Lithium-Ion 3.7 V, 1620 mAh Operating time: Ca. 25 hours (1 scan / 5 sec) Charging method: Separate cradle CHG3101 or CRD3101 Barcode scanner Optics Light source: 650 nm visible laser diode Scan method: Bi-directional scanning Scan rate: 100 scans/sec Trigger mode: Manual, auto-trigger Reading pitch angle: -35 to 0°, 0 to +35° Reading skew angle: -50 to -8°, +8 to +50° Reading tilt angle: -20 to 0°, 0 to +20° Curvature: R>15 mm (EAN8), R>20 mm (EAN13) Min. resolution at PCS 0.9: 0.127 mm / 5 mil Min. PCS value: 0.45 Depth of field: At PCS 0.9, Code 39 40 - 720 mm / 1.57 - 28.35 in (1.0 mm / 39 mil), 20 - 430 / 0.79 - 16.93 in (0.5 mm / 20 mil), 20 - 230 / 0.79 - 9.06 in (res 0.25 mm / 10 mil), 20 - 120 mm / 0.79 - 4.72 in (0.15 mm / 6 mil), 30 - 100 mm / 1.18 - 3.94 in (0.127 mm / 5 mil) Supported Symbologies Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey Postal code: Chinese Post, Korean Postal Authority code 2D code: Composite codes, MicroPDF417, PDF417 | Durability Temperature in operation: -10 to 60 °C / 14 to 140 °F Temperature in storage: -20 to 60 °C / -4 to 140 °F Humidity in operation: 5 - 95 % (non-condensing) Humidity in storage: 5 - 95 % (non-condensing) Ambient light immunity: Fluorescent 4,000 Ix max, Direct sun 80,000 Ix max, Incandescent 4,000 Ix max Drop test: 2 m / 6.5 ft drop onto concrete surface Vibration test: 10 - 100 Hz with 2G for 30 min Protection rate: IP 54 Physical Dimensions (w x h x d): 68 x 165 x 155 mm / 2.68 x 6.50 x 6.10 in Weight body: Ca. 290 g / 10.2 oz (incl. battery) Case: ABS, Black or White Regulatory & Safety Product compliance: CE, FCC, VCCI, RoHS, EN300 328, EN301 489 , JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II Sold separately CHG3101 Charging cradle CRD3101 Charging and communication cradle | |||||||||||||||||||
| Copyright Opticon. All rights reserved. This information is subject to change without prior notice. | ||||||||||||||||||||
| - The Netherlands: Hoofddorp - France: ISSY Les Moulineaux CEDEX - Germany: Dietzenbach - Italy: Castel Maggiore (BO) - Spain: Valencia - Sweden: Jδrfδlla - United Kingdom: Luton, Bedfordshire - U.S.A.: Orangeburg, NY - Seattle, WA - Japan: Warabi City | - Taiwan: Taipei - P.R.China: Shanghai - Australia: Kariong | |||||||||||||||||||
| Opticon Sensors Europe B.V. European headquarters Opaallaan 35 2132 XV Hoofddorp The Netherlands phone: +31 (0)23-5692700 fax: +31 (0)23-5638266 email: sales@opticon.com internet: www.opticon.com | ||||||||||||||||||||
